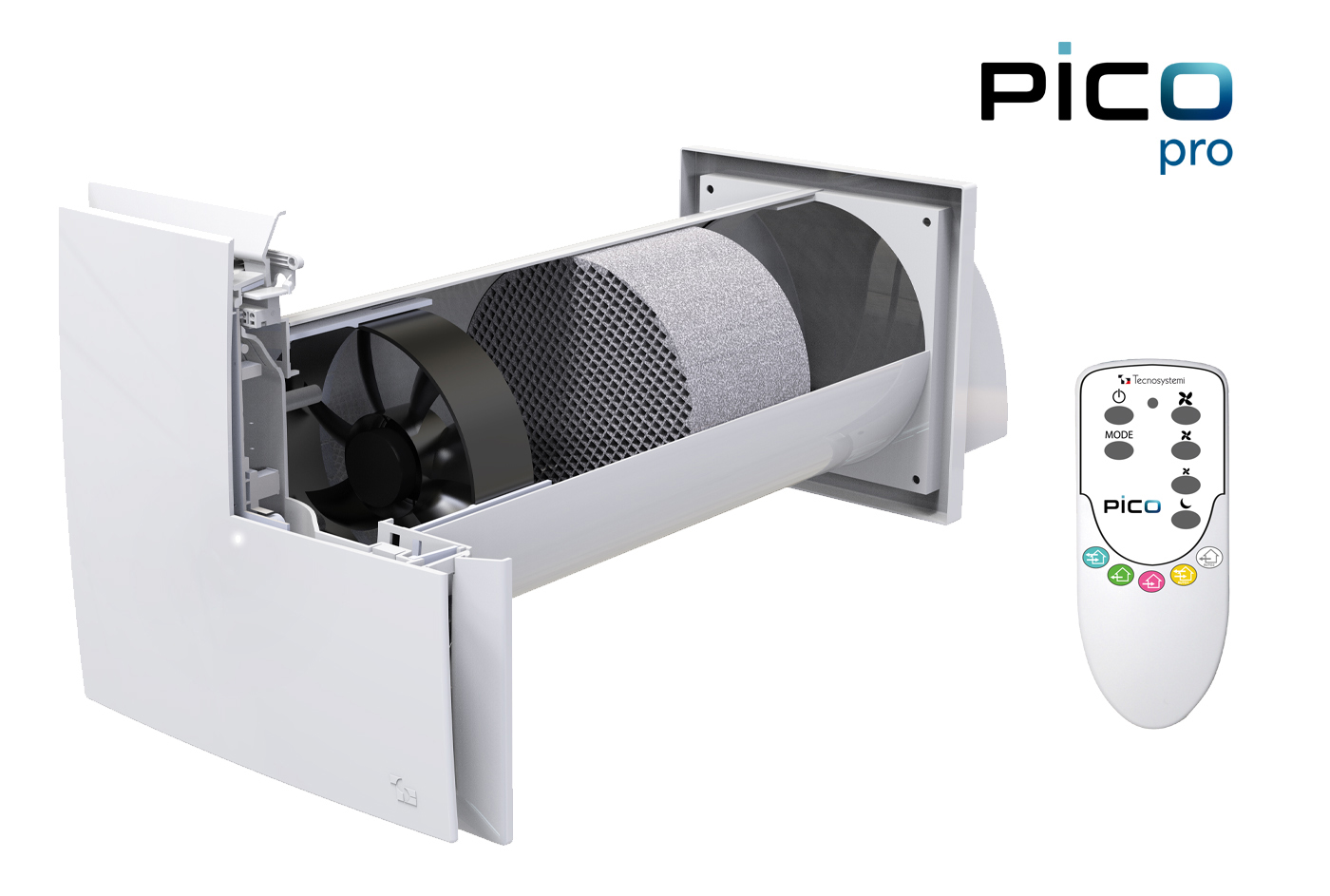

PICO PRO Ventilation units with wall-mounted puntual heat recovery

Apply.co
Air treatment - MVHR

PICO PRO is an innovative system designed to improve thermal comfort and air quality in residential environments.
PICO PRO is able to operate in both directions, which means that it can be used to ventilate and recover the heat of the environment according to the need. This allows you to maintain a comfortable microclimate in any season.
Energy Saving: This system is designed to maximize energy saving, thus reducing the costs associated with heating and cooling of indoor spaces. Thanks to its efficient operation, it contributes to reducing environmental impact.
Ventilazione Ottimizzata: PICO PRO garantisce una ventilazione efficace e un adeguato rinnovo d’aria all’interno dei locali, migliorando la qualità dell’aria e contribuendo al benessere degli occupanti.
High Efficiency: The vacuum extractor integrated in PICO PRO offers a high performance, with the extraction capacity that can reach up to 90%. This is made possible by the presence of a honeycomb heat exchanger made of ceramic material, which maximizes thermal efficiency.
Easy Installation and Maintenance: PICO PRO is designed to be installed with ease and requires simple maintenance. This simplifies the system management, reducing maintenance costs over time.

Energy Class

TECHNICAL SPECIFICATIONS:

• Wall-mounted installation only, minimum wall thickness: 270 mm
• Front wall thickness 35 mm
• Available with flow rates from 30 to 60 m³/h
• Energy Class A
• Wi-fi control mode 2.4 GHz via APP: local or remote connection
• Integration Voice assistants and Google Home
• Functions: Heat Recovery – Exhaust – Supply – Humidity Threshold – Natural Recirculation – Night Mode
• Air quality indicators
• MASTER function / SLAVE: Possibility to connect in cascade via WIFI up to 4 slaves
• Slaves configurable in synchronous or asynchronous mode.
• Humidity threshold can be set to 3 different values: 40 – 50 – 60%
• Heat exchanger made of high-efficiency ceramic
• Built-in grade G2 filters
• Fan with low energy consumption, suitable for continuous operation
• RGB LED on front for mode display
• 4 speeds — min, medium, max and night mode — preset from the remote control and adjustable via the app
• Power supply 230 V – 50/60 Hz
• Electrical insulation Class II
• IP rating: IP22, IPX4 on the external side
• Mounting Hole Sections Ø103 – Ø128 – Ø153
• Automatic closing damper
• Ambient operating temperature: -10°C / +40°C (-10T40)
• Remote control included
