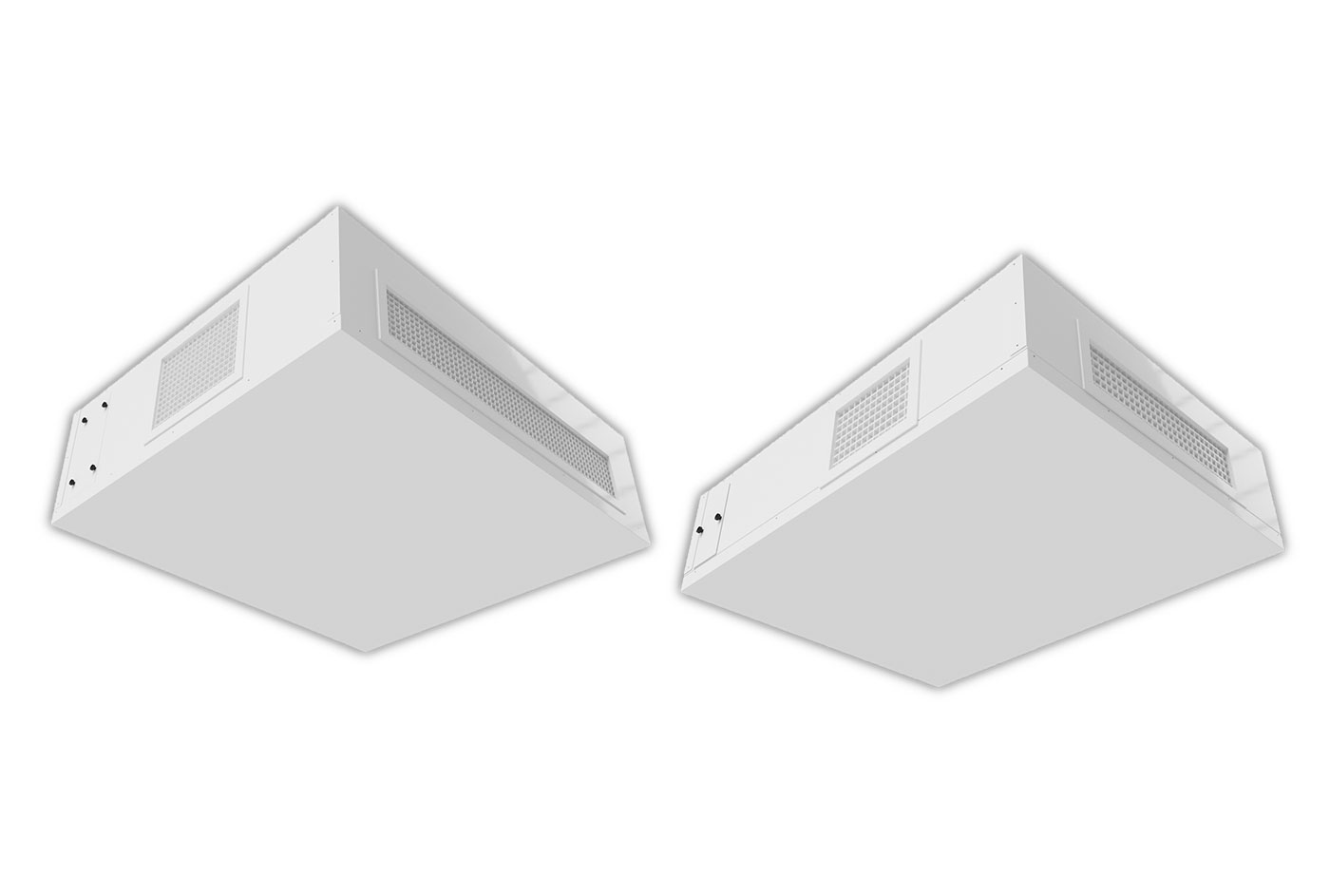

TOTAL CLASS 300/800 Sensible heat recovery unit with horizontal structure

Apply.co
Air treatment - MVHR

Non-ducted ventilation unit for ceiling or wall installation; heat recovery unit with 90% efficiency and low consumption EC centrifugal fans and integrated by-pass for freecooling/freeheating.
Self-supporting structure in pre-painted metal sheet

TECHNICAL SPECIFICATIONS:

• Non-ducted ventilation unit
• Evo 300 maximum flow capacity 400 m3/h
• Evo 800 maximum flow capacity 1000 m3/h
• Polypropylene counter-flow heat recovery unit with >90% efficiency
• EC centrifugal fans, backward curved blades, low consumption
• Low pressure drop filters F7 (ePM1 70%) for renewal and exhaust air
• Self-supporting structure in pre-painted metal sheet
• Rock wool thermal/acoustic insulation th. 50 mm
• Integrated by pass for free-cooling / free-heating (motorised drive with automatic control)
• Available with Evo and Evo Plus control
• Integrated frost protection
• Operating conditions: ambient temperature between 0°C and 45°C, humidity <80%
• Sensible heat exchanger
