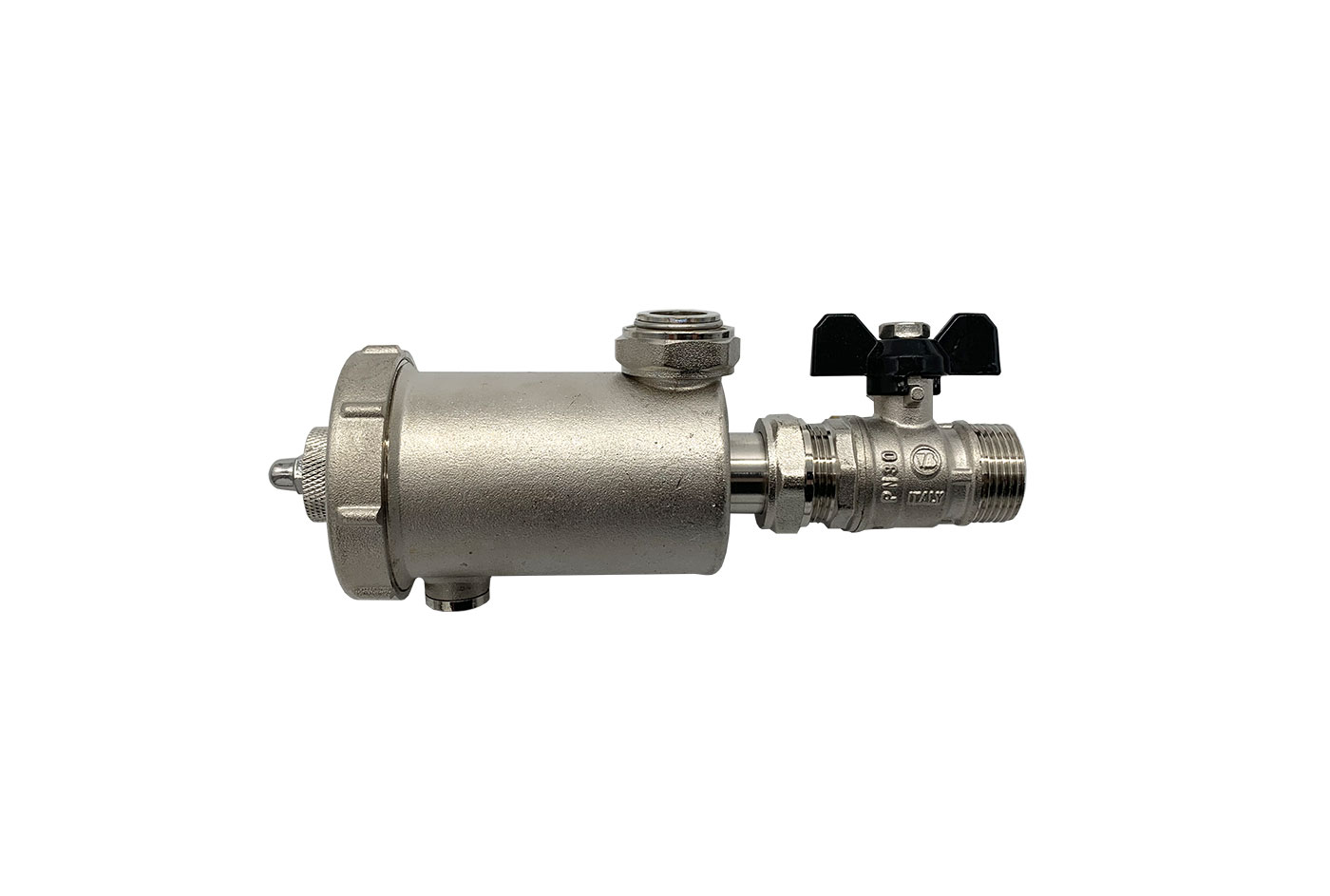

DMO Magnetic sludge separator for boilers

Showgas

The DMO sludge separator is equipped with an internal network with a double degree of filtration (300 and 800 m) and is able to retain circulating ferrous and non-ferrous particles.
Any impurities, through an obligatory path, are collected inside the filter cartridge, while the ferrous ones are attracted by the magnet.

TECHNICAL SPECIFICATIONS:

• Body, fittings, nickel-plated brass valve
• Stainless steel spring
• Fibreglass nylon sealing ring
• 3/4” inlet and outlet
• Maximum flow rate 1300 l/h
• Maximum pressure 10 bar
• 0.2 bar pressure drop
• Filtration degree 300-800 µm
• Neodymium magnet 12800 G
• Horizontal installation
