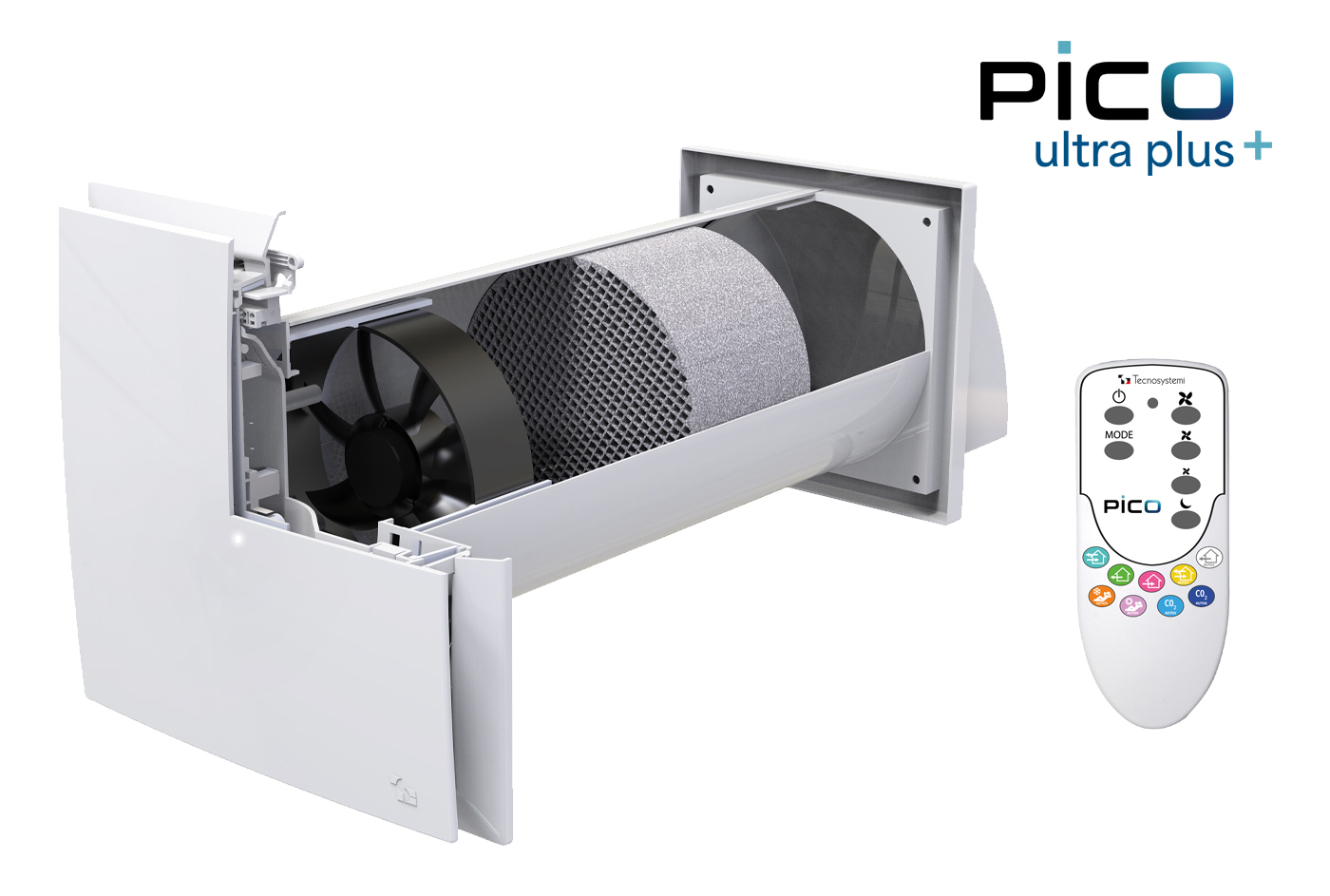

PICO ULTRA PLUS + Wall-mounted spot ventilation unit with heat recovery and timer programming

Apply.co
Air treatment - MVHR

PICO ULTRA PLUS + is an innovative system designed to improve thermal comfort and indoor air quality in residential environments.
PICO ULTRA PLUS + operates in both airflow directions, allowing it to provide ventilation and heat recovery according to the room’s requirements. This helps maintain a comfortable indoor climate throughout the year.
Energy Saving: This system is designed to maximize energy saving, thus reducing the costs associated with heating and cooling of indoor spaces. Thanks to its efficient operation, it contributes to reducing environmental impact.
Optimized Ventilation: PICO ULTRA PLUS + ensures effective ventilation and proper air renewal within indoor spaces, improving indoor air quality and contributing to the well-being of occupants.
High Efficiency: The integrated exhaust fan in PICO ULTRA PLUS + delivers outstanding performance, achieving heat recovery efficiency of up to 90%. This is made possible by a ceramic honeycomb heat exchanger, which maximizes thermal efficiency.
Easy Installation and Maintenance: PICO ULTRA PLUS + is designed for quick and easy installation and requires simple maintenance. This simplifies system management and reduces maintenance costs over time.

Energy Class

TECHNICAL SPECIFICATIONS:

• Wall-mounted installation only, minimum wall thickness: 270 mm
• Front wall thickness 35 mm
• Available with flow rates from 30 to 60 m³/h
• Energy Class A
• Wi-fi control mode 2.4 GHz via APP: local or remote connection
• Integration Voice assistants and Google Home
• Comfort – CO₂ Threshold – Heat Recovery – Extraction – Supply – Humidity Threshold – Natural Recirculation – Free Cooling – Free Heating – Night Mode – Hourly and Weekly Programming
• Air quality indicators
• MASTER function / SLAVE: Possibility to connect in cascade via WIFI up to 4 slaves
• Slaves configurable in synchronous or asynchronous mode.
• Humidity threshold can be set to 3 different values: 40 – 50 – 60%
• Heat exchanger made of high-efficiency ceramic
• Built-in grade G2 filters
• Fan with low energy consumption, suitable for continuous operation
• Front RGB LED for settings display
• 4 speeds — min, medium, max and night mode — preset from the remote control and adjustable via the app
• Power supply 230 V – 50/60 Hz
• Electrical insulation Class II
• IP rating: IP22, IPX4 on the external side
• Mounting Hole Sections Ø103 – Ø128 – Ø153
• Automatic closing damper
• Ambient operating temperature: -10°C / +40°C (-10T40)
• Remote control included
