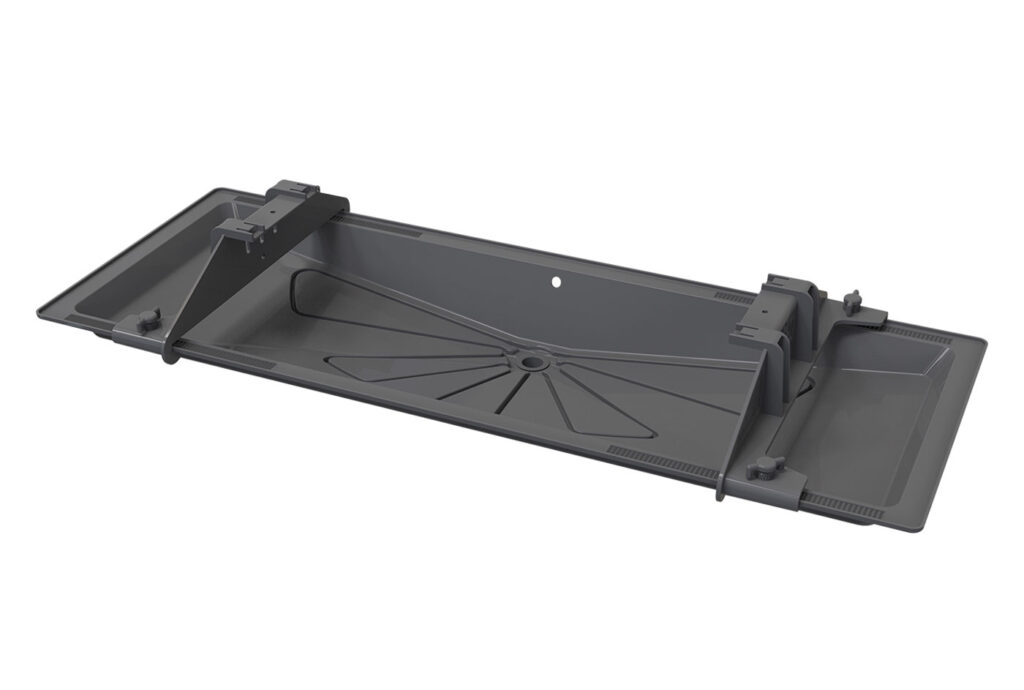

BLUE RIVER Condensate drain pan in anthracite grey

Smart Clima
Air conditioning
Heat pumps

TECHNICAL SPECIFICATIONS:

• Made of ABS + PMMA plastic in anthracite grey RAL 7016
• Adjustable fastening brackets in PA6
• Coupling for condensate drain pipe Ø 16 mm
• Adjustable fixing brackets in electro-galvanized and painted sheet metal (only for model 1250 × 500)
• For outdoor units

Models

Available Models (3)

SCD300050

"BLUE RIVER" DRAIN PAN - RAL 7016 GREY ANTHRACITE (850x400 mm)

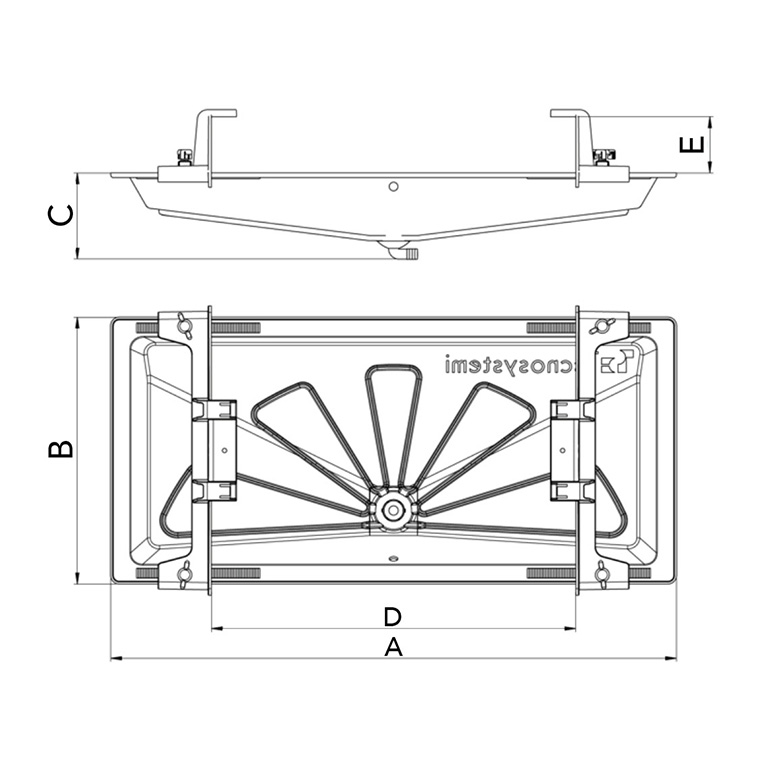

A [mm]	850
B [mm]	400
C [mm]	130
D [mm]	320 ÷ 680
E [mm]	85

SCD300051

"BLUE RIVER" DRAIN PAN - RAL 7016 GREY ANTHRACITE (1050x400 mm)

A [mm]	1050
B [mm]	400
C [mm]	125
D [mm]	330 ÷ 885
E [mm]	85

SCD300052

"BLUE RIVER" DRAIN PAN - RAL 7016 GREY ANTHRACITE (1250x500 mm)

A [mm]	1250
B [mm]	500
C [mm]	100
D [mm]	565 ÷ 1125
E [mm]	85
