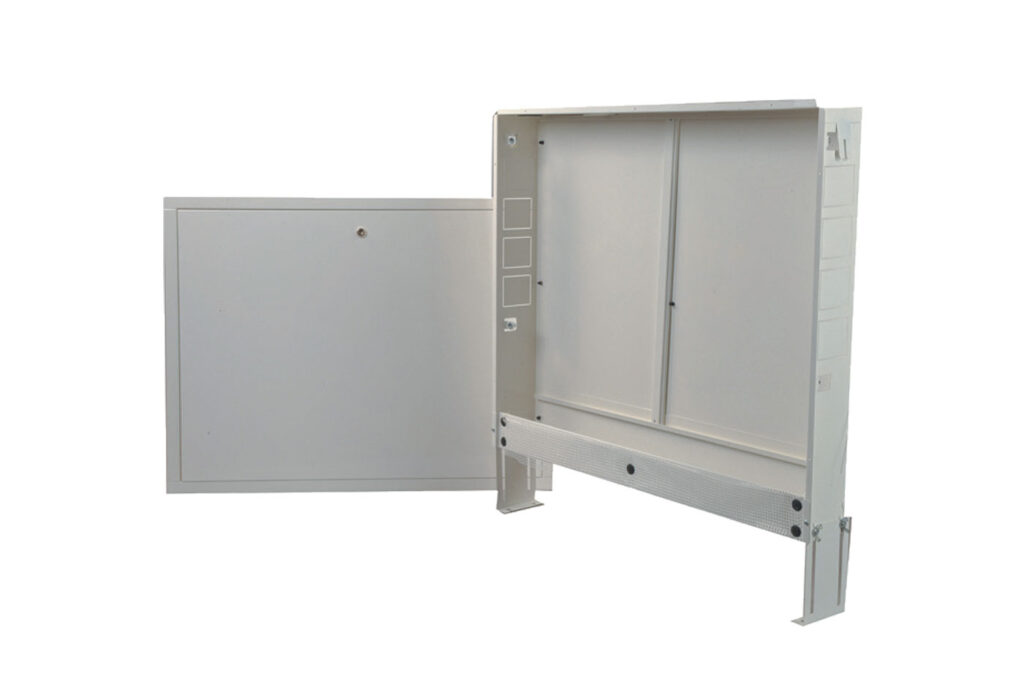

CIP 80 - 150 Collector box for floor systems with adjustable depth

Showgas

TECHNICAL SPECIFICATIONS:

• Bottom in galvanized metal sheet 8/10
• Painted pickled metal sheet front RAL 9016
• Compliant locking system with key
• Adjustable depth from 80 to 150 mm
• Height-adjustable support feet from 0 to 180 mm

Models

Available Models (6)

23000160

DEPTH ADJUSTABLE MANIFOLD BOX FOR FLOOR SYSTEM "CIS 80-150" - 150/500

L DOOR [mm]	500
H DOOR [mm]	530
L FRAME [mm]	500
H FRAME [mm]	630 - 810
DEPTH [mm]	80 - 150

23000170

DEPTH ADJUSTABLE MANIFOLD BOX FOR FLOOR SYSTEM "CIS 80-150" - 150/600

L DOOR [mm]	600
H DOOR [mm]	530
L FRAME [mm]	600
H FRAME [mm]	630 - 810
DEPTH [mm]	80 - 150

23000180

DEPTH ADJUSTABLE MANIFOLD BOX FOR FLOOR SYSTEM "CIS 80-150" - 150/700

L DOOR [mm]	700
H DOOR [mm]	530
L FRAME [mm]	700
H FRAME [mm]	630 - 810
DEPTH [mm]	80 - 150

23000190

DEPTH ADJUSTABLE MANIFOLD BOX FOR FLOOR SYSTEM "CIS 80-150" - 150/850

L DOOR [mm]	850
H DOOR [mm]	530
L FRAME [mm]	850
H FRAME [mm]	630 - 810
DEPTH [mm]	80 - 150

23000200

DEPTH ADJUSTABLE MANIFOLD BOX FOR FLOOR SYSTEM "CIS 80-150" - 150/1000

L DOOR [mm]	1000
H DOOR [mm]	530
L FRAME [mm]	1000
H FRAME [mm]	630 - 810
DEPTH [mm]	80 - 150

23000210

DEPTH ADJUSTABLE MANIFOLD BOX FOR FLOOR SYSTEM "CIS 80-150" - 150/1200

L DOOR [mm]	1200
H DOOR [mm]	530
L FRAME [mm]	1200
H FRAME [mm]	630 - 810
DEPTH [mm]	80 - 150
