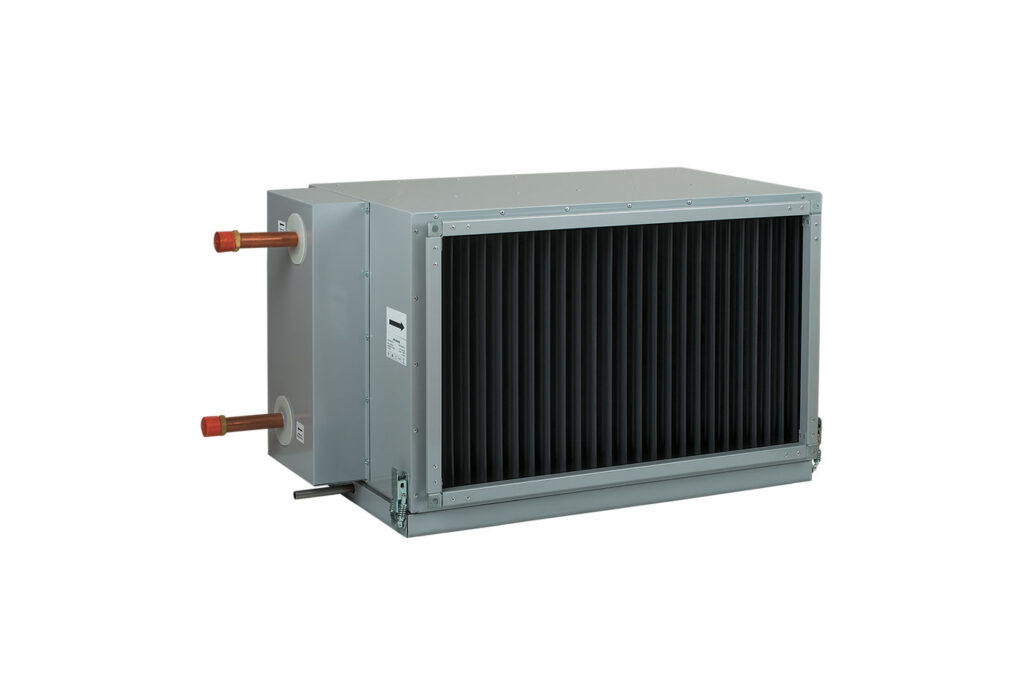

Cold water battery for heat recovery unit

Apply.co
Air treatment - MVHR

The water-cooling battery is made of galvanised steel sheet:
The heat recovery pack consists of copper pipes
The aluminium slats (exchange surface).
The cooling coils are arranged in 3 rows.
It is equipped with a droplet separator and a tray for collecting and removing condensate.
The service couplings can be positioned on both the right and left side of the battery.

TECHNICAL SPECIFICATIONS:

• Maximum operating pressure: 15 bar
• Horizontal installation only
• If the battery is installed in areas where the temperature is below 0°C, use an antifreeze mixture
• Designed for cooling the supply air in the ventilation system on rectangular ducting
• Heat exchanger with copper pipes and aluminium fin pack
