Patent
Immagine IMG_SCD300066.jpg
Configure View documentation

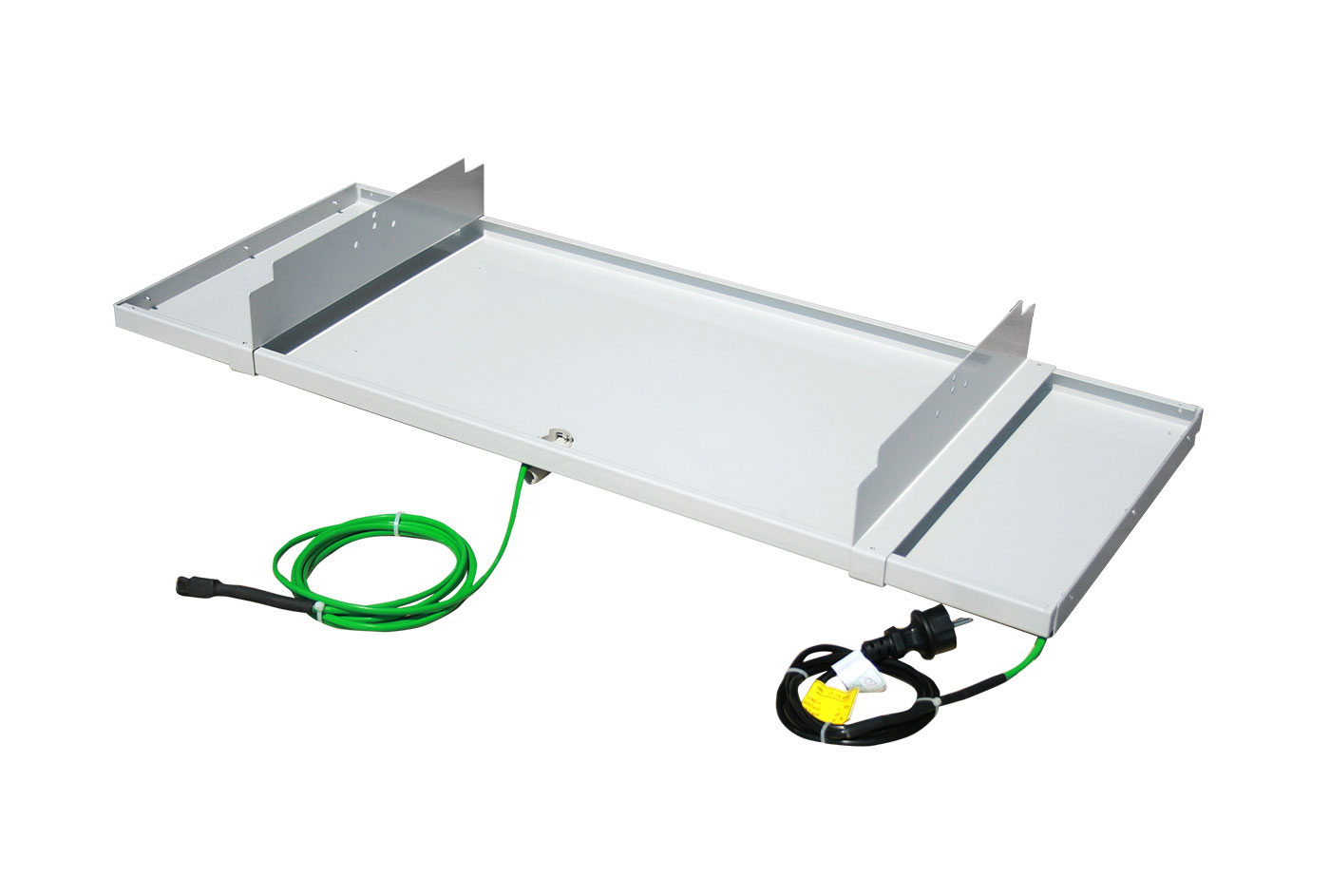

Condensate drain pan with heating Antifreeze cable for condensate drain pipes

  • Smart Clima
  • Air conditioning
  • Heat pumps

TECHNICAL SPECIFICATIONS:

• Electrogalvanised sheet
• Outdoor polyester coating in ivory or RAL 7016 gray
• Heating cable power 15 W/m
• Coupling for condensate drain pipe Ø 16 mm
• Power supply voltage 230 V
• Cable diameter 6 mm
• Resistance tolerance from -5% to +10%
• Built-in thermostat
• Connection at +3°C and disconnection at 12°C
• For outdoor units

Models

Available Models (8)

SCD300066

LARGE CONDENSATE TRAY WITH FROST-PROTECT. LONG CABLE WITH THERMOSTAT

A [mm] 980
B [mm] 390
C [mm] 35
D [mm] 910 max.
E [mm] 80
F [mm] 52

SCD300112

CONDENSATE METAL DRAIN PAN WITH ANTIFREEZE CABLE WITH THERMOSTAT AND HEATING CABLE FOR CONDENSATE PIPE 980X390mm - GREY

A [mm] 980
B [mm] 390
C [mm] 35
D [mm] 911 max.
E [mm] 81
F [mm] 52

SCD300071

MAXI CONDENSATE TRAY WITH FROST-PROTECT. LONG CABLE WITH THERMOSTAT

A [mm] 1100
B [mm] 550
C [mm] 35
D [mm] 1030 max.
E [mm] 130
F [mm] 52

SCD300113

CONDENSATE METAL DRAIN PAN WITH ANTIFREEZE CABLE WITH THERMOSTAT AND HEATING CABLE FOR CONDENSATE PIPE 1100x550mm - GREY

A [mm] 1100
B [mm] 550
C [mm] 35
D [mm] 1031 max.
E [mm] 131
F [mm] 52

SCD300100

CONDENSATE METAL DRAIN PAN WITH ANTIFREEZE CABLE WITH THERMOSTAT AND HEATING CABLE FOR CONDENSATE PIPE 1400x550mm

A [mm] 1400
B [mm] 550
C [mm] 35
D [mm] 1330 max.
E [mm] 130
F [mm] 52

SCD300114

CONDENSATE METAL DRAIN PAN WITH ANTIFREEZE CABLE WITH THERMOSTAT AND HEATING CABLE FOR CONDENSATE PIPE 1400x550mm - GREY

A [mm] 1400
B [mm] 550
C [mm] 35
D [mm] 1331 max.
E [mm] 131
F [mm] 52

SCD300105

CONDENSATE METAL DRAIN PAN WITH ANTIFREEZE CABLE WITH THERMOSTAT AND HEATING CABLE FOR CONDENSATE PIPE 1500x550mm

A [mm] 1500
B [mm] 550
C [mm] 35
D [mm] 1400 max.
E [mm] 130
F [mm] 52

SCD300106

CONDENSATE METAL DRAIN PAN WITH ANTIFREEZE CABLE WITH THERMOSTAT AND HEATING CABLE FOR CONDENSATE PIPE 1500x550mm - GREY

A [mm] 1500
B [mm] 550
C [mm] 35
D [mm] 1400 max.
E [mm] 130
F [mm] 52

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_SCD300066.jpg

  • Technical Data Sheet

    it en fr de
