Connector for photovoltaic modules

Fv Power

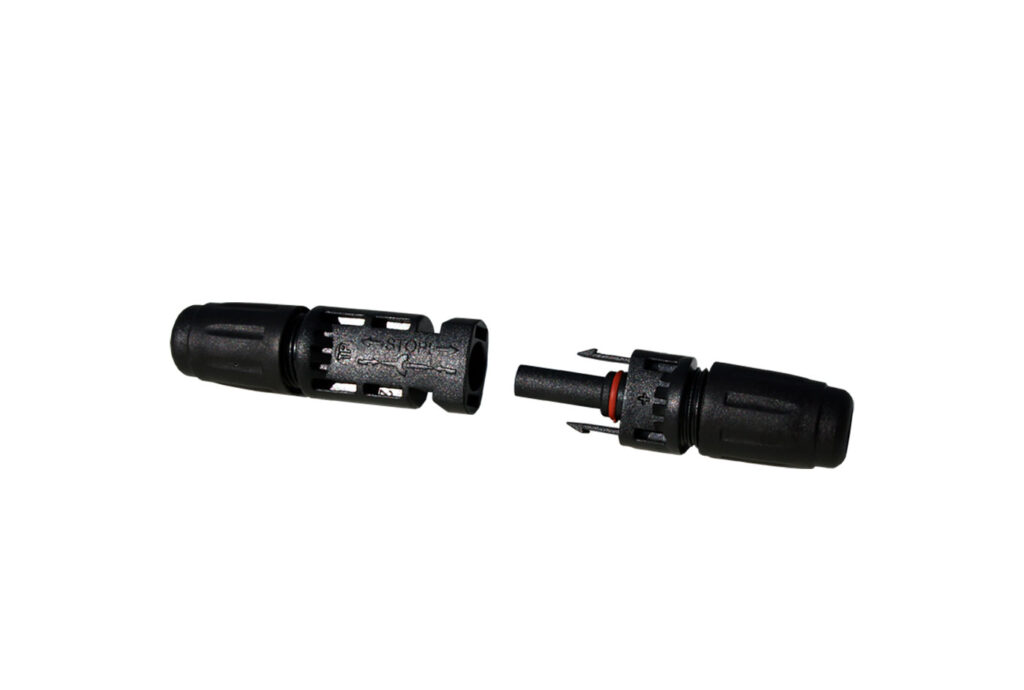

These connectors have been developed for MC4 type panels, to meet the growing demand for a quick coupling system.
Easy to make and reliable for wiring photovoltaic modules.
This system allows wiring of the panels with each other or up to the inverter.
The components of the plug connection system for photovoltaics allow easy installation, making on-site installation possible.

TECHNICAL SPECIFICATIONS:

• Rated voltage: DC 1000V (TUV), DC 600V (UL)
• Nominal current: 25A 4mm2 – 35A 6mm2
• Resistance: ≤0.3 mΩ
• Cable cross-section 4 mm² – 6 mm²
• Protection rating: IP68 (1m, 24h)
• Test voltage: 8kv
• Temperature limit of use: 125°C
• Category of overvoltage: III
• Flammability class: UL94 -V/V0
• Insulation material: PPO/PA 66
• Material Contact: Tin plated copper alloy
• Clamping force: Connect 20kgf
• Clamping force: Wire 20kgf
• Standard connector: Compatible with MC4
• Ambient temperature: -40 ÷ 85°C
• Notes: No disconnect under voltage
