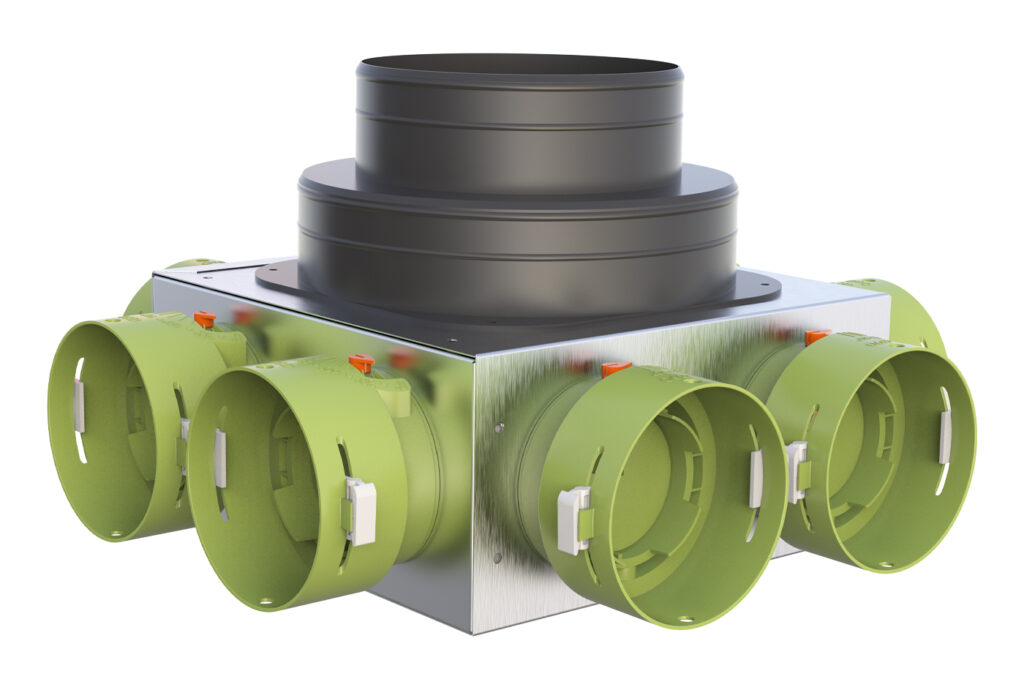

Distribution box for MVHR 90, suitable for 4 - 6 - 8 - 10 - 12 flexible ducted pipe, with sleeves and adjustment damper, for 4 - 6 - 8 - 10

Apply.co
Air treatment - MVHR

Distribution box for MVHR in galvanised steel sheet insulated internally in polyethylene (3 mm thick), designed for use with flexible ducted hoses.
The box is equipped with an inlet collar for Ø150 or Ø200 pipes and pre-mounted Ø75 or Ø90 outlet collars complete with screwdriver-adjustable calibration damper.
Closing caps supplied for models with 4/6/10 outlets.
On request available with collar Ø100 / Ø125 / Ø150.

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• Internal insulation in 3 mm thick polyethylene
• With inlet collar with double diameter Ø150 – Ø200
• Outgoing collars as shown in the table
• Complete with brackets
• Sleeves complete with calibration damper with graduated adjustment by screwdriver
• Supplied caps for 4 / 6 /10 output model
• Box supplied pre-assembled
• Available with collar Ø100 / Ø125 / Ø150

Models

Available Models (10)

ACD600142

PLÉNUM 90° Ø 75 - 4 OUTLETS 150/200

A [mm]	234
B [mm]	212
C [mm]	355
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	4 - 90

ACD600143

PLÉNUM 90° Ø 75 - 6 OUTLETS 150/200

A [mm]	300
B [mm]	212
C [mm]	355
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	6 - 90

ACD600144

INSULATED DISTRIBUTION PLENUM 90° DIAM. 75 - 8 OUTLETS INLET 150/200 TS FITTING

A [mm]	355
B [mm]	212
C [mm]	355
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	8 - 90

ACD600145

PLÉNUM 90° Ø 75 - 10 OUTLETS 150/200

A [mm]	473
B [mm]	212
C [mm]	473
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	10 - 90

ACD600146

PLÉNUM 90° Ø 75 - 12 OUTLETS 150/200

A [mm]	473
B [mm]	212
C [mm]	473
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	12 - 90

ACD600137

PLÉNUM 90° Ø 90 - 4 OUTLETS 150/200

A [mm]	244
B [mm]	212
C [mm]	365
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	4 - 75

ACD600138

PLÉNUM 90° Ø 90 - 6 OUTLETS 150/200

A [mm]	305
B [mm]	212
C [mm]	365
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	6 - 75

ACD600139

PLÉNUM 90° Ø 90 - 8 OUTLETS 150/200

A [mm]	365
B [mm]	212
C [mm]	365
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	8 - 75

ACD600140

PLÉNUM 90° Ø 90 - 10 OUTLETS 150/200

A [mm]	483
B [mm]	212
C [mm]	483
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	10 - 75

ACD600141

PLÉNUM 90° Ø 90 - 12 OUTLETS 150/200

A [mm]	483
B [mm]	212
C [mm]	483
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	12 - 75
