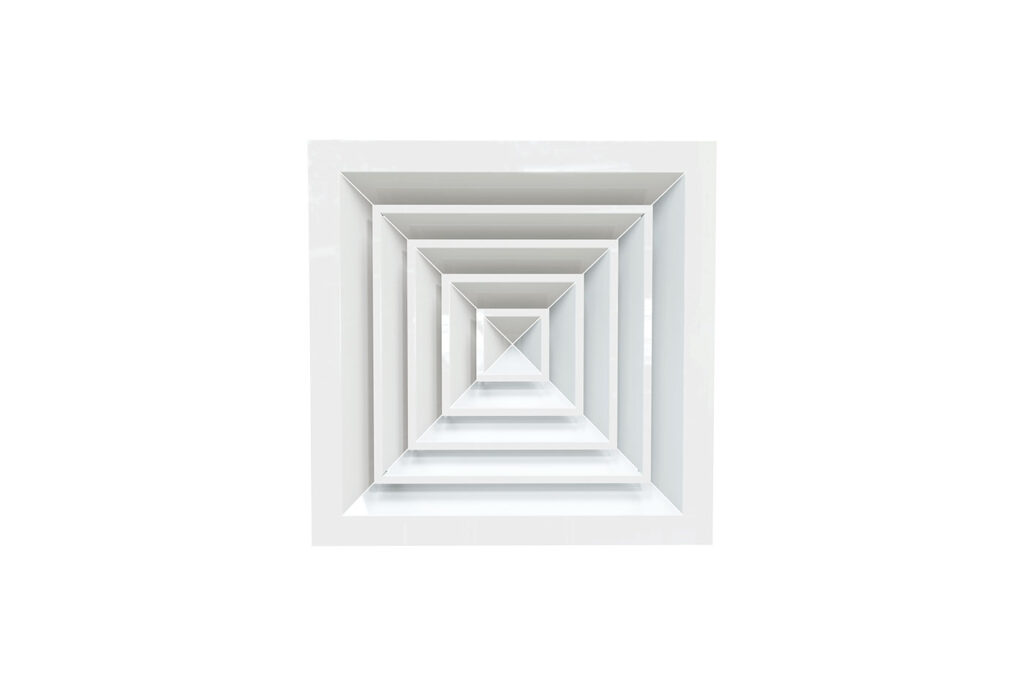

DQA Square diffuser 1 - 2 - 3 - 4-way in white painted aluminium

Project Wind
Air diffusion

Square 1-2-3-4-way multi-direction diffuser in white painted aluminium, with removable cones.
The diffuser is fixes using the hidden screws in the diffuser neck.
Diffuser ideal for wall or ceiling installations, in delivery and intake, at a height between 2.5 m and 3.1 m.

TECHNICAL SPECIFICATIONS:

• Made in white painted aluminium
• Suitable for air delivery and intake
• High operating efficiency

Models

Available Models (18)

W11161620

SQUARE DIFFUSER DQA 2 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	2
A [mm]	295 x 295
B [mm]	150 x 150
C [mm]	240 x 240
H [mm]	50

W11161630

SQUARE DIFFUSER DQA 3 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	3
A [mm]	295 x 295
B [mm]	150 x 150
C [mm]	240 x 240
H [mm]	50

W11161640

SQUARE DIFFUSER DQA 4 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	4
A [mm]	295 x 295
B [mm]	150 x 150
C [mm]	240 x 240
H [mm]	50

W11161612

SQUARE DIFFUSER DQA 1 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	1
A [mm]	370 x 370
B [mm]	225 x 225
C [mm]	315 x 315
H [mm]	50

W11161622

SQUARE DIFFUSER DQA 2 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	2
A [mm]	370 x 370
B [mm]	225 x 225
C [mm]	315 x 315
H [mm]	50

W11161632

SQUARE DIFFUSER DQA 3 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	3
A [mm]	370 x 370
B [mm]	225 x 225
C [mm]	315 x 315
H [mm]	50

W11161642

SQUARE DIFFUSER DQA 4 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	4
A [mm]	370 x 370
B [mm]	225 x 225
C [mm]	315 x 315
H [mm]	50

W11161613

SQUARE DIFFUSER DQA 1 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	1
A [mm]	445 x 445
B [mm]	300 x 300
C [mm]	390 x 390
H [mm]	50

W11161623

SQUARE DIFFUSER DQA 2 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	2
A [mm]	445 x 445
B [mm]	300 x 300
C [mm]	390 x 390
H [mm]	50

W11161633

SQUARE DIFFUSER DQA 3 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	3
A [mm]	445 x 445
B [mm]	300 x 300
C [mm]	390 x 390
H [mm]	50

W11161643

SQUARE DIFFUSER DQA 4 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	4
A [mm]	445 x 445
B [mm]	300 x 300
C [mm]	390 x 390
H [mm]	50

W11161614

SQUARE DIFFUSER DQA 1 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	1
A [mm]	520 x 520
B [mm]	375 x 375
C [mm]	465 x 465
H [mm]	50

W11161624

SQUARE DIFFUSER DQA 2 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	2
A [mm]	520 x 520
B [mm]	375 x 375
C [mm]	465 x 465
H [mm]	50

W11161634

SQUARE DIFFUSER DQA 3 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	3
A [mm]	520 x 520
B [mm]	375 x 375
C [mm]	465 x 465
H [mm]	50

W11161644

SQUARE DIFFUSER DQA 4 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	4
A [mm]	520 x 520
B [mm]	375 x 375
C [mm]	465 x 465
H [mm]	50

W11161616

SQUARE DIFFUSER DQA 1 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	1
A [mm]	595 x 595
B [mm]	450 x 450
C [mm]	540 x 540
H [mm]	50

W11161626

SQUARE DIFFUSER DQA 2 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	2
A [mm]	595 x 595
B [mm]	450 x 450
C [mm]	540 x 540
H [mm]	50

W11161646

SQUARE DIFFUSER DQA 4 WAYS IN WHITE PAINTED ALUMINIUM

No. of WAYS	4
A [mm]	595 x 595
B [mm]	450 x 450
C [mm]	540 x 540
H [mm]	50
