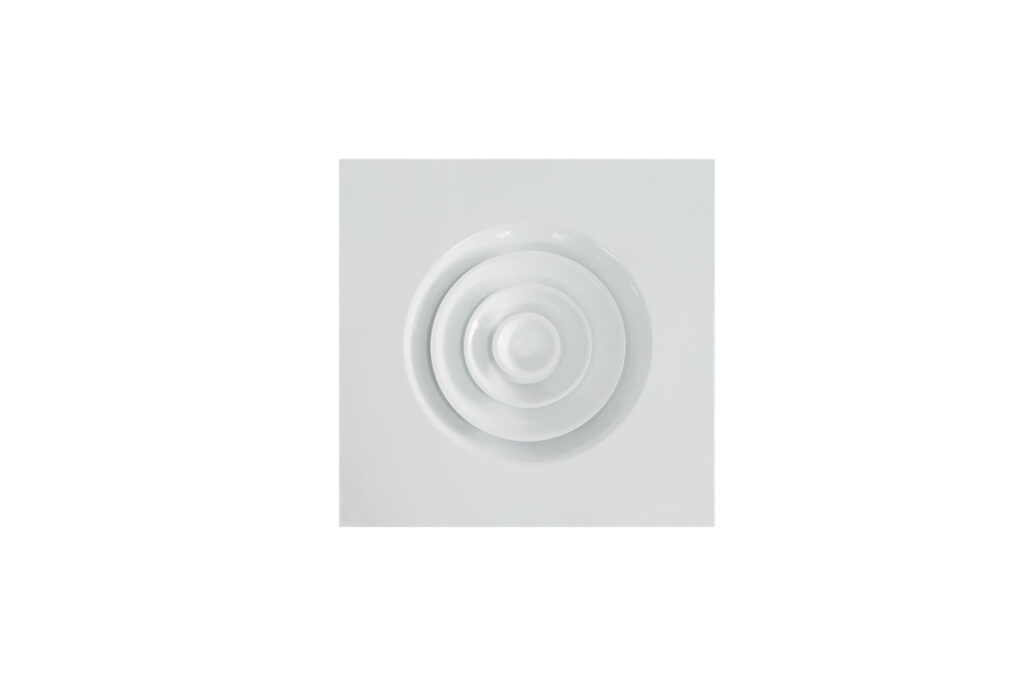

DQC Circular diffuser on square panel in white painted metal

Project Wind
Air diffusion

Circular diffuser made of metal painted in white RAL 9016, consisting of fixed concentric truncated-cone profiles on a square panel.
The diffuser comes complete with a manual adjustment damper and collar.
The damper can be inspected from the front by operating specific safety hooks that allow the cones to be removed.
Suitable for installation heights from 2.7 m to 3.5 m.
Designed for applications in air conditioning, heating and ventilation systems with both delivery and suction operation.

TECHNICAL SPECIFICATIONS:

• Made of white-painted metal
• Suitable for air delivery and intake
• Equipped with damper and collar
• High operating efficiency
• Installation height 2.7 – 3.5 m
• Manually operated calibration damper fitted in the collar

Models
