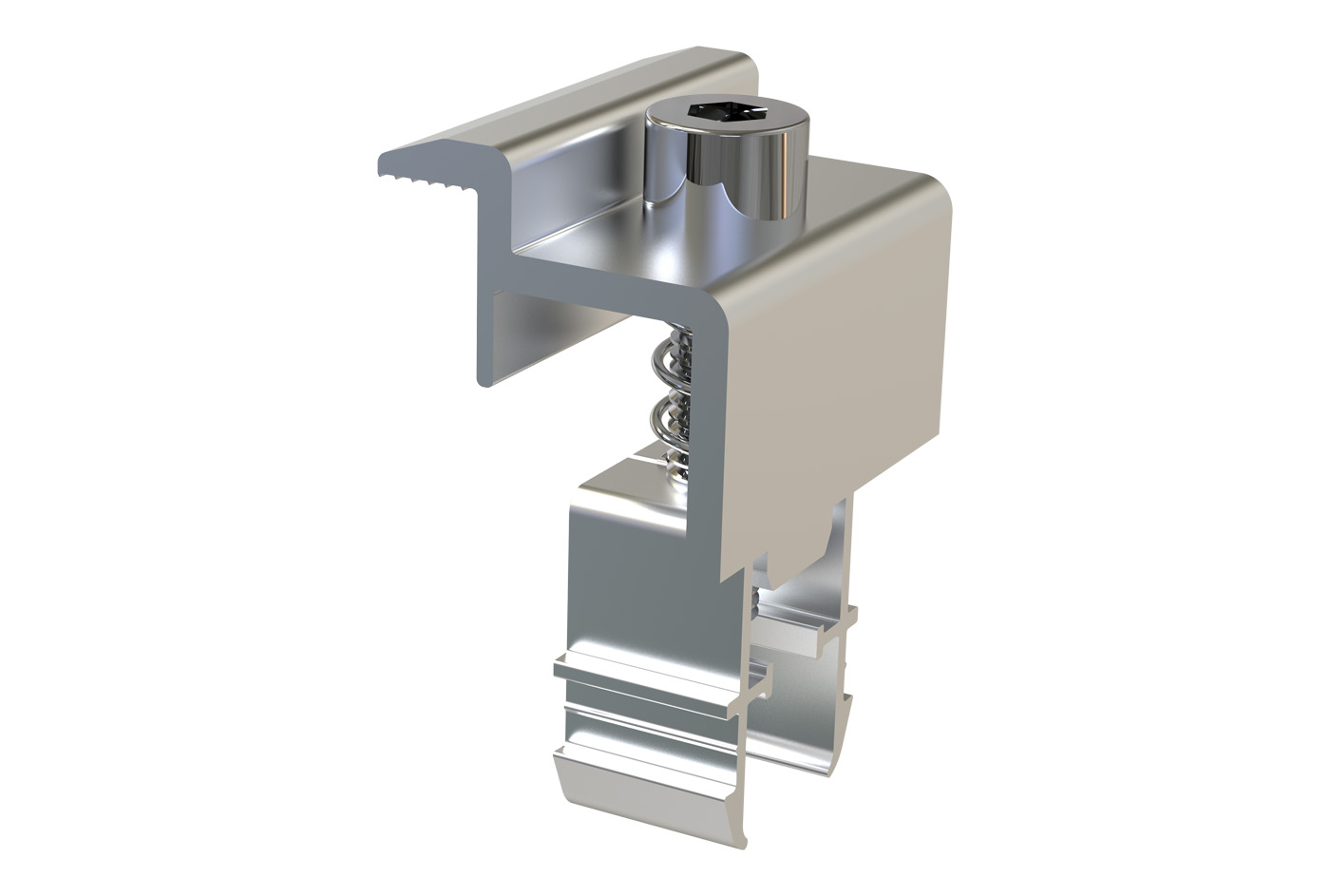

EASY CLACK Pre-assembled universal side clamp

Fv Power

Universal side clamp for fastening photovoltaic panels on several profiles with quick-coupling system.

TECHNICAL SPECIFICATIONS:

• Material: aluminium alloy 6060
• Clamp length: 40mm
• A2 stainless hardware and spring
• Supplied pre-assembled
• Quick coupling system compatible with FVP profiles (*for FVP250 profiles compatible ONLY with the -3V- series, codes FVD100052 and subsequent)
• Universal for panels from 27 mm to 40 mm
• Screw tightening with hex key 6
• Non-slip knurling
• Refer to the technical datasheet for torque specifications
