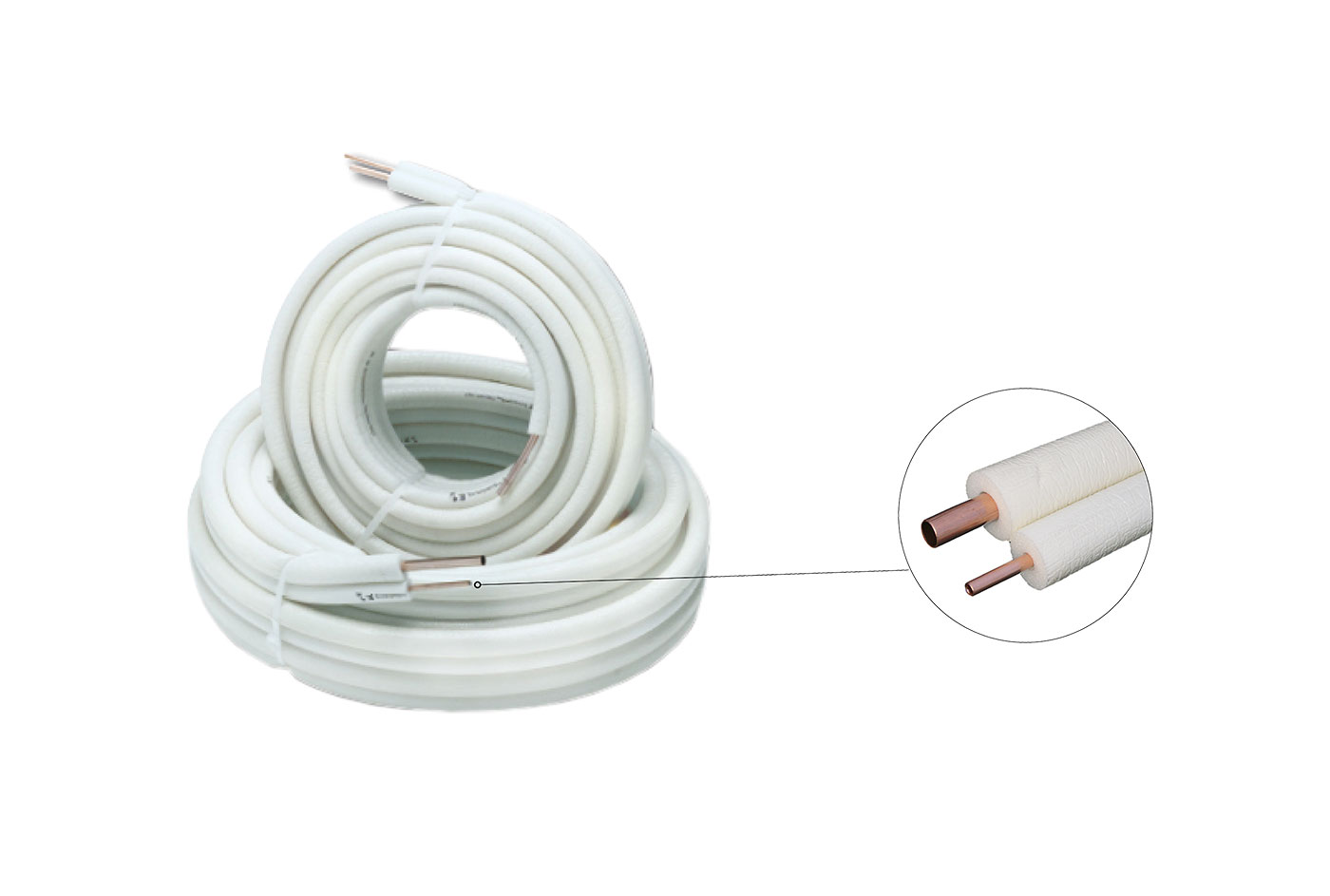

ECO LINE Insulated copper pipe coupled

Smart Clima
Air conditioning
Heat pumps

The “Eco Line” protective sheath is made of closed-cell expanded polyethylene with a thickness of 6 to 10 mm
It is externally equipped with a robust tear-proof film.
The copper pipes are supplied already coupled and therefore allow a considerable savings of time during installation.

TECHNICAL SPECIFICATIONS:

• Cu-DHP copper pipe according to EN 12735-1
• Insulation thickness 6 mm: 1/4 – 3/8 -1/2
• Insulation thickness from 10 mm: 5/8
• Smooth tear-resistant film
• Paired 20 m pack
• Crimped copper ends
• Cardboard packaging
• Expanded polyethylene insulation
• 0.8 mm copper
• 1-metre interval marking
• Fire reaction class CL – s1, d0

Models
