Electrical battery with thermostat for heat recovery from 200 to 800 m³/h

Apply.co
Air treatment - MVHR

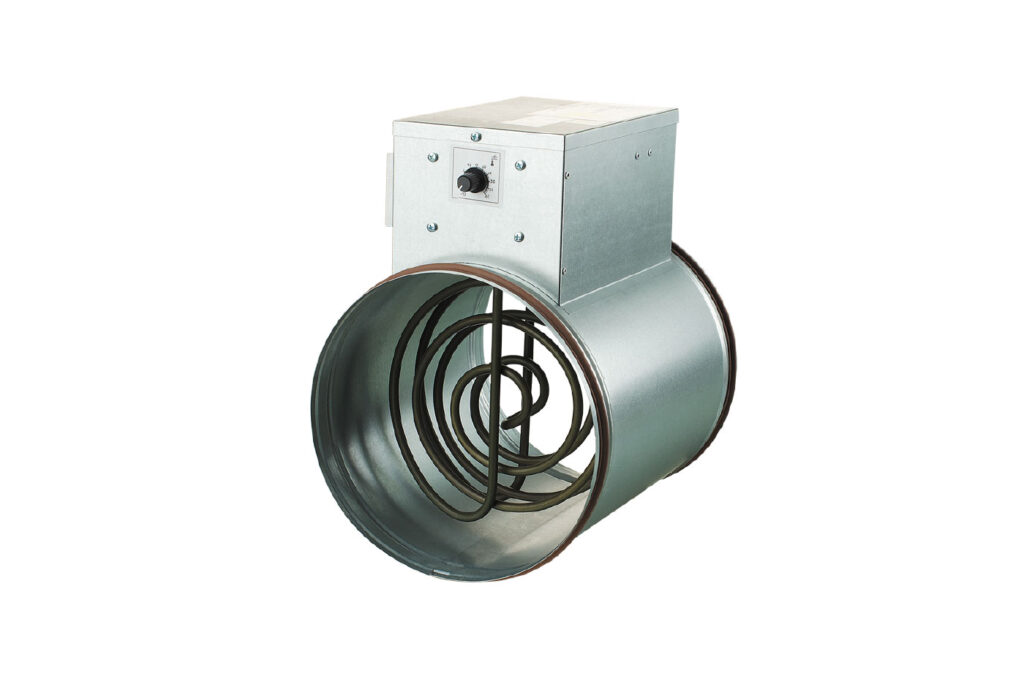

Electrical battery with wire heating element mounted on a galvanised metal sheet duct and complete with:
• automatic reset thermal protector (50°C) and manual reset thermal protector (60°C)
• relay/contactor and terminal board
• duct thermostat adjustable from -10°C to +40°C
The battery is equipped with safety thermostats with automatic and manual reset, calibrated to trip in the event of failure or poor ventilation.
The bulb thermostat adjustable from -10 to +40°C installed at the inlet, allows for the triggering temperature of the heating element to be set; the device is activated automatically when the set temperature is reached.

TECHNICAL SPECIFICATIONS:

• Equipped with thermostat for temperature regulation from -10°C to + 40°C
• Equipped with two thermoprotectors: +50°C with automatic reset; +90°C with manual reset
• To prevent overheating the battery, air flow must always be greater than the minimum flow rate indicated in the table

Models
