EOLO Ø150 - 200 Kit Svelto with adjustable grilles

Project Wind
Air diffusion

The “Svelto Kit” is the complete solution for air distribution for ducted units: it contains all the necessary accessories to correctly channel the air produced by the indoor unit to distribute it optimally in each room.
Having chosen the brand and model of the ducted machine, simply choose the grille or the diffuser and finally the plenum.
The kits offer multiple installation opportunities with different solutions from which to choose:
– delivery grille with adjustable flaps
– delivery grille with 15° tilted fixed flaps
– linear diffuser length 1000 with 2 slots.

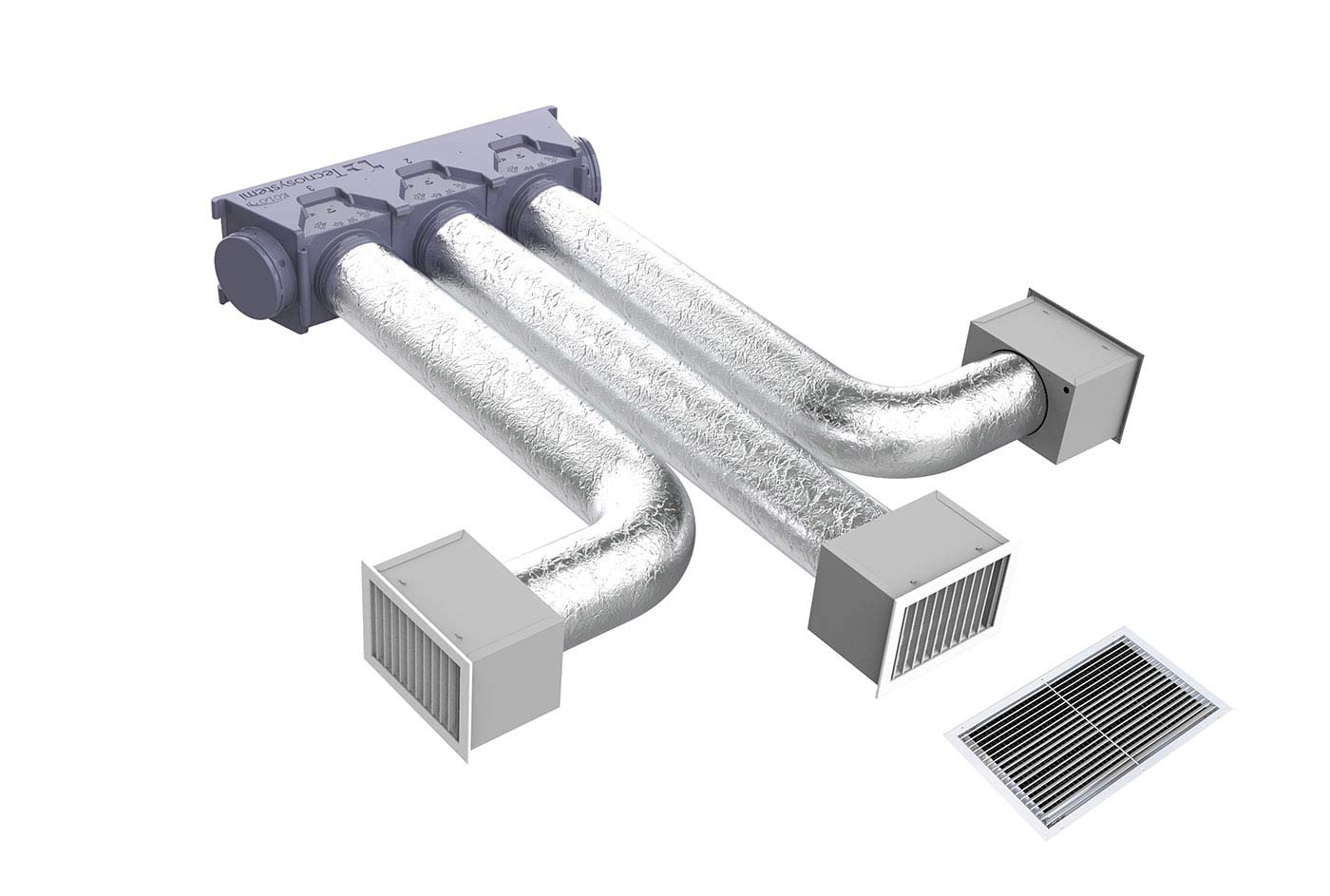

The “Svelto Eolo Kit” is equipped with a sintered polystyrene plenum and comes with adjustable grilles and available in five models: 2 – 3 – 4 – 5 – 6 zones and with pipes Ø 150 and 200.
Available on request.

THE Ø150 KIT CONSISTS OF:

• 1 custom sintered polystyrene plenum for indoor units
• Collars integrated into plenum (quantity depending on zones)
• Supply air grille in white-painted aluminium, installation opening 300 × 150 mm, overall dimensions 336 × 186 mm, CODE WB11161512 (quantity depending on the zones)
• Insulated sheet metal plenums designed for 3 inlet connections for grilles (installation opening 300 × 150 mm), CODE PWD100005 (quantity depending on the zones)
• Serrande di taratura per bocchetta foro installazione 300 x 150 mm COD. W11161568 (quantità a seconda delle zone)
• Double-wall aluminium flexible duct Ø 152 mm, 10 m length, CODE 11152152
• No. 1 white aluminium return air grille, installation opening 600 × 400 mm, overall dimensions 632 × 432 mm, with 600 × 400 mm filter, CODE WB11161525
• Hose clamps (quantity depending on zone)

THE Ø200 KIT CONSISTS OF:

• 1 custom sintered polystyrene plenum for indoor units
• Collars integrated into plenum (quantity depending on zones)
• Supply air grille in white-painted aluminium, installation opening 300 × 200 mm, overall dimensions 336 × 236 mm, CODE WB11161515 (quantity depending on the zones)
• Insulated sheet metal plenums designed for 3 inlet connections for grilles (installation opening 300 × 200 mm), CODE PWD100007 (quantity depending on the zones)
• Calibration dampers for grille, installation opening 300 × 200 mm, CODE W11161563 (quantity depending on zones)
• Double-wall aluminium flexible duct Ø 200 mm, 10 m length, CODE 11152204
• No. 1 white aluminium return air grille, installation opening 600 × 400 mm, overall dimensions 632 × 432 mm, with 600 × 400 mm filter, CODE WB11161525
• Hose clamps (quantity depending on zone)
