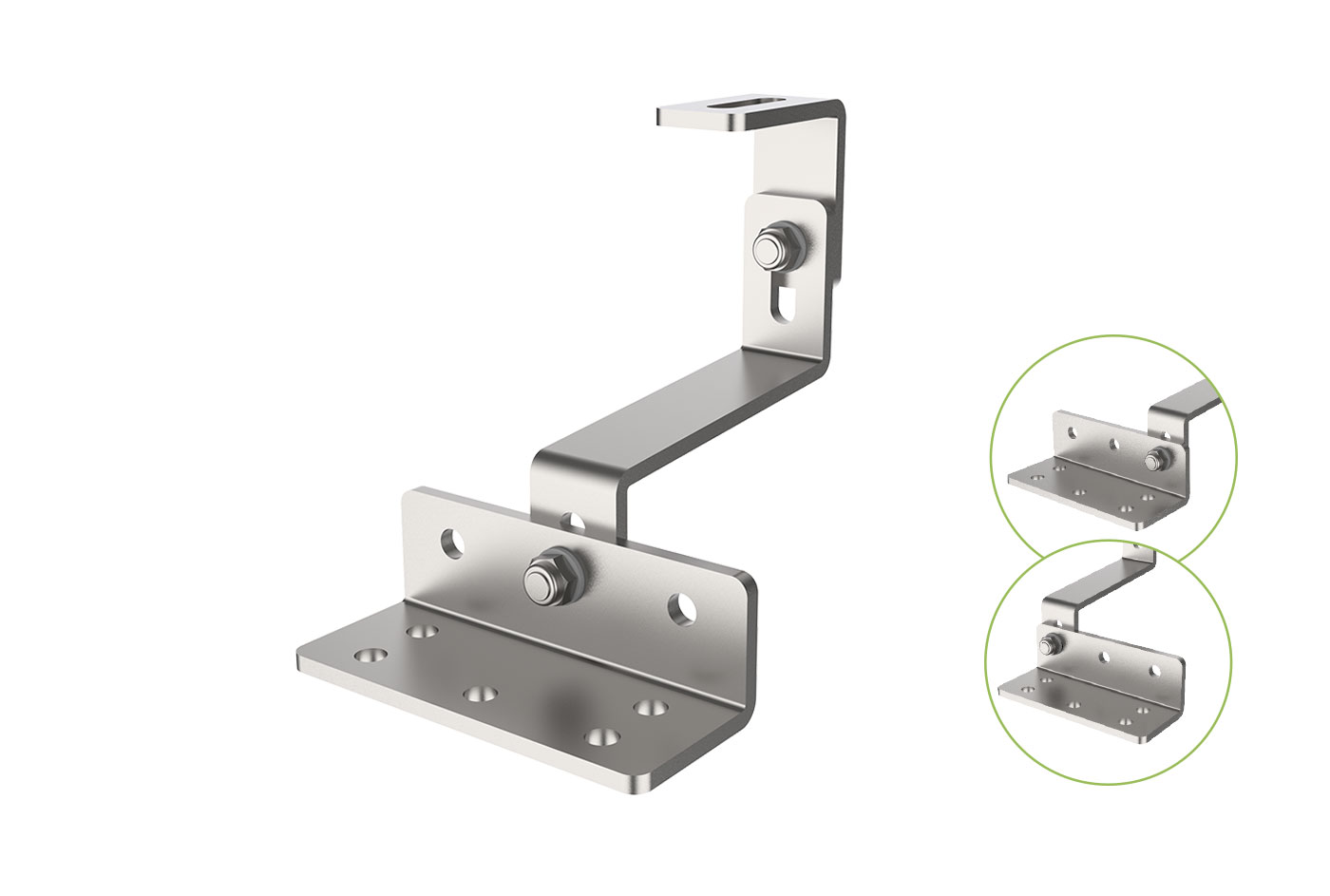

FSDRL Wide base stand with double adjustment for tiled roofs
Fv Power
Wide based AISI 304 stainless steel mount with double adjustment.
The support is designed for fixing photovoltaic systems on tiled roofs, supported by battens of varying thickness.
TECHNICAL SPECIFICATIONS:
• Material: AISI 304 stainless steel
• Flexural modulus of elasticity: 196000 N/mm²
• Tensile breaking load: 515 N/mm²
• 5 holes Ø 9 prepared for bracket fastening
• Hook dimensions: 30mm x 5mm thickness
Models
Available Models (2)
FVD300002
FSDRL - SUPPORT WITH WIDE BASE AND DOUBLE ADJUSTMENT
| A [mm] | 145 |
|---|---|
| B [mm] | 41 ÷ 52 |
| C [mm] | 60 ÷ 80 |
| D [mm] | 120 |
| E [mm] | 50 |
| F [mm] | 105 |
| G [mm] | 30 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
