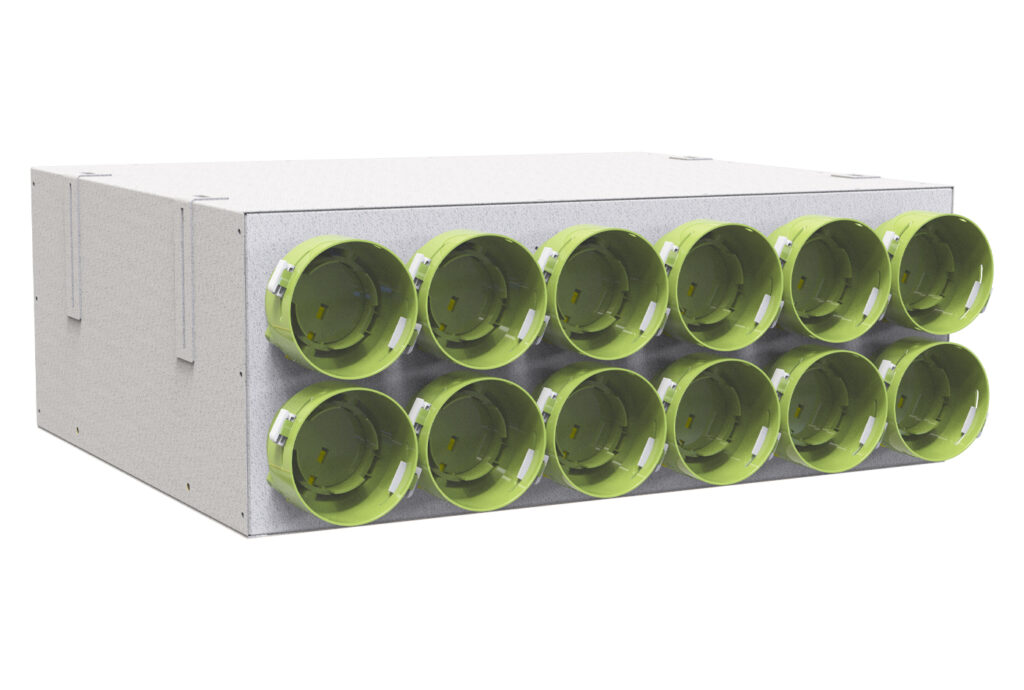

Galvanised metal sheet soundproofed plenum 4-6-8-10-12 outputs Ø 90 with connectors complete with calibration damper with adjustment

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• High sound insulation
• Internal sound absorber thickness 20mm
• Removable soundproofing septa
• Complete with brackets for ceiling mounting
• Output/input collars as per table
• Sleeves complete with calibration damper with graduated adjustment by screwdriver

Models

Available Models (7)

ACD600128

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 4 OUTLETS 150/200

A [mm]	360
B [mm]	240
C [mm]	500
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	4 - 90

ACD600129

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 6 OUTLETS 150/200

A [mm]	360
B [mm]	240
C [mm]	500
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	6 - 90

ACD600130

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 8 OUTLETS 150/200

A [mm]	660
B [mm]	240
C [mm]	500
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	8 - 90

ACD600131

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 10 OUTLETS 150/200

A [mm]	660
B [mm]	240
C [mm]	500
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	10 - 90

ACD600132

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 12 OUTLETS 150/200

A [mm]	660
B [mm]	240
C [mm]	500
INPUT Ø [mm]	150 / 200
No.of OUTLETS - Ø [mm]	12 - 90

ACD600133

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 4 OUTLETS 100 / 125 /150

A [mm]	360
B [mm]	240
C [mm]	500
INPUT Ø [mm]	100 / 125 / 150
No.of OUTLETS - Ø [mm]	4 - 90

ACD600134

PLÉNUM MADE OF GALVANIZED SHEET METAL Ø 90 - 6 OUTLETS 100 / 125 /150

A [mm]	360
B [mm]	240
C [mm]	500
INPUT Ø [mm]	100 / 125 / 150
No.of OUTLETS - Ø [mm]	6 - 90
