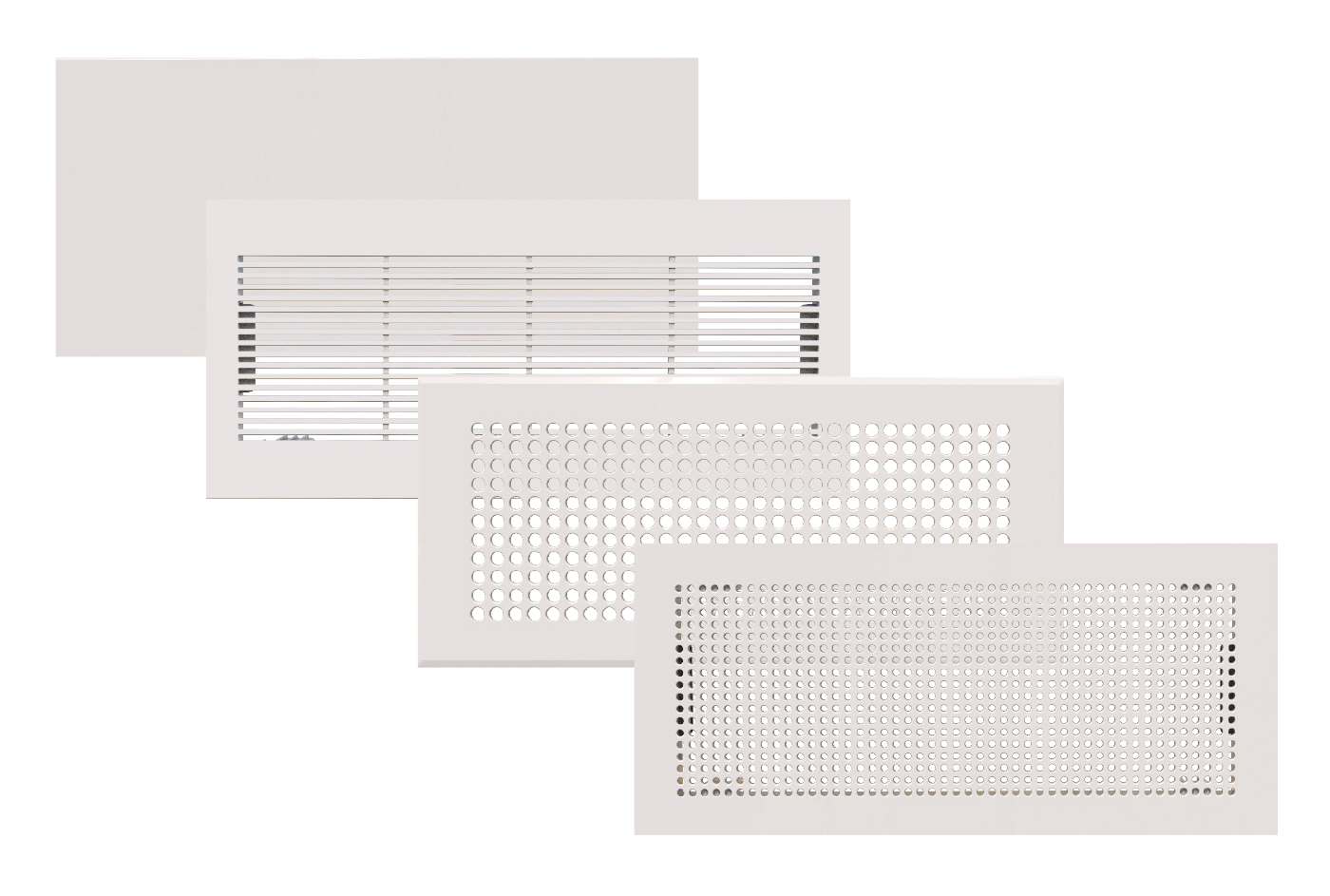

GEMINI, VIRGO, ARIES and TAURUS Aesthetic grilles for MVHR AIRBOX vents

Apply.co
Air treatment - MVHR

Designer grille for MVHR box in ABS, colour white RAL 9016., designed for both air delivery and intake.
Available accessories: filter kit class G2 (except Gemini model).

TECHNICAL SPECIFICATIONS:

Designer grille for MVHR box in ABS, colour white RAL 9016.
Available accessories: filter kit class G2 (except Gemini model).

Models

Available Models (5)

ACC600089

DECORATIVE GRILL - Model GEMINI

EXTERNAL DIMENSIONS [mm]	L. 303 x H. 133
AIR FLOW RATE [m³/h]	40

Specification items

SPECIFICATION
Aesthetic grille for VMC Airbox plenum

ACC600089
Model Gemini
Flat aesthetic grille with a minimum 12 mm perimeter air passage, made of paintable RAL 9016 white ABS, for use with the Airbox plenum. Quick fixing with adjustable pressure clips. Designed for both air supply and air return.
Dimensions (WxHxD): 297x135x4 mm
Brand Tecnosystemi S.p.A

ACC600090
Model Virgo
Aesthetic grille with Ø 6 mm circular holes, made of paintable RAL 9016 white ABS, for use with the Airbox plenum. Quick fixing with adjustable pressure clips. Designed for both air supply and air return.
Dimensions (WxHxD): 297x135x4 mm
Brand Tecnosystemi S.p.A

ACC600091
Model Aries
Aesthetic grille with Ø 3 mm circular holes, made of paintable RAL 9016 white ABS, for use with the Airbox plenum. Quick fixing with adjustable pressure clips. Designed for both air supply and air return.
Dimensions (WxHxD): 297x135x4 mm
Brand Tecnosystemi S.p.A

ACC600092
Model Taurus
Aesthetic grille with horizontal slots, made of paintable RAL 9016 white ABS, for use with the Airbox plenum. Quick fixing with adjustable pressure clips. Designed for both air supply and air return.
Dimensions (WxHxD): 297x135x4 mm
Brand Tecnosystemi S.p.A

ACC600093
Filter kit for Taurus, Virgo, and Aries aesthetic grilles
Polyurethane filter for ambient pre-filtration.
Suitable for use with Taurus, Virgo, and Aries aesthetic grilles
TECHNICAL SPECIFICATIONS:
• Material: Polyurethane
• Maximum operating temperature: +80° C
• Gravimetric arrestance: 82%
• Recommended face velocity: 1.5 m/s
• Dust holding capacity: 300 gr/m2
• Classification (according to EN779:2012): G2 (EU2)
• Class: primary filtration
• Density: up to 55 kg/m2
• Porosity: 20-30 ppi
Pack: 5 pcs
Dimensions (WxHxD): 253x91x8 mm
