Immagine IMG_ACD600071.jpg
View documentation

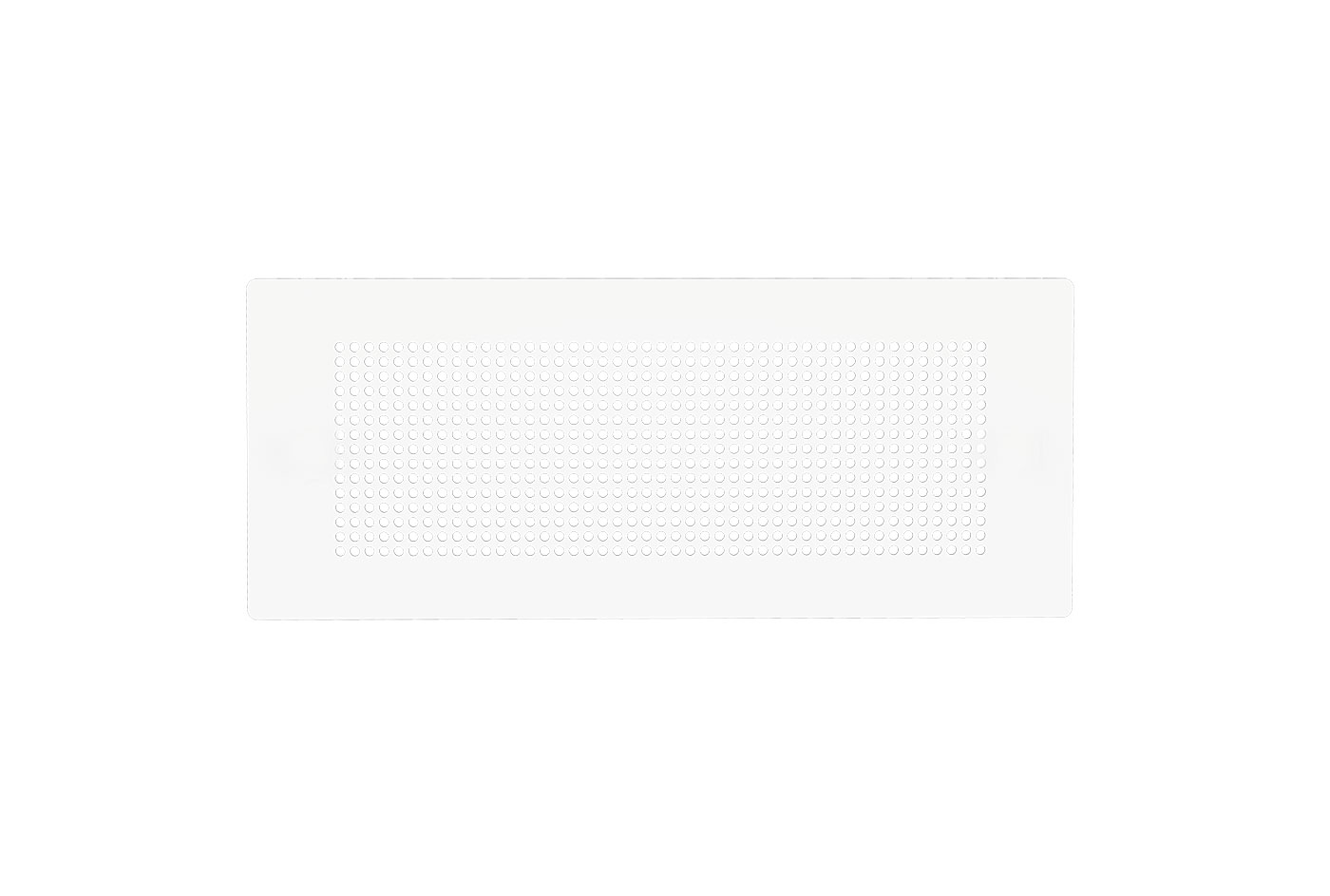

GINEVRA Grid in white painted steel

  • Apply.co
  • Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of electro-galvanised metal sheet
• White paint
• Fastening by means of screws

Models

Available Models (4)

ACD600071

GRILLE "GINEVRA" - COLOUR WHITE - 200x100

EXTERNAL DIMENSIONS [mm] 240 X 140
AIR FLOW RATE [m³/h]  40

ACD600072

GRILLE "GINEVRA" - COLOUR WHITE - 300x100

EXTERNAL DIMENSIONS [mm] 340 x 140
AIR FLOW RATE [m³/h]  50

ACD600073

GRILLE "GINEVRA" - COLOUR WHITE - 300x150

EXTERNAL DIMENSIONS [mm] 340 X 190
AIR FLOW RATE [m³/h]  60

ACD600074

GRILLE "GINEVRA" - COLOUR WHITE - 400x150

EXTERNAL DIMENSIONS [mm] 440 x 190
AIR FLOW RATE [m³/h]  75

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
