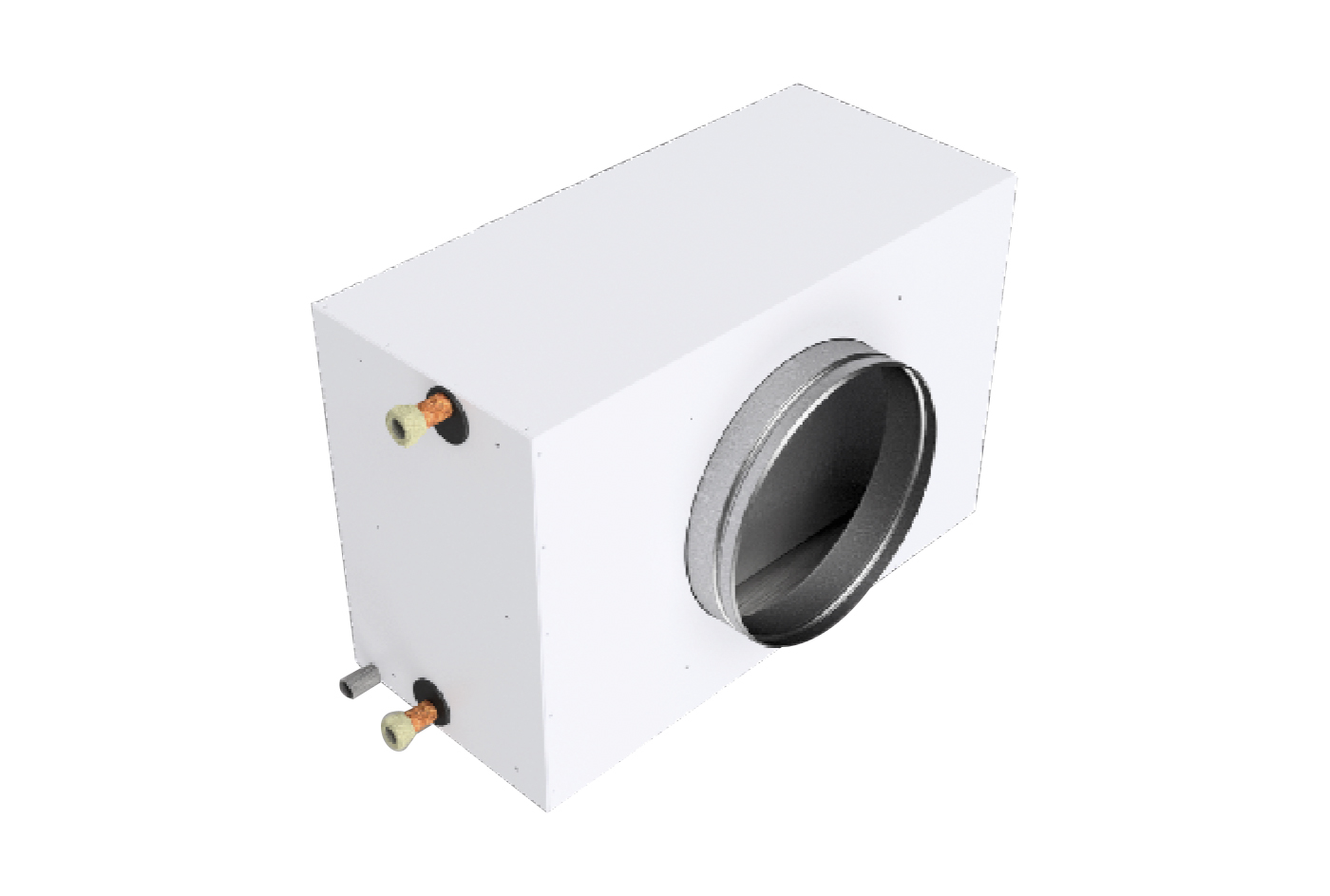

Heating battery hot/ cold

Apply.co
Air treatment - MVHR

The channel batteries are designed to be inserted in the ventilation systems and allow to integrate sensible power in hot and/ or cold.
They are equipped with a tray for the discharge of condensate water that is created during integration in cold and are internally insulated to prevent heat loss and the formation of condensation on the walls.

TECHNICAL SPECIFICATIONS:

• Self-supporting structure in pre-painted metal sheet
• Thermal/acoustic insulation in expanded polyethylene sp. 10 mm
• Inlet/Outlet Sleeve To Fix Air-Side Ducting
• Condensate water collection tray
• Configuration with H2O connections on the right side (following the air flow)
• Fastening brackets supplied

Models

Available Models (10)

ACC400017

COLD / HOT WATER COIL - 150m³/h e 1Kw

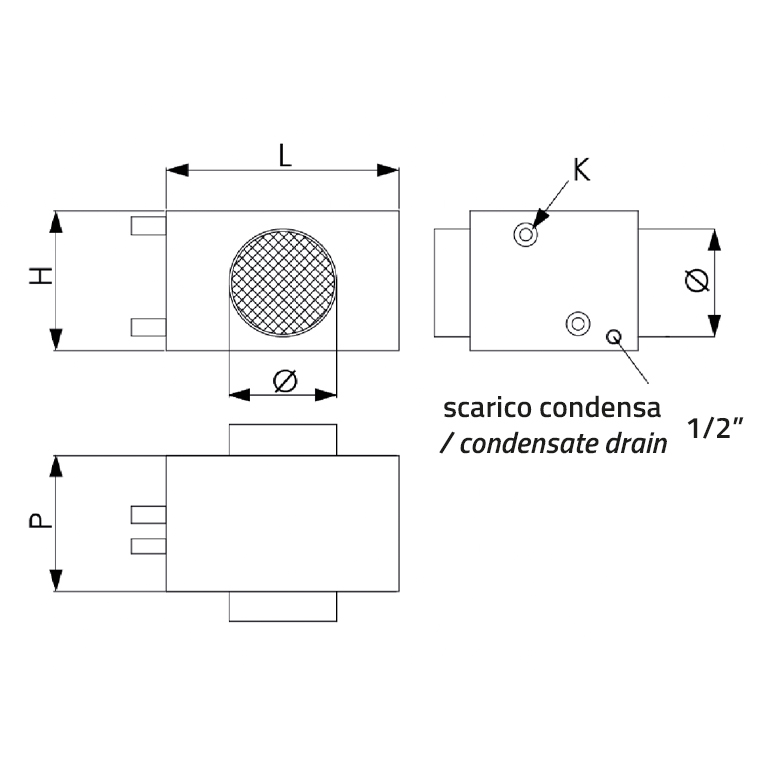

MOD.	150 m³/h and 1 Kw
L [mm]	310
H [mm]	200
P [mm]	300
Ø [mm]	125
K [inch]	1/2”

ACC400018

COLD / HOT WATER COIL - 220m³/h e 1,6Kw

MOD.	220 m³/h and 1,6 Kw
L [mm]	360
H [mm]	270
P [mm]	300
Ø [mm]	160
K [inch]	1/2”

ACC400019

COLD / HOT WATER COIL - 350m³/h e 2,2Kw

MOD.	350 m³/h and 2,2 Kw
L [mm]	360
H [mm]	270
P [mm]	300
Ø [mm]	160
K [inch]	1/2”

ACC400020

COLD / HOT WATER COIL - 500m³/h e 3,2Kw

MOD.	500 m³/h and 3,2 Kw
L [mm]	460
H [mm]	270
P [mm]	300
Ø [mm]	200
K [inch]	1/2”

ACC400021

COLD / HOT WATER COIL - 800m³/h e 5,7Kw

MOD.	800 m³/h and 5,7 Kw
L [mm]	650
H [mm]	330
P [mm]	300
Ø [mm]	250
K [inch]	1/2”

ACC400022

COLD / HOT WATER COIL - 1200m³/h e 7,8Kw

MOD.	1200 m³/h and 7,8 Kw
L [mm]	785
H [mm]	430
P [mm]	350
Ø [mm]	315
K [inch]	3/4”

ACC400023

COLD / HOT WATER COIL - 1600m³/h e 9,7Kw

MOD.	1600 m³/h and 9,7 Kw
L [mm]	780
H [mm]	520
P [mm]	350
Ø [mm]	315
K [inch]	3/4”

ACC400024

COLD / HOT WATER COIL - 2200m³/h e 15Kw

MOD.	2200 m³/h and 15 Kw
L [mm]	780
H [mm]	520
P [mm]	400
Ø [mm]	355
K [inch]	3/4”

ACC400025

COLD / HOT WATER COIL - 3200m³/h e 22Kw

MOD.	3200 m³/h and 22 Kw
L [mm]	895
H [mm]	660
P [mm]	450
Ø [mm]	400
K [inch]	1"

ACC400026

COLD / HOT WATER COIL - 4000m³/h e 29Kw

MOD.	4000 m³/h and 29 Kw
L [mm]	1000
H [mm]	740
P [mm]	450
Ø [mm]	400
K [inch]	1"
