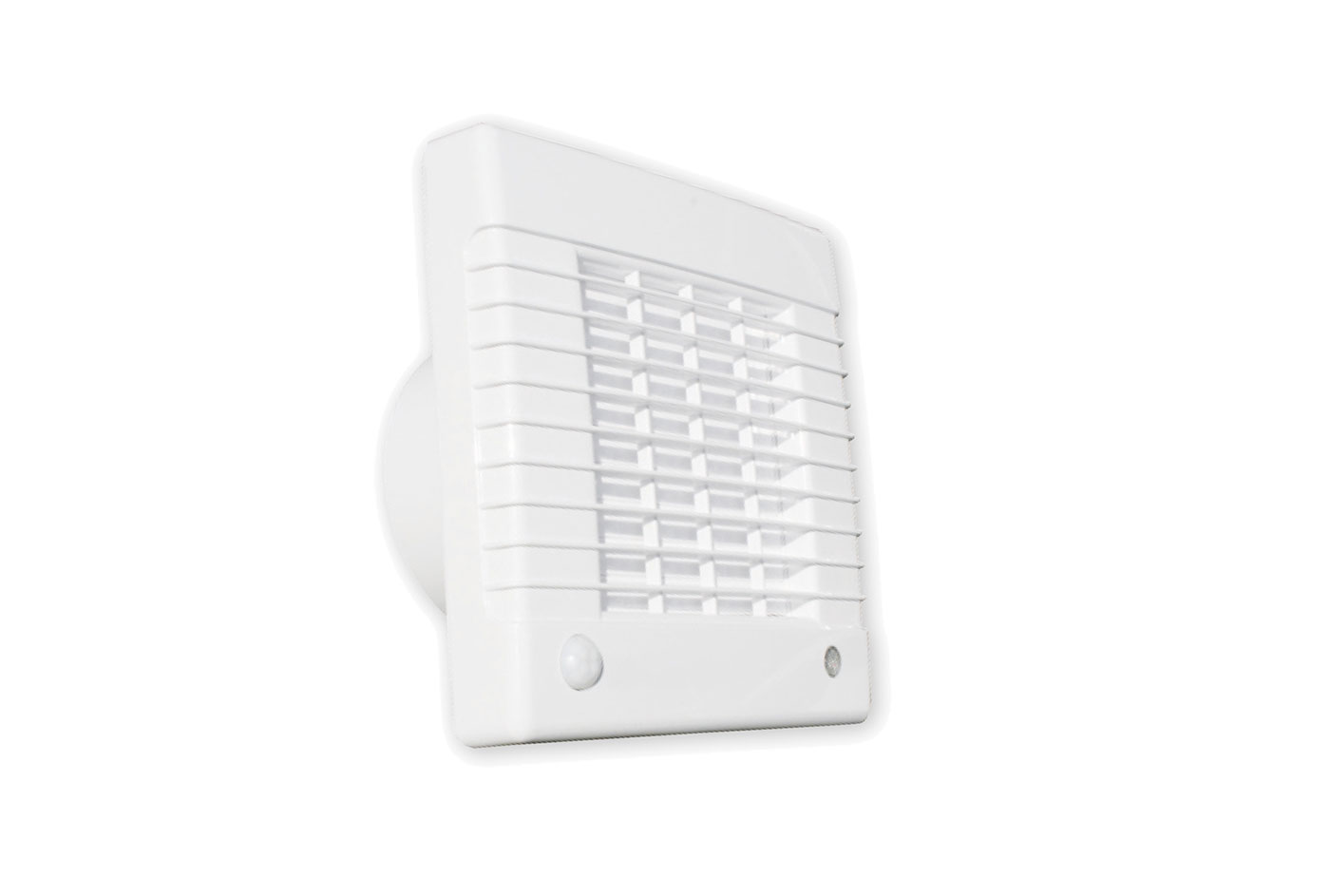

HIGH Electric extractor

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of ABS
• Easy fastening with flat-head screws
• 7-blade fan
• Automatic flap opening
• Ideal for ventilation of small- to medium-sized rooms
• HIGH version that can be operated via a switch
• OPEN T version with adjustable timer option from 2 to 30 minutes
• OPEN TH version with adjustable timer option from 2 to 30 minutes and adjustable humidity sensor in the range of 60 to 90%

Models

Available Models (7)

11104012

"HIGH" ELECTRIC EXTRACTOR, Ø100

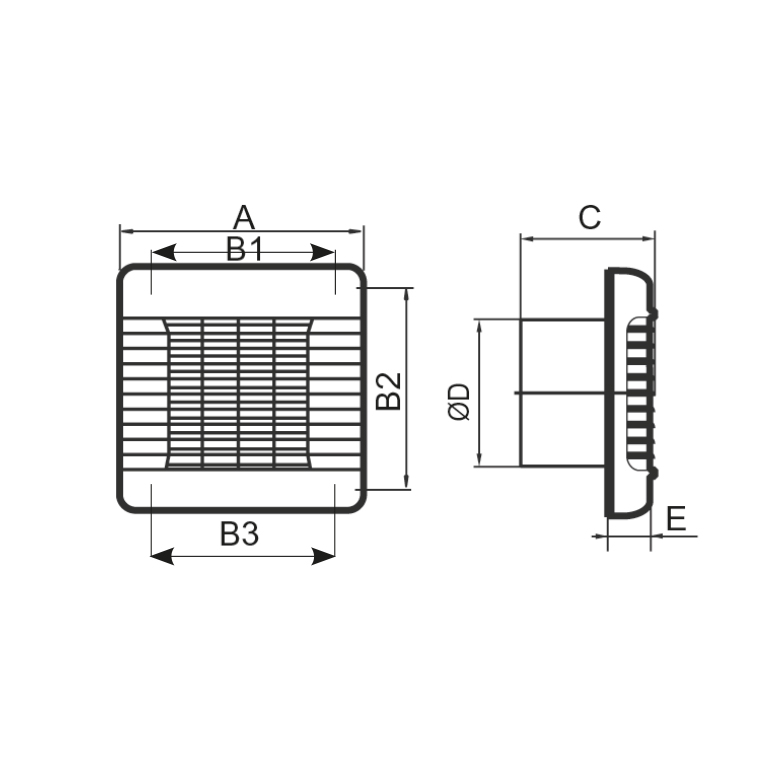

MODEL/DIMENSIONS	HIGH Ø 100
A [mm]	165
B1 [mm]	150
B2 [mm]	150
B3 [mm]	150
C [mm]	92
Ø D [mm]	100
E [mm]	32

11104013

"HIGH" ELECTRIC EXTRACTOR, Ø125

MODEL/DIMENSIONS	HIGH Ø 125
A [mm]	190
B1 [mm]	128
B2 [mm]	173
B3 [mm]	174
C [mm]	98
Ø D [mm]	125
E [mm]	33

11104014

"HIGH" ELECTRIC EXTRACTOR, Ø150

MODEL/DIMENSIONS	HIGH Ø 150
A [mm]	212
B1 [mm]	150
B2 [mm]	195
B3 [mm]	196
C [mm]	114
Ø D [mm]	150
E [mm]	33

11104016

"HIGH T" ELECTRIC EXTRACTOR, Ø100

MODEL/DIMENSIONS	HIGH T Ø 100
A [mm]	165
B1 [mm]	150
B2 [mm]	150
B3 [mm]	150
C [mm]	92
Ø D [mm]	100
E [mm]	32

11104017

"HIGH T" ELECTRIC EXTRACTOR, Ø125

MODEL/DIMENSIONS	HIGH T Ø 125
A [mm]	190
B1 [mm]	128
B2 [mm]	173
B3 [mm]	174
C [mm]	98
Ø D [mm]	125
E [mm]	33

11104018

"HIGH T" ELECTRIC EXTRACTOR, Ø150

MODEL/DIMENSIONS	HIGH T Ø 150
A [mm]	212
B1 [mm]	150
B2 [mm]	195
B3 [mm]	196
C [mm]	114
Ø D [mm]	150
E [mm]	33

11104024

"HIGH TH" ELECTRIC EXTRACTOR, Ø100

MODEL/DIMENSIONS	HIGH TH Ø 100
A [mm]	165
B1 [mm]	150
B2 [mm]	150
B3 [mm]	150
C [mm]	92
Ø D [mm]	100
E [mm]	32
