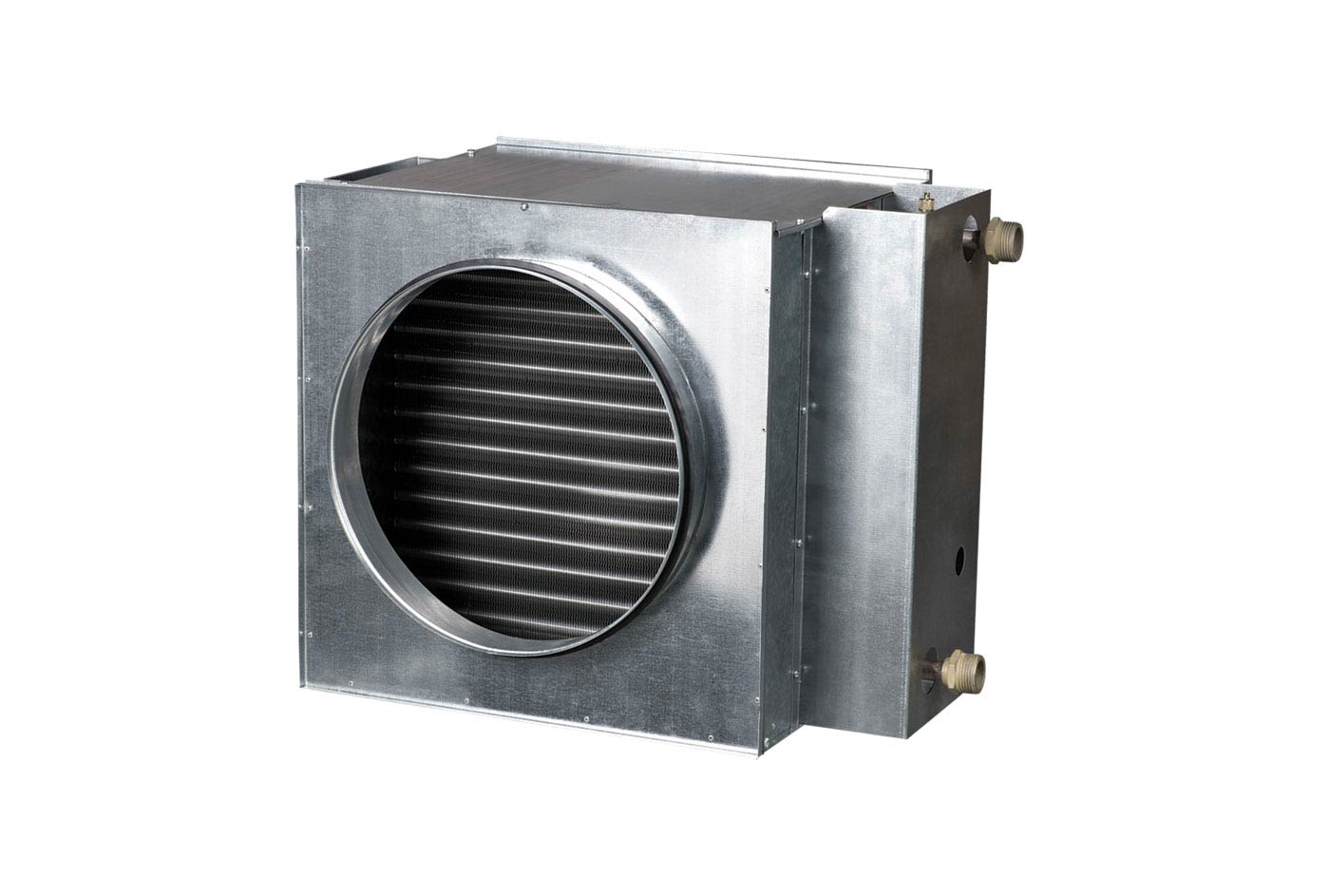

Immagine IMG_30370025.jpg

View documentation

Hot water battery for heat recovery unit

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• To be used indoors with ambient temperature between +1 and +50°C
• Max temperature: +100°C
• Maximum pressure at +100°C: 16 MPa (16 bar)
• Designed for cold weather and temperature zones
• Copper hoses, aluminium finned pack
• Galvanized steel case

Models

Available Models (6)

30370025

HOT WATER COIL FOR HEAT-RECOVERY UNITS 200-2

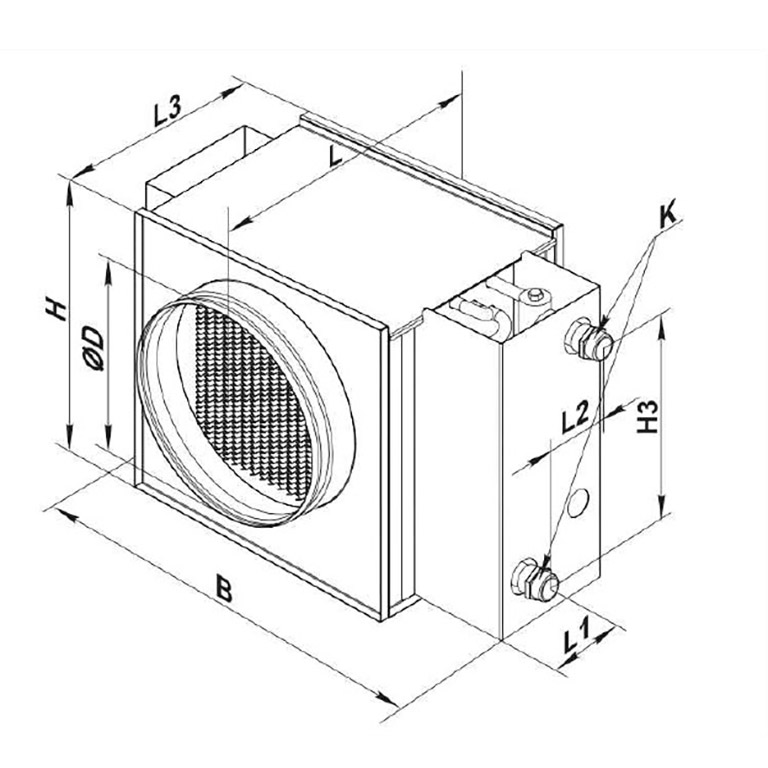

MOD.	200 - 2
Ø D [mm]	198
B [mm]	400
H [mm]	280
H3 [mm]	200
L[mm]	300
L1 [mm]	32
L2 [mm]	43
L3 [mm]	220
K [mm]	G 3/4”

30370030

HOT WATER COIL FOR HEAT-RECOVERY UNITS 200-4

MOD.	200 - 4
Ø D [mm]	198
B [mm]	400
H [mm]	280
H3 [mm]	200
L[mm]	300
L1 [mm]	28
L2 [mm]	65
L3 [mm]	220
K [mm]	G 3/4”

30370035

HOT WATER COIL FOR HEAT-RECOVERY UNITS 250-2

MOD.	250 - 2
Ø D [mm]	248
B [mm]	470
H [mm]	350
H3 [mm]	270
L[mm]	350
L1 [mm]	32
L2 [mm]	43
L3 [mm]	270
K [mm]	G 1”

30370040

HOT WATER COIL FOR HEAT-RECOVERY UNITS 250-4

MOD.	250 - 4
Ø D [mm]	248
B [mm]	470
H [mm]	350
H3 [mm]	270
L[mm]	350
L1 [mm]	28
L2 [mm]	65
L3 [mm]	270
K [mm]	G 1”

30370045

HOT WATER COIL FOR HEAT-RECOVERY UNITS 315-2

MOD.	315 - 2
Ø D [mm]	313
B [mm]	550
H [mm]	430
H3 [mm]	350
L[mm]	450
L1 [mm]	57
L2 [mm]	43
L3 [mm]	370
K [mm]	G 1”

30370050

HOT WATER COIL FOR HEAT-RECOVERY UNITS 315-4

MOD.	315 - 4
Ø D [mm]	313
B [mm]	550
H [mm]	430
H3 [mm]	350
L[mm]	450
L1 [mm]	53
L2 [mm]	65
L3 [mm]	370
K [mm]	G 1”
