Configure View documentation

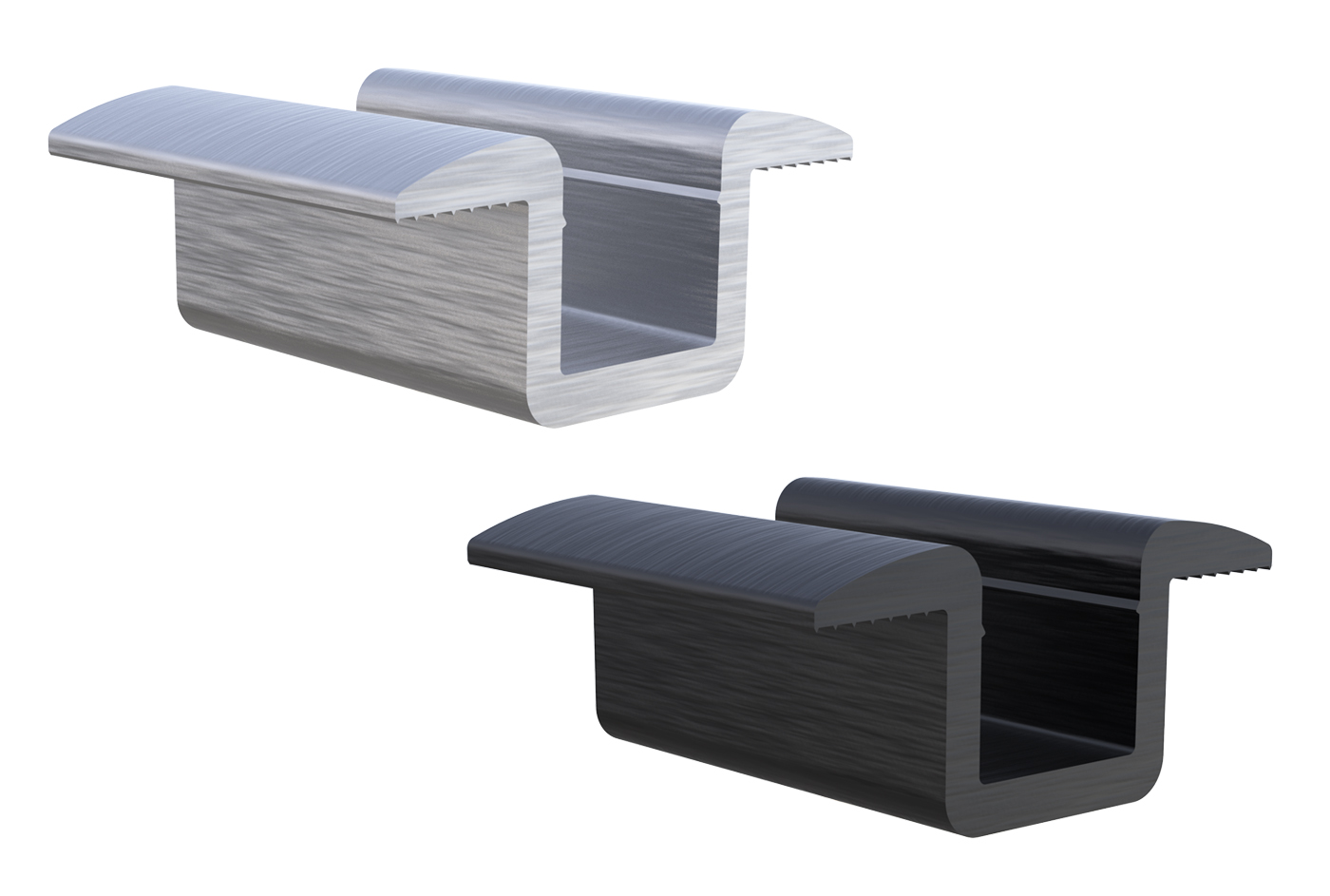

HSC/40 Central wall bracket

Fv Power

TECHNICAL SPECIFICATIONS:

• Material: aluminium alloy 6060
• Bracket length: 40mm
• Usable for all measurements of photovoltaic panels
• Hole Ø 8.5 mm
• Also available in black painted version, on request

Models

Available Models (4)

11111060

CENTRAL BRACKET HSC-40

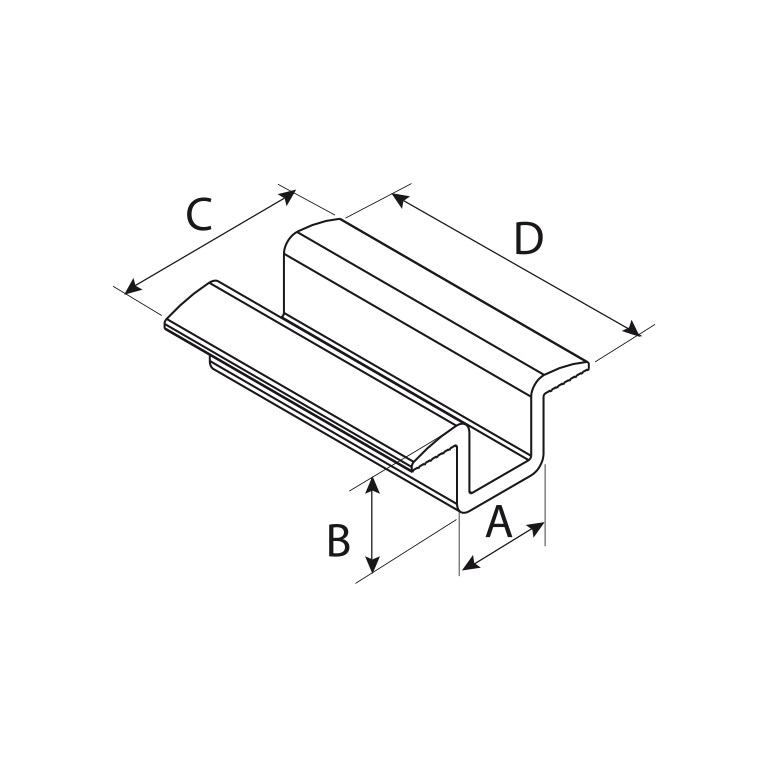

A [mm]	21
B [mm]	19,5
C [mm]	43
D [mm]	40
Ø FORO [mm]	8,5

11111060BOX

CENTRAL BRACKET HSC-40 - BOX 50 pcs

A [mm]	21
B [mm]	19,5
C [mm]	43
D [mm]	40
Ø FORO [mm]	8,5

FVD200001

LAETRAL BRACKET HSC/40 - BLACK

A [mm]	21
B [mm]	19,5
C [mm]	43
D [mm]	40
Ø FORO [mm]	8,5

FVD200001BOX

LAETRAL BRACKET HSC/40 - BLACK- BOX 50pz

A [mm]	21
B [mm]	19,5
C [mm]	43
D [mm]	40
Ø FORO [mm]	8,5

Download

Documentation

Technical Data Sheet

it en fr de

TECHNICAL SPECIFICATIONS:

Available Models (4)

Tailor-made solutions

Documentation

Technical Data Sheet
