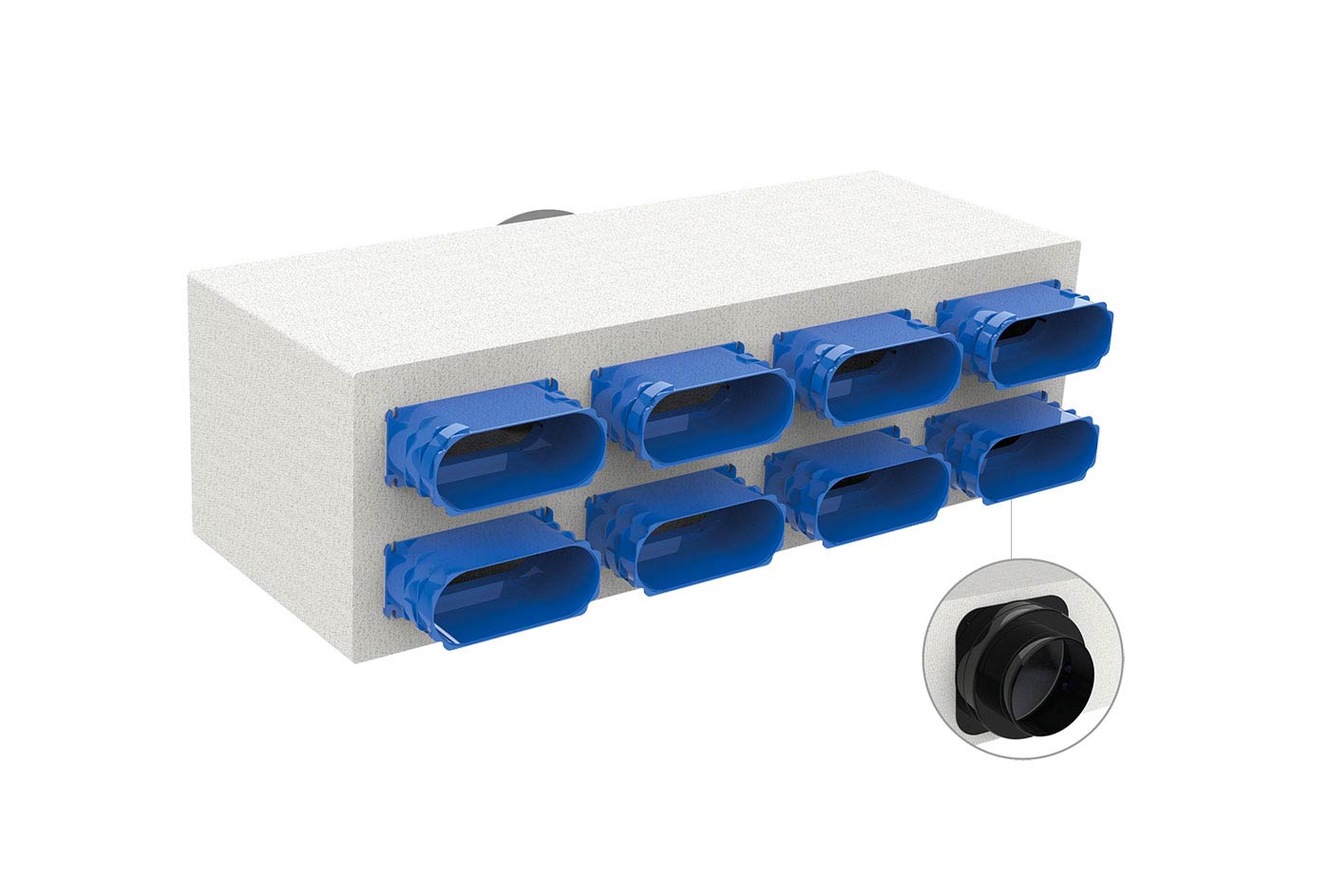

Insulated box in metal sheet for flexible ducted pipe 4 - 6 - 8 - 10 - 12 oval outputs 120 x 35

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• External insulation in 3 mm thick polyethylene
• Air inlet collar with double diameter with hose connection Ø 150 – 200
• Outgoing collars as shown in the table
• Complete with brackets for ceiling mounting
• Holes provided for the entry of the upper and rear collar
• Plenum supplied pre-assembled

Models

Available Models (5)

ACD600007

PLÉNUM FOR FLEXIBLE HOSE WITH 4 OVAL OUTLETS 120X35

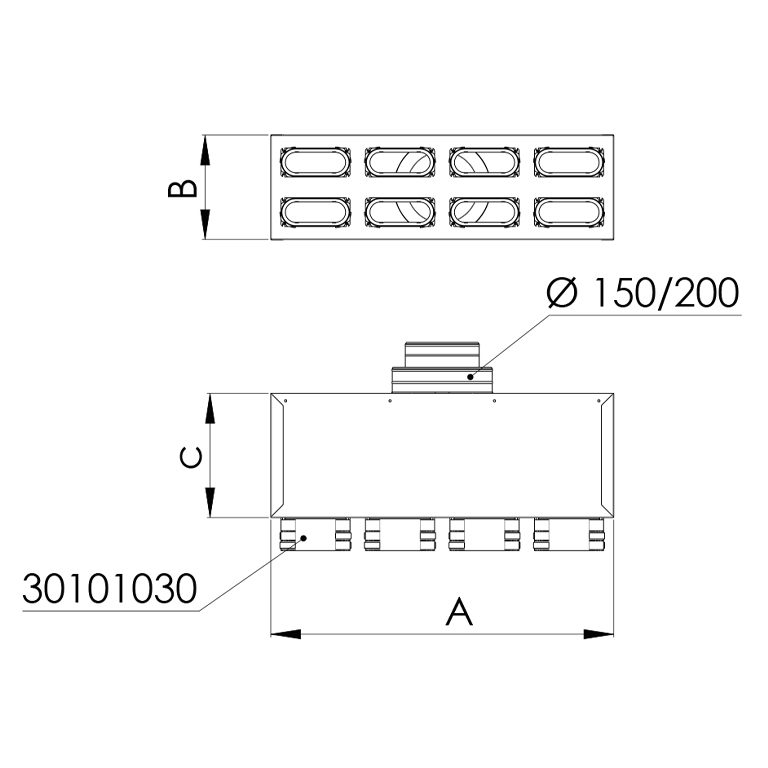

A [mm]	350
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - [mm]	4 OVALS 120 x 35

ACD600010

PLÉNUM FOR FLEXIBLE HOSE WITH 6 OVAL OUTLETS 120X35

A [mm]	520
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - [mm]	6 OVALS - 120 x 35

ACD600013

PLÉNUM FOR FLEXIBLE HOSE WITH 8 OVAL OUTLETS 120X35

A [mm]	690
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - [mm]	8 OVALS - 120 x 35

ACD600016

PLÉNUM FOR FLEXIBLE HOSE WITH 10 OVAL OUTLETS 120X35

A [mm]	860
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - [mm]	10 OVALS - 120 x 35

ACD600019

INSULATED SHEET METAL PLENUM FOR FLEXIBLE HOSE WITH 12 OVAL OUTLETS 120X35

A [mm]	1030
B [mm]	210
C [mm]	250
INPUT Ø [mm]	150 / 200
No.of OUTLETS - [mm]	12 OVALS - 120 x 35
