Immagine IMG_ACD600020.jpg
View documentation

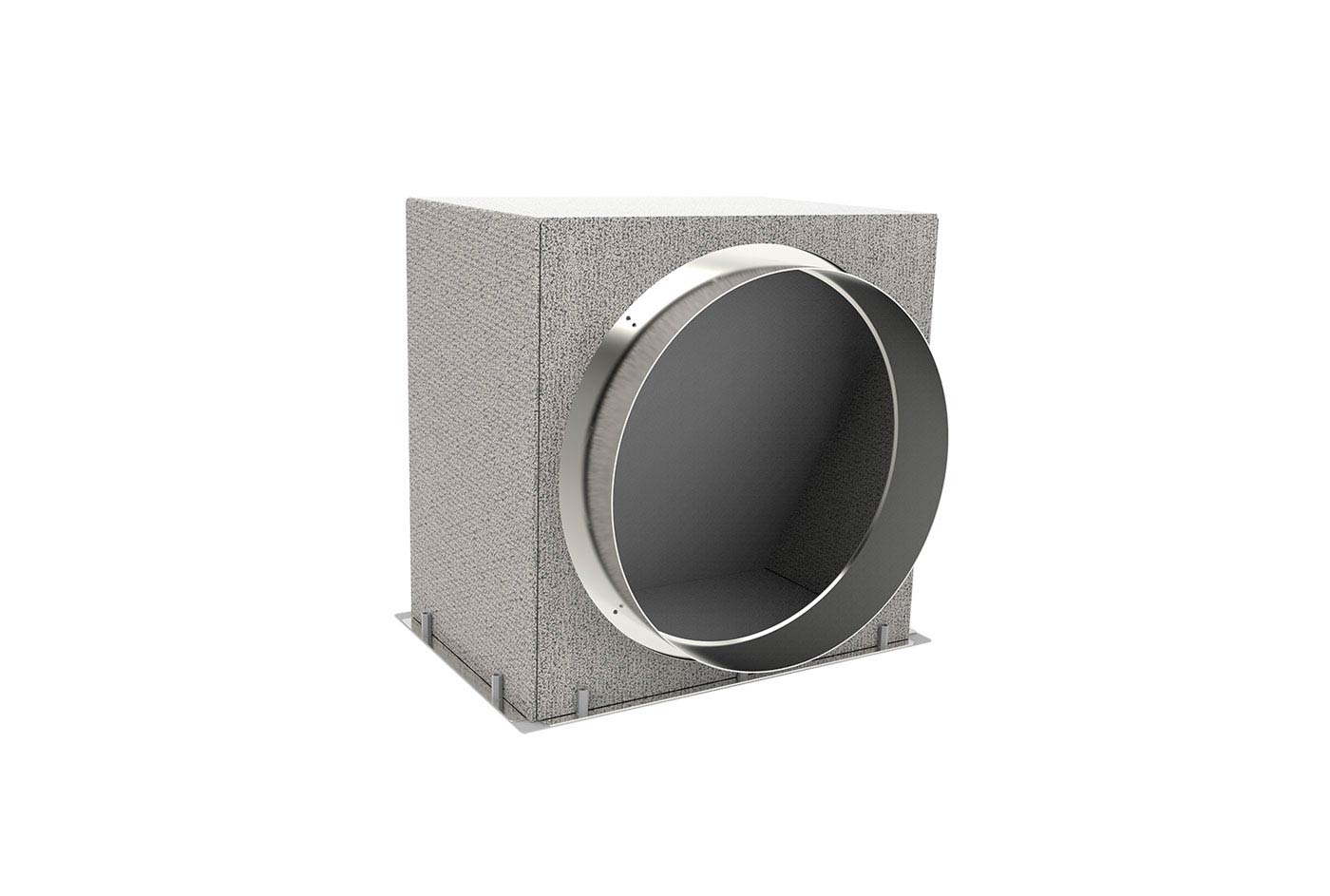

Insulated metal sheet filter holder box

  • Apply.co
  • Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of galvanized metal sheet
• External insulation in 3 mm thick polyethylene
• Equipped with 2 inlet / outlet collars
• Filter not included in price

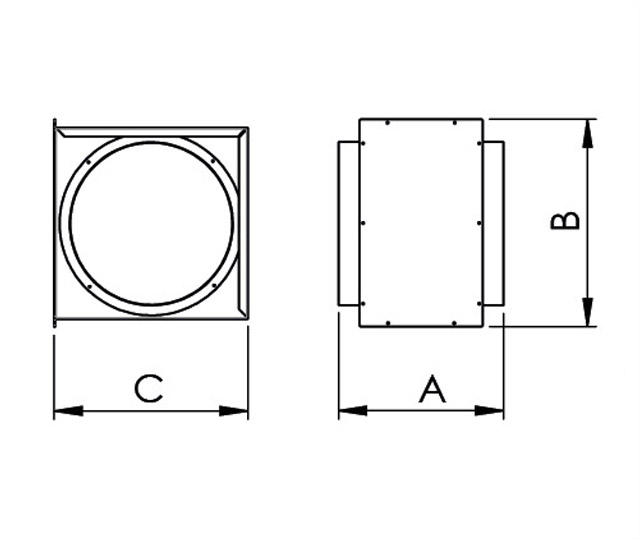

Models

Available Models (5)

ACD600020

FILTER HOUSING IN INSULATED SHEET METAL, D. 150/200

A [mm] 397
B [mm] 270
C [mm] 246
INPUT Ø [mm] 150 / 200
OUTLET Ø [mm] 150 / 200

ACD600021

FILTER HOUSING IN INSULATED SHEET METAL, D. 250

A [mm] 294
B [mm] 320
C [mm] 296
INPUT Ø [mm] 250
OUTLET Ø [mm] 250

ACD600022

FILTER HOUSING IN INSULATED SHEET METAL, D. 300

A [mm] 294
B [mm] 420
C [mm] 396
INPUT Ø [mm] 300
OUTLET Ø [mm] 300

ACD600023

FILTER HOUSING IN INSULATED SHEET METAL, Ø 350

A [mm] 294
B [mm] 370
C [mm] 346
INPUT Ø [mm] 350
OUTLET Ø [mm] 350

ACD600024

FILTER HOUSING IN INSULATED SHEET METAL, D. 450

A [mm] 294
B [mm] 470
C [mm] 446
INPUT Ø [mm] 450
OUTLET Ø [mm] 450

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
