Intake grille in white painted aluminium with removable filter for false ceiling
Project Wind- Air diffusion

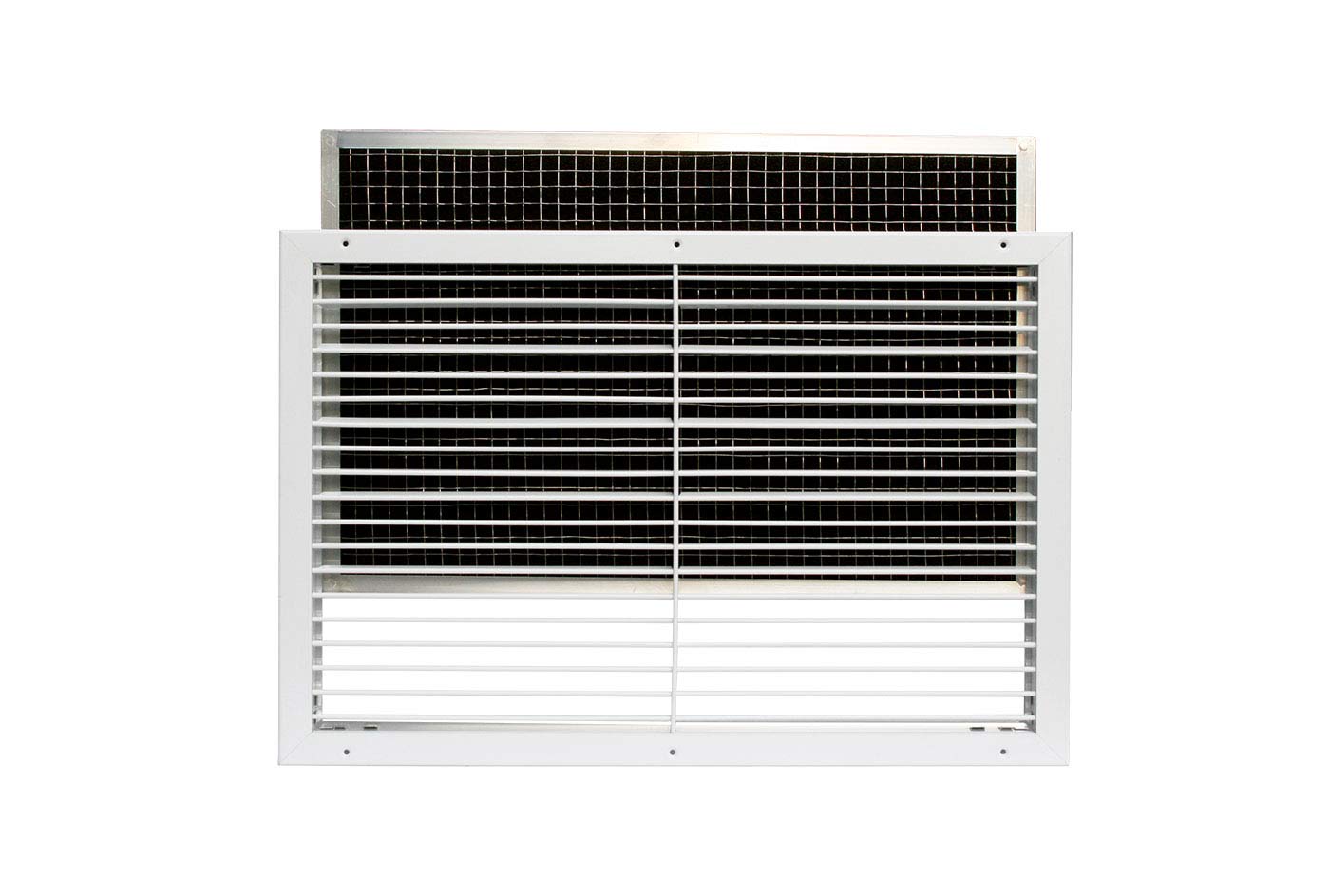

Intake air grille in white painted aluminium with removable filter.
The grille consists of fixed horizontal fins.
It is fixed to the false ceiling using screws.
TECHNICAL SPECIFICATIONS:
• Made of white-painted aluminum
• Fastening by means of screws
• For wall / ceiling installation
• Filtration degree G2 (ref. EN 779/2012)
Models
Available Models (6)
WB11161525
ALUMINIUM RETURN GRILLES WITH FILTER PAINTED WHITE 600x400 REMOVABLE FILTER

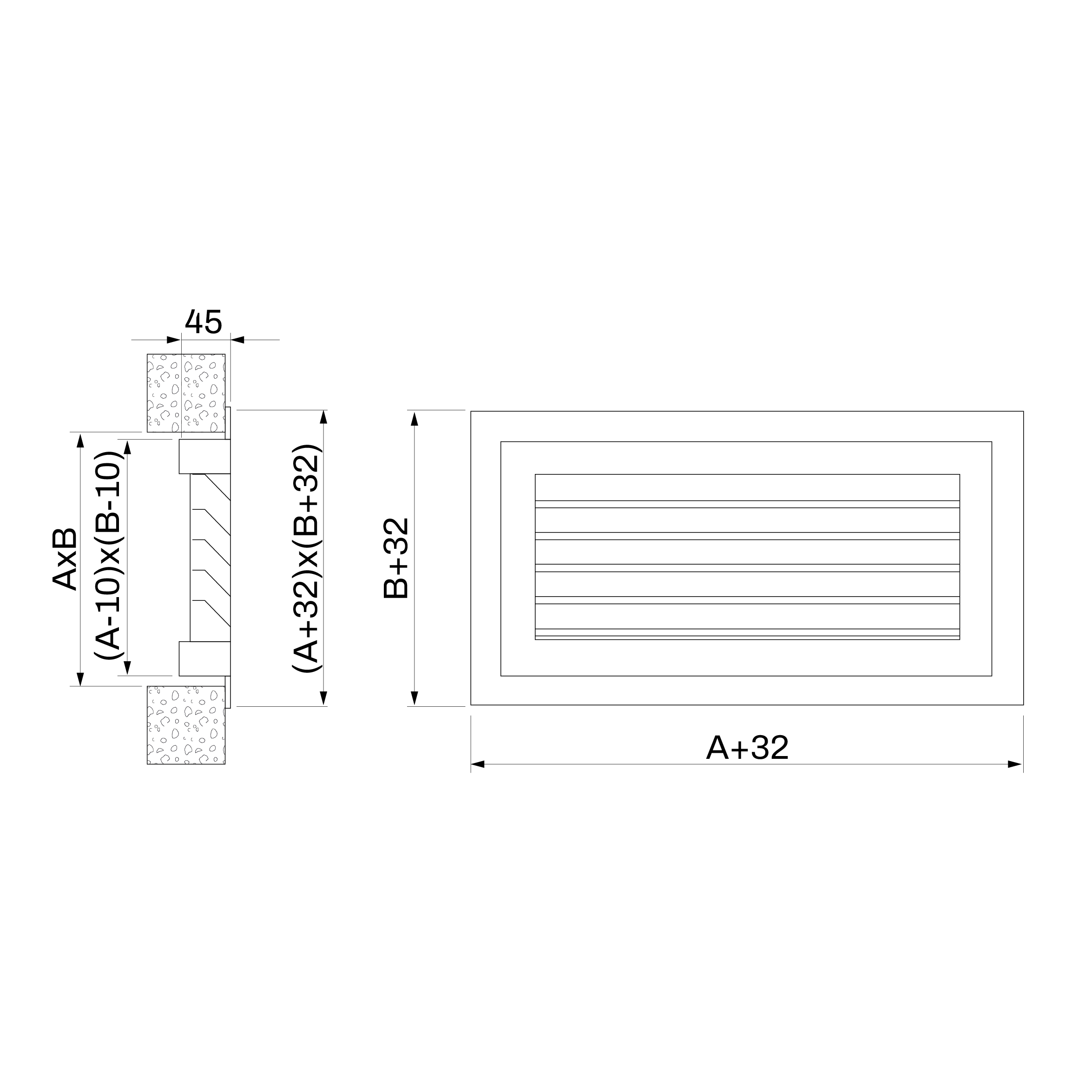

| INSTALLATION HOLE AxB [mm] | 600 x 400 |
|---|---|
| EXTERNAL DIMENSIONS [mm] | 632 x 432 |
| BACK NECK [mm] | 590 x 390 |
| REAR COLLAR DEPTH [mm] | 45 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
