KIT RAPID for PROAIR PACK 3 zones with Ø 150 connections and 15° inclined flap grilles

Galaxy
Temperature regulation and control systems
Air diffusion

The “KIT RAPID” are designed for “Proair Pack” ventilation systems.
When creating a ducted air conditioning system, the pre-packaged kits facilitate the customer in choosing the items necessary for the distribution of air in the individual environments, without the possibility of error.
The “KIT RAPID” are available for the “Proair Pack” systems with 2 – 3 – 4 – 5 – 6 zones with circular connections of Ø 125 / 150 / 200 mm.
The possibility of choosing between delivery grilles with adjustable flaps, with 15° adjustable deflector and with linear diffusers with 2 slots, provides everything needed to create and complete the installation of the ducted unit with high quality products, with every detail covered from a technical, functional and aesthetic point of view.
The regulation of the temperature and air flow of the single zone is managed by the PROAIR PACK system chronothermostats that are used to achieve the maximum performance and optimum comfort inside homes or offices.
ATTENTION: the plenum is included in the “Proair Pack”

Caratteristiche tecniche

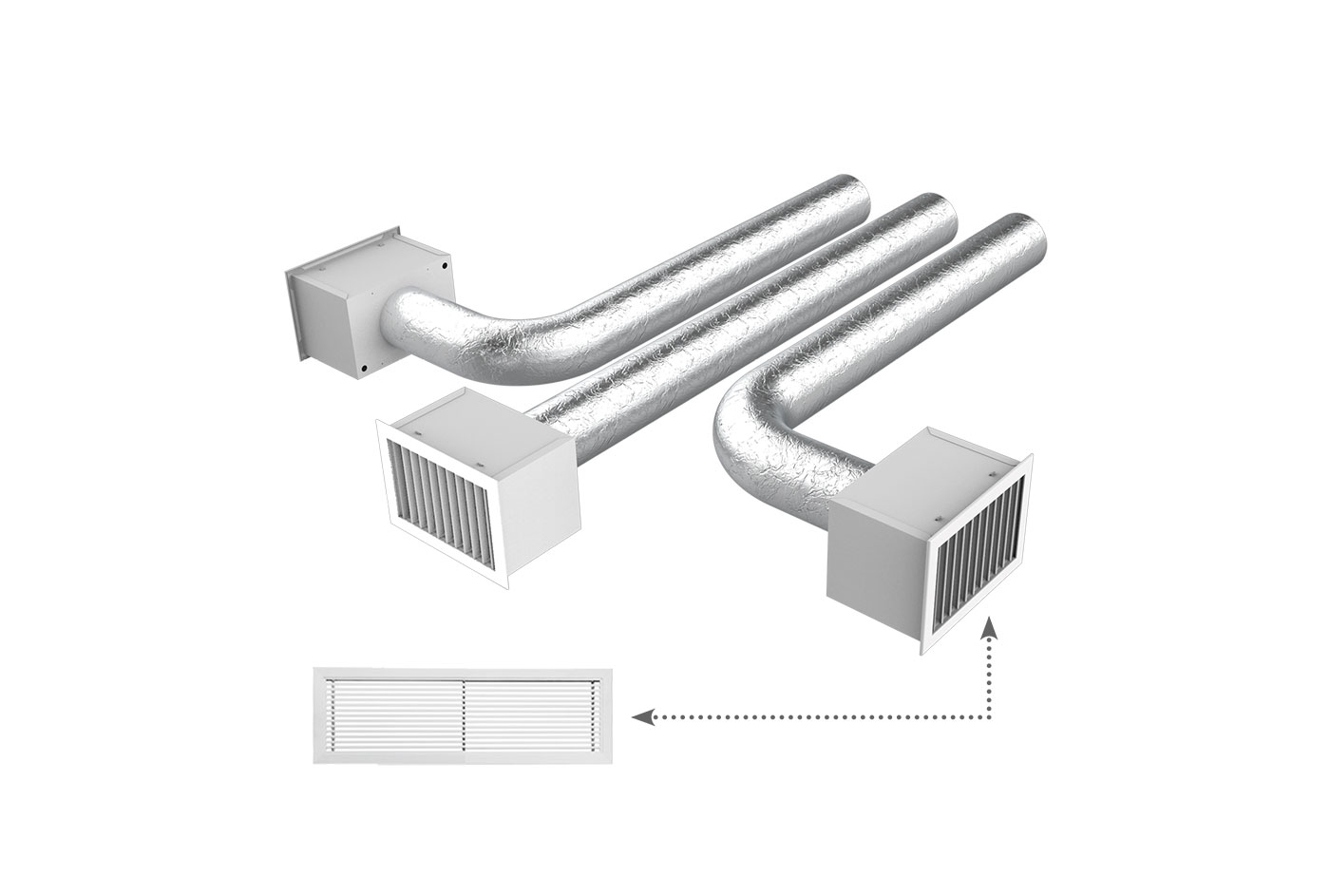

The kit consists of:
• No. 3 linear nozzles in white-painted aluminum with fixed 15° angled fin frame – installation opening 300 x 150 mm, external size 335 x 185 mm, CODE PWC100106
• 3 insulated plenums with rear coupling for grille (332 x 132) COD. PWD100005
• 1 double-wall aluminium flexible hose Ø 152 mm 10 m COD. 11152152
• 1 white aluminium intake grille with filter installation hole 600 x 400 mm, external measurement 632 x 432 mm COD. WB11161525
• 6 hose clamps
Customisable on request
