KIT RAPID for PROAIR PACK 3 zones with Ø 150 connections and adjustable flap grilles

Galaxy
Temperature regulation and control systems
Air diffusion

The “KIT RAPID” are designed for “Proair Pack” ventilation systems.
When creating a ducted air conditioning system, the pre-packaged kits facilitate the customer in choosing the items necessary for the distribution of air in the individual environments, without the possibility of error.
The KIT RAPID are available for the “Proair Pack” systems with 2 – 3 – 4 – 5 – 6 zones with circular connections of Ø 125 / 150 / 200 mm.
The possibility of choosing between delivery grilles with adjustable flaps, with 15° adjustable deflector and with linear diffusers with 2 slots, provides everything needed to create and complete the installation of the ducted unit with high quality products, with every detail covered from a technical, functional and aesthetic point of view.
The regulation of the temperature and air flow of the single zone is managed by the PROAIR PACK system chronothermostats that are used to achieve the maximum performance and optimum comfort inside homes or offices.
ATTENTION: the plenum is included in the “Proair Pack”

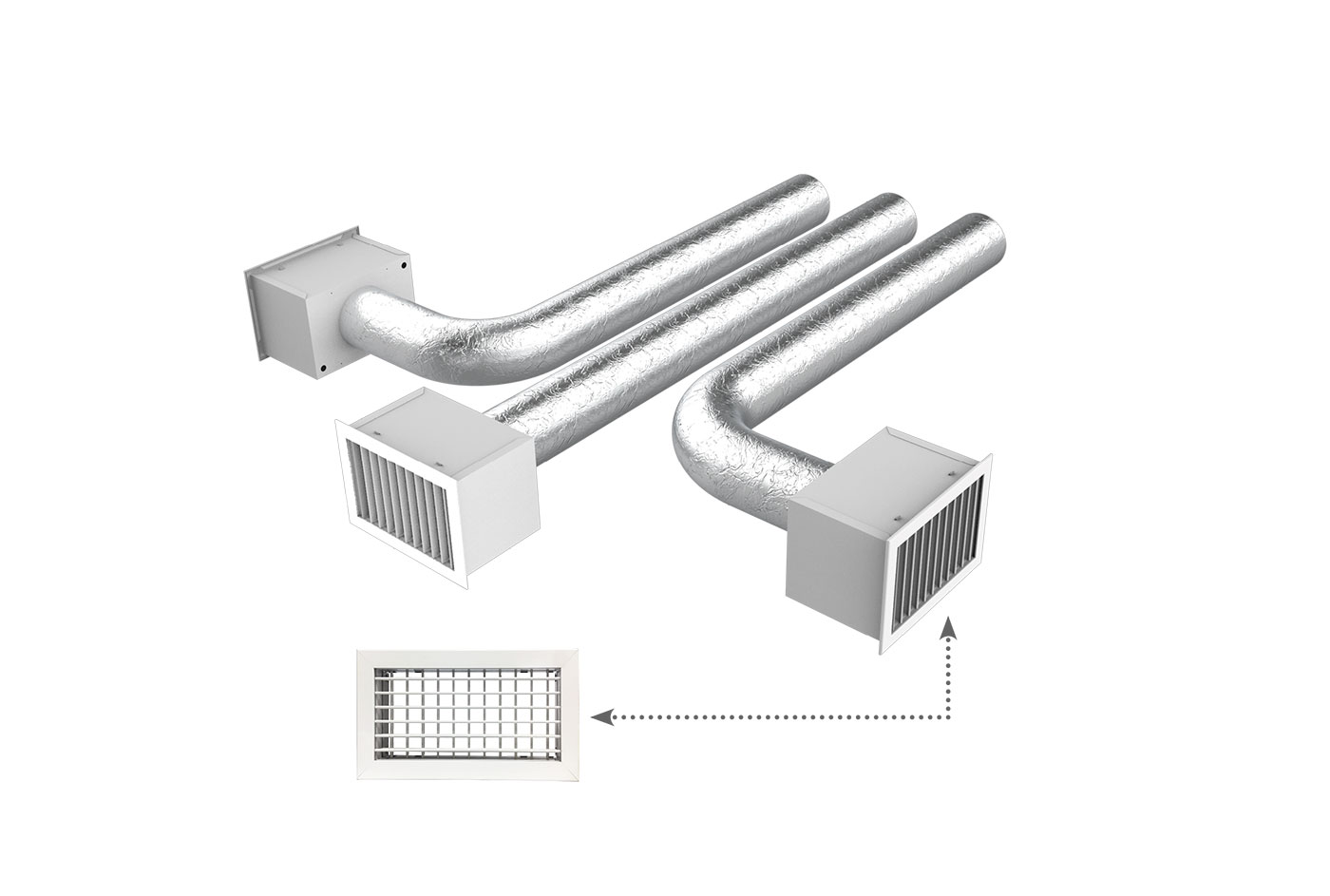

THE KIT CONSISTS OF:

• N°3 white-painted aluminium supply air grilles, installation opening 300 × 150 mm, overall dimensions 336 × 186 mm, CODE WB11161512
• N°3 insulated sheet metal plenums designed for 3 inlet connections for grilles (installation opening 300 × 150 mm), CODE PWD100005
• 1 double-wall aluminium flexible hose Ø 152 mm 10 m COD. 11152152
• No. 1 white-painted aluminium return air grille with filter, installation opening 1000 × 500 mm, overall dimensions 1032 × 532 mm, CODE WBF11161556
Customisable on request
