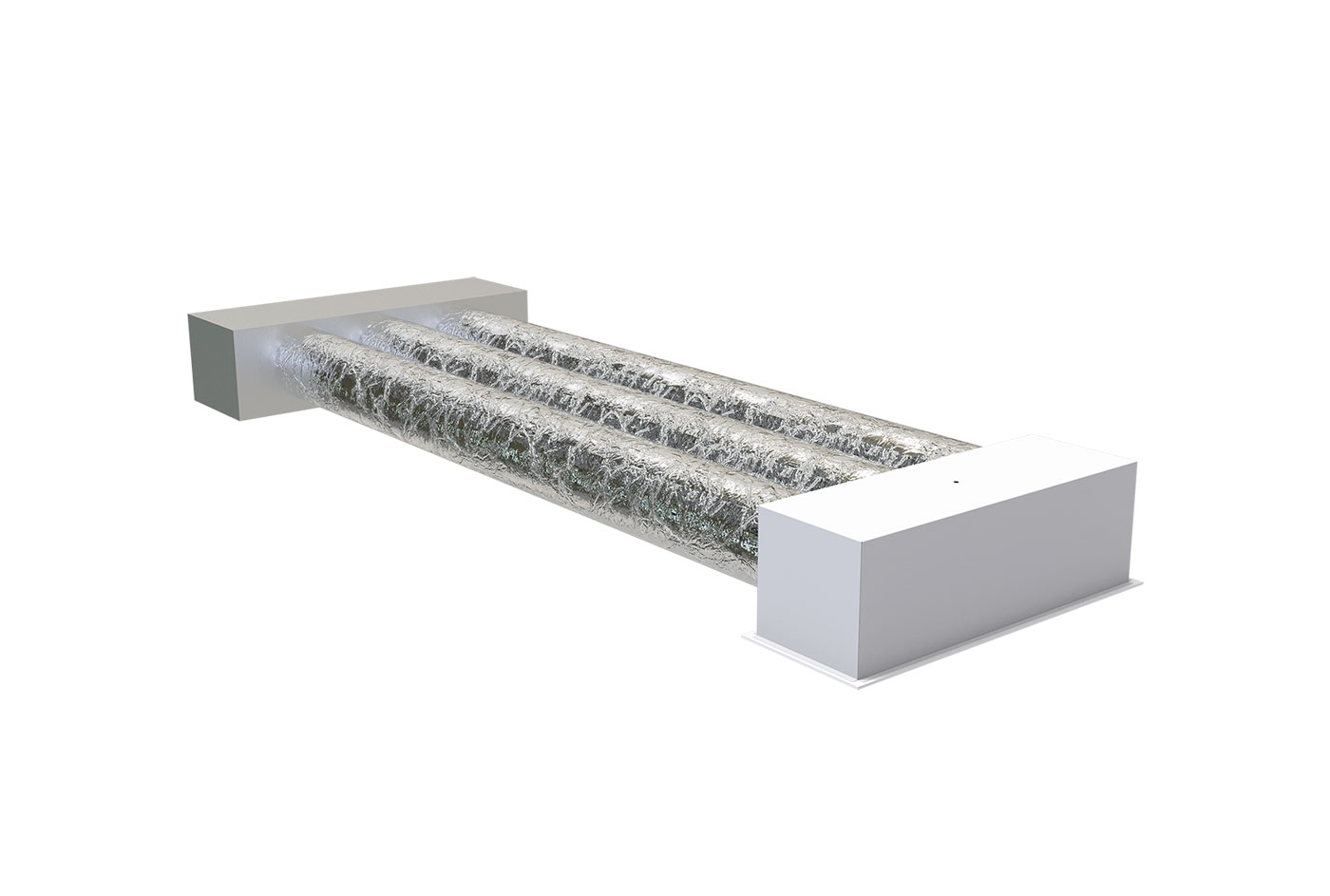

KIT RIPRESA Recovery KIT for ducted units MOD.1-2-3

Project Wind
Air diffusion

THE KIT CONTAINS:

• no.1 800×300 intake grille with fixed flaps tilted at 45° with removable filter in white painted aluminium
• no.3 collars for plenum mod. B2 Ø150/200 mm
• no.1 plenum 800x300x250 for intake grille with fixed flaps tilted at 45° and removable filter
• no.3 electro-galvanised metal sheet collars for plenums from Ø151 mm to Ø200 mm
• n has 1 thermal-acoustic flexible ducted pipe in aluminium double armoured wall ¿203 mm L.10 m
• 6 Hose clamp 200×220 mm
• no.1 tailor-made delivery / return plenum in aluminised PAL for ducted model 1, model 2 and model 3

Models

Available Models (3)

PWD301301

KIT FOR RETURN AIR - DUCTED UNITS - MOD.1 PAL

PLENUM MODEL	11161605 MOD. 1
INTERNAL HEIGHT a [mm]	on request up to 300
INTERNAL WIDTH b [mm]	on request up to 1000
INTERNAL DEPTH c [mm]	280 mm fixed

PWD301302

KIT FOR RETURN AIR - DUCTED UNITS - MOD.2 PAL

PLENUM MODEL	11161606 MOD. 2
INTERNAL HEIGHT a [mm]	on request up to 400
INTERNAL WIDTH b [mm]	on request up to 1200
INTERNAL DEPTH c [mm]	280 mm fixed

PWD301303

"KIT FOR RETURN AIR - DUCTED UNITS - MOD.3 PAL"

PLENUM MODEL	11161607 MOD. 3
INTERNAL HEIGHT a [mm]	on request up to 400
INTERNAL WIDTH b [mm]	on request up to 1500
INTERNAL DEPTH c [mm]	280 mm fixed
