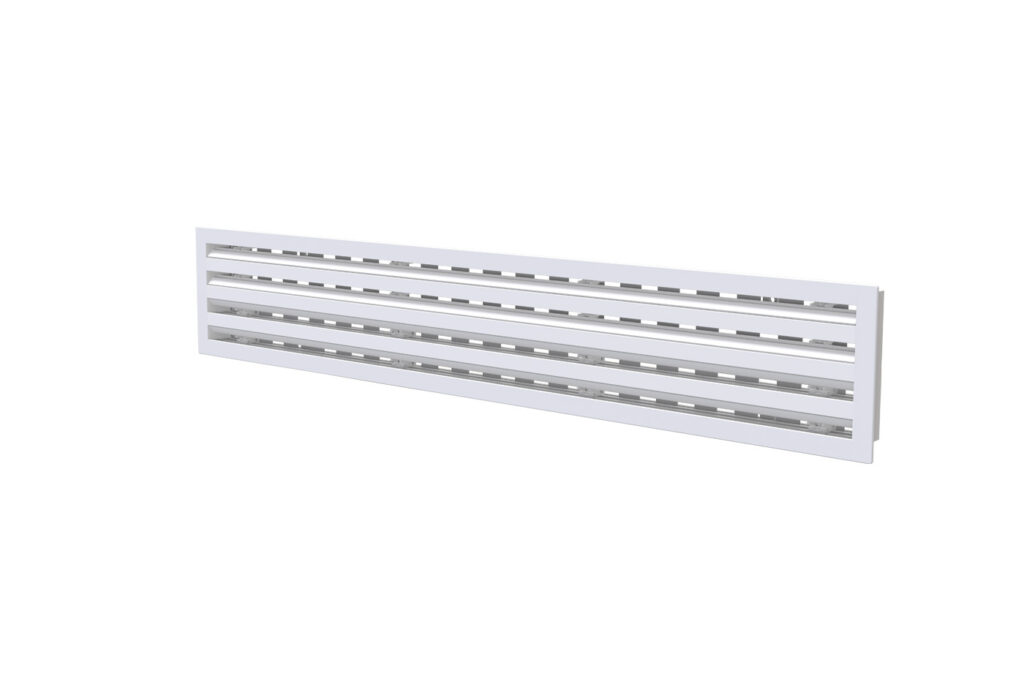

Linear diffuser in aluminium with damper and central baffle - 4 slots

Project Wind
Air diffusion

Visible linear diffuser in aluminium with adjustable calibration damper, central baffle with 4 slots, white.
Diffusers are used in places where the ceiling design has to be assured, such as offices, meeting rooms and hotels, ensuring uniform air diffusion and high thermal induction.
It is fixed to the plenum, which can be purchased separately, using front screws and mobile C brackets.
The damper is used to control the required amount of air and can be calibrated using a screwdriver.
Housings are obtained from inside the profiles to enable the mounting of adjustable PVC baffles.
By changing the baffle direction it is possible to deliver the air flow according to the place of installation, if necessary obtaining a Coanda effect.

TECHNICAL SPECIFICATIONS:

• Made of aluminum, matte white color
• Fastening with screws and brackets
• For wall / ceiling installation
• Galvanized sheet metal plenum coated with closed-cell polyethylene, available for separate purchase
• Built-in calibration damper
• Continuity kit available separately

Models

Available Models (5)

PWD301678

LINEAR DIFFUSER IN ALUMINIUM WITH DAMPER AND CENTRAL DEFLECTOR L600mm 4 SLOTS WHITE

L [mm]	600
L1 [mm]	645
A [mm]	183
B [mm]	166
C [mm]	60

Specification items

SPECIFICATION
Linear visible aluminum diffuser with 4 slots, damper, and central deflector
Linear visible aluminum supply and return diffuser. Available with 4 white slots. Patented fastening and joining elements are housed within the profiles.
Central deflector with adjustable teardrop profile.
Mounting to the plenum, available separately, is achieved using movable C-brackets and front screws. Manually adjustable sliding calibration damper.
Continuity kit, available separately.
PWD301678 L= 600mm for linear diffuser with 4 white slots
Brand Tecnosystemi S.p.A.

PWD301681

LINEAR DIFFUSER IN ALUMINIUM WITH DAMPER AND CENTRAL DEFLECTOR L800mm 4 SLOTS WHITE

L [mm]	800
L1 [mm]	845
A [mm]	183
B [mm]	166
C [mm]	60

Specification items

SPECIFICATION
Exposed aluminum linear diffuser with 4 slots, damper, and central deflector
Exposed aluminum linear diffuser for supply and return. Available with 4 white slots. Patented fastening and joining elements are housed inside the profiles.
Adjustable central deflector with teardrop profile.
Fixing to the plenum, available separately, is achieved using movable C-brackets and front screws. Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301681 L= 800mm for 4-slot white linear diffuser
Brand Tecnosystemi S.p.A.

PWD301684

LINEAR DIFFUSER IN ALUMINIUM WITH DAMPER AND CENTRAL DEFLECTOR L1000mm 4 SLOTS WHITE

L [mm]	1000
L1 [mm]	1045
A [mm]	183
B [mm]	166
C [mm]	60

Specification items

SPECIFICATIONS
Exposed linear aluminium diffuser with 4 slots, damper, and central deflector
Exposed linear aluminium diffuser for supply and return. Available with 4 slots, white colour. Patented fastening and joining elements are housed inside the profiles.
Adjustable central deflector with teardrop profile.
Fixing to the plenum, purchasable separately, is achieved by means of movable C-brackets and front screws. Manually adjustable sliding balancing damper.
Continuity kit, purchasable separately.
PWD301684 L= 1000mm for 4-slot linear diffuser, white colour
Brand Tecnosystemi S.p.A.

PWD301687

LINEAR DIFFUSER IN ALUMINIUM WITH DAMPER AND CENTRAL DEFLECTOR L1200mm 4 SLOTS WHITE

L [mm]	1500
L1 [mm]	1545
A [mm]	183
B [mm]	166
C [mm]	60

Specification items

SPECIFICATION
Exposed aluminum linear diffuser with 4 slots, damper, and central deflector
Exposed aluminum linear diffuser for supply and return. Available with 4 white slots. Patented fastening and joining elements are housed inside the profiles.
Adjustable central deflector with teardrop profile.
Mounting on the plenum, available separately, is carried out using movable C-brackets and front screws. Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301687 L= 1500mm for linear diffuser with 4 white slots
Brand Tecnosystemi S.p.A.

PWD301690

LINEAR DIFFUSER IN ALUMINIUM WITH DAMPER AND CENTRAL DEFLECTOR L2000mm 4 SLOTS WHITE

L [mm]	2000
L1 [mm]	2045
A [mm]	183
B [mm]	166
C [mm]	60

Specification items

SPECIFICATIONS
Exposed aluminum linear diffuser with 4 slots, damper, and central deflector
Exposed aluminum linear diffuser for supply and return. Available with 4 white slots. Patented fastening and joining elements are housed inside the profiles.
Adjustable central deflector with teardrop profile.
Fixing to the plenum, available separately, is carried out using movable C-brackets and front screws. Manually adjustable sliding balancing damper.
Continuity kit, available separately.
PWD301690 L= 2000mm for 4-slot white linear diffuser
Brand Tecnosystemi S.p.A.
