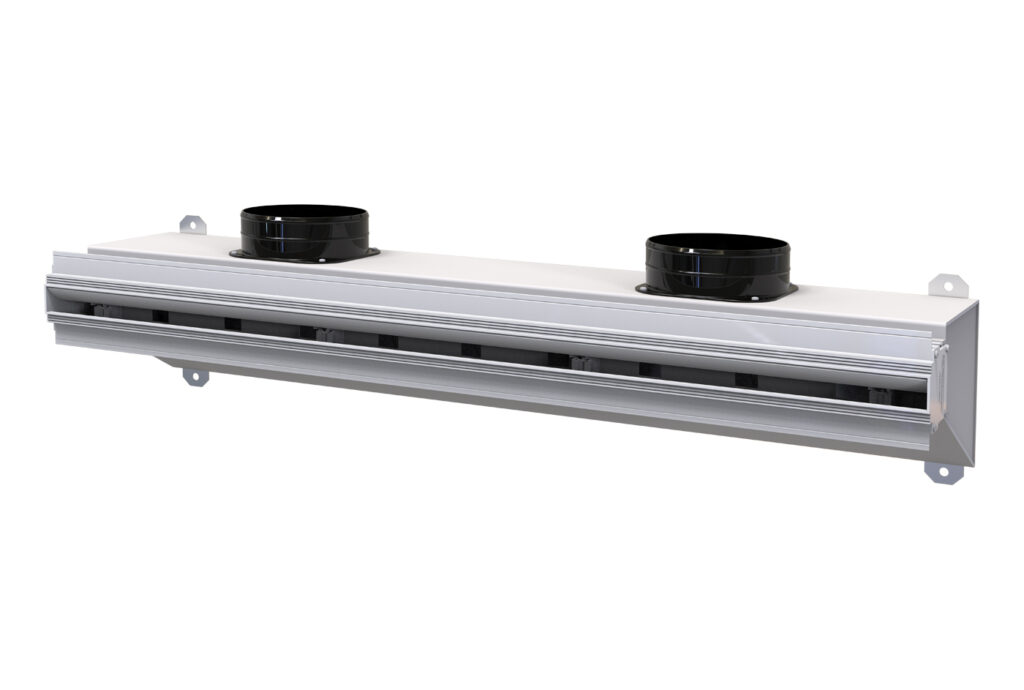

Linear retracting diffuser in aluminium with damper, insulated plenum and side baffles

Project Wind
Air diffusion

Linear retracting diffuser in aluminium with damper, insulated plenum and side baffles.
Available with 20 or 30 mm slot in black or white.
With a unique, original design, the plenum is made of galvanised metal sheet coated with closed-cell polyethylene.
This retracting linear diffuser combines design and function, blending perfectly into any room, with uniform air diffusion and high thermal induction.
The inlet collars are included in the pack are must be assembled according to installation needs.
The plenum has other built-in installation boxes for additional ducts and MVHR ducts, break as needed.
The damper is used to control the required amount of air and can be calibrated using a screwdriver.
Housings are obtained from inside the profiles to enable the mounting of adjustable PVC baffles.

TECHNICAL SPECIFICATIONS

• Linear retracting diffuser in aluminium, painted black or white
• Polyethylene coated galvanized sheet plenum with closed cells (sp.3mm)
• Suitable for both air delivery and air intake
• Adjustable damper
• Side deflectors to direct the airflow
• Air inlet collars included in the package (not assembled)
• Provisions for additional ducting and for VMC Ø75/90 (ref. ACD600089 – ACD600090)
• False ceiling mounting brackets included in delivery
• Compatible with PWC500027 continuity kit
• Fastening with screws and brackets
• For wall / ceiling installation
• Continuity kit available separately

Models

Available Models (20)

PWD301535

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L600mm SLOT 20mm WHITE

L [mm]	600
A [mm]	20
A1 [mm]	100
COUPLING Ø150	1

Specification items

SPECIFICATION
Concealed linear aluminum diffuser with damper, insulated plenum, and side deflectors.
Concealed linear aluminum diffuser for supply air and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum lined with closed-cell polyethylene and equipped with additional provisions with knock-out pre-cuts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and can be installed on the desired side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301535 L= 600mm for linear diffuser 20 mm SLOT white
Brand Tecnosystemi S.p.A.

PWD301536

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L600mm SLOT 20mm BLACK

L [mm]	600
A [mm]	20
A1 [mm]	100
COUPLING Ø150	1

Specification items

SPECIFICATION
Linear recessed aluminum diffuser with damper, insulated plenum, and side deflectors.
Linear recessed aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum coated with closed-cell polyethylene and equipped with additional provisions with pre-punched knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
Inlet collars are included in the package and can be installed on the relevant side according to requirements.
Manually adjustable sliding calibration damper.
Inside the profiles are housed patented fastening and joining elements that allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301536 L= 600mm for linear diffuser 20 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301543

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L600mm SLOT 30mm WHITE

L [mm]	600
A [mm]	30
A1 [mm]	110
COUPLING Ø150	1

Specification items

SPECIFICATION
Concealed linear aluminum diffuser with damper, insulated plenum, and side deflectors.
Concealed linear aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Plenum in galvanized sheet metal lined with closed-cell polyethylene and equipped with additional provisions with pre-punched knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and are installable on the relevant side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles are housed patented fastening and joining elements that allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, purchasable separately.
PWD301543 L= 600mm for linear diffuser 30 mm SLOT white color
Brand Tecnosystemi S.p.A.

PWD301544

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L600mm SLOT 30mm BLACK

L [mm]	600
A [mm]	30
A1 [mm]	110
COUPLING Ø150	1

Specification items

SPECIFICATION
Recessed linear aluminum diffuser with damper, insulated plenum, and side deflectors.
Recessed linear aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Plenum in galvanized sheet metal lined with closed-cell polyethylene and equipped with additional provisions with pre-punched knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and can be installed on the relevant side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of the adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301544 L= 600mm for linear diffuser 30 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301551

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L800mm SLOT 20mm WHITE

L [mm]	800
A [mm]	20
A1 [mm]	100
COUPLING Ø150	2

Specification items

SPECIFICATION
Linear concealed aluminum diffuser with damper, insulated plenum, and side deflectors.
Linear concealed aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Plenum in galvanized sheet metal coated with closed-cell polyethylene and equipped with additional provisions with pre-punched knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
Inlet collars are included in the package and can be installed on the relevant side according to requirements.
Manually adjustable sliding calibration damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301551 L= 800mm for linear diffuser 20 mm SLOT white color
Brand Tecnosystemi S.p.A.

PWD301552

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L800mm SLOT 20mm BLACK

L [mm]	800
A [mm]	20
A1 [mm]	100
COUPLING Ø150	2

Specification items

SPECIFICATION
Aluminum concealed linear diffuser with damper, insulated plenum, and side deflectors.
Aluminum concealed linear diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum coated with closed-cell polyethylene and equipped with additional provisions with pre-scored knock-outs to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
Inlet collars are included in the package and can be installed on the relevant side as needed.
Manually adjustable sliding balancing damper.
Inside the profiles are housed patented fastening and joining elements that allow the anchoring of the adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301552 L= 800mm for linear diffuser 20 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301559

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L800mm SLOT 30mm WHITE

L [mm]	800
A [mm]	30
A1 [mm]	110
COUPLING Ø150	2

Specification items

SPECIFICATION
Concealed aluminum linear diffuser with damper, insulated plenum, and side deflectors.
Concealed aluminum linear diffuser for supply air and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum lined with closed-cell polyethylene and equipped with additional provisions with knock-out pre-cuts to be broken out as needed, both for supplementary ducting and VMC ducts Ø 75/90.
Inlet collars are included in the package and can be installed on the relevant side as required.
Manually adjustable sliding balancing damper.
Patented fastening and joining elements are housed within the profiles, allowing for the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301559 L= 800mm for linear diffuser 30 mm slot white
Brand Tecnosystemi S.p.A.

PWD301560

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L800mm SLOT 30mm BLACK

L [mm]	800
A [mm]	30
A1 [mm]	110
COUPLING Ø150	2

Specification items

SPECIFICATION

* Recessed aluminum linear diffuser with damper, insulated plenum, and side deflectors.
* Recessed aluminum linear diffuser for supply and insulated plenum.
* Available with 20 or 30 mm slot in white or black.
* Galvanized sheet metal plenum lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be broken out as needed, for both supplementary ducting and VMC Ø 75/90 ducts.
* Inlet collars are included in the package and can be installed on the required side as needed.
* Manually adjustable sliding balancing damper.
* Patented fastening and joining elements are housed within the profiles, allowing for the anchoring of adjustable PVC deflectors.
* Double opposed deflector with adjustable airfoil profile.
* Continuity kit, available separately.
* PWD301560 L= 800mm for linear diffuser 30 mm SLOT black color
* Brand Tecnosystemi S.p.A.

PWD301567

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1000mm SLOT 20mm WHITE

L [mm]	1000
A [mm]	20
A1 [mm]	100
COUPLING Ø150	2

Specification items

SPECIFICATION
Linear concealed aluminum diffuser with damper, insulated plenum, and side deflectors.
Linear concealed aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black color.
Plenum in galvanized sheet metal lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and can be installed on the relevant side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, purchasable separately.
PWD301567 L= 1000mm for linear diffuser 20 mm SLOT white color
Brand Tecnosystemi S.p.A.

PWD301568

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1000mm SLOT 20mm BLACK

L [mm]	1000
A [mm]	20
A1 [mm]	100
COUPLING Ø150	2

Specification items

SPECIFICATION
Recessed linear aluminum diffuser with damper, insulated plenum, and side deflectors.
Recessed linear aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black color.
Plenum in galvanized sheet metal lined with closed-cell polyethylene and equipped with additional provisions with pre-punched knock-outs to be broken out as needed, both for supplementary ducting and VMC ducts Ø 75/90.
The inlet collars are included in the package and can be installed on the desired side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable winged profile.
Continuity kit, available separately.
PWD301568 L= 1000mm for linear diffuser 20 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301575

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1000mm SLOT 30mm WHITE

L [mm]	1000
A [mm]	30
A1 [mm]	110
COUPLING Ø150	2

Specification items

SPECIFICATION
Recessed aluminum linear diffuser with damper, insulated plenum, and side deflectors.
Recessed aluminum linear diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be broken out as needed, both for supplementary ducting and VMC ducts Ø 75/90.
The inlet collars are included in the package and can be installed on the required side as needed.
Manually adjustable sliding calibration damper.
Patented fastening and joining elements are housed inside the profiles, allowing the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301575 L= 1000mm for linear diffuser 30 mm SLOT white color
Brand Tecnosystemi S.p.A.

PWD301576

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1000mm SLOT 30mm BLACK

L [mm]	1000
A [mm]	30
A1 [mm]	110
COUPLING Ø150	2

Specification items

SPECIFICATIONS
Concealed aluminum linear diffuser with damper, insulated plenum, and side deflectors.
Concealed aluminum linear diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum coated with closed-cell polyethylene and equipped with additional provisions with knock-out pre-cuts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and can be installed on the relevant side as needed.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of the adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301576 L= 1000mm for linear diffuser 30 mm SLOT black
Brand Tecnosystemi S.p.A.

PWD301583

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1200mm SLOT 20mm WHITE

L [mm]	1500
A [mm]	20
A1 [mm]	100
COUPLING Ø150	3

Specification items

SPECIFICATION
Aluminum concealed linear diffuser with damper, insulated plenum, and side deflectors.
Aluminum concealed linear diffuser for supply air and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum coated with closed-cell polyethylene and equipped with additional provisions with pre-punched knockouts to be broken out as needed, both for supplementary ducting and VMC ducts Ø 75/90.
Inlet collars are included in the package and can be installed on the relevant side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles are housed patented fastening and joining elements that allow the anchoring of the adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301583 L= 1500mm for linear diffuser 20 mm SLOT white
Brand Tecnosystemi S.p.A.

PWD301584

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1200mm SLOT 20mm BLACK

L [mm]	1500
A [mm]	20
A1 [mm]	100
COUPLING Ø150	3

Specification items

SPECIFICATION
Recessed linear aluminum diffuser with damper, insulated plenum and side deflectors.
Recessed linear aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet plenum lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knock-outs to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and are installable on the required side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of the adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, purchasable separately.
PWD301584 L= 1500mm for linear diffuser 20 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301591

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1200mm SLOT 30mm WHITE

L [mm]	1500
A [mm]	30
A1 [mm]	110
COUPLING Ø150	3

Specification items

SPECIFICATIONS
Recessed linear aluminum diffuser with damper, insulated plenum, and side deflectors.
Recessed linear aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum coated with closed-cell polyethylene and equipped with additional provisions with knock-out pre-cuts to be broken out as needed, both for supplementary ducting and VMC ducts Ø 75/90.
Inlet collars are included in the package and can be installed on the desired side as needed.
Manually adjustable sliding balancing damper.
Inside the profiles are housed patented fastening and joining elements that allow the anchoring of the adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301591 L= 1500mm for linear diffuser 30 mm SLOT white
Brand Tecnosystemi S.p.A.

PWD301592

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L1200mm SLOT 30mm BLACK

L [mm]	1500
A [mm]	30
A1 [mm]	110
COUPLING Ø150	3

Specification items

SPECIFICATION
Concealed linear aluminum diffuser with damper, insulated plenum, and side deflectors.
Concealed linear aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black color.
Plenum in galvanized sheet metal coated with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be broken out as needed, both for supplementary ducting and VMC ducts Ø 75/90.
The inlet collars are included in the package and can be installed on the required side according to needs.
Manually adjustable sliding calibration damper.
Patented fastening and joining elements are housed inside the profiles, allowing the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, purchasable separately.
PWD301592 L= 1500mm for linear diffuser 30 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301599

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L2000mm SLOT 20mm WHITE

L [mm]	2000
A [mm]	20
A1 [mm]	100
COUPLING Ø150	4

Specification items

SPECIFICATION
Concealed aluminum linear slot diffuser with damper, insulated plenum, and side deflectors.
Concealed aluminum linear slot diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet plenum lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be removed as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
Inlet collars are included in the package and can be installed on the relevant side as needed.
Manually adjustable sliding balancing damper.
Patented fixing and joining elements are housed inside the profiles, allowing the anchoring of adjustable PVC deflectors.
Opposing double deflector with adjustable winged profile.
Continuity kit, available separately.
PWD301599 L= 2000mm for linear diffuser 20 mm SLOT white
Brand: Tecnosystemi S.p.A.

PWD301600

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L2000mm SLOT 20mm BLACK

L [mm]	2000
A [mm]	20
A1 [mm]	100
COUPLING Ø150	4

Specification items

SPECIFICATION
Linear recessed aluminum diffuser with damper, insulated plenum, and side deflectors.
Linear recessed aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Plenum in galvanized sheet metal lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
The inlet collars are included in the package and can be installed on the desired side according to requirements.
Manually adjustable sliding calibration damper.
Patented fastening and joining elements are housed inside the profiles, allowing the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301600 L= 2000mm for linear diffuser 20 mm SLOT black color
Brand Tecnosystemi S.p.A.

PWD301607

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L2000mm SLOT 30mm WHITE

L [mm]	2000
A [mm]	30
A1 [mm]	110
COUPLING Ø150	4

Specification items

SPECIFICATION
Linear concealed aluminum diffuser with damper, insulated plenum, and side deflectors.
Linear concealed aluminum diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum lined with closed-cell polyethylene and equipped with additional provisions with pre-cut knockouts to be broken out as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
Inlet collars are included in the package and can be installed on the relevant side according to requirements.
Manually adjustable sliding balancing damper.
Inside the profiles are housed patented fastening and joining elements that allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301607 L= 2000mm for linear diffuser 30 mm SLOT white color
Brand Tecnosystemi S.p.A.

PWD301608

LINEAR RETRACTING DIFFUSER IN ALUMINIUM WITH DAMPER, INSULATED PLENUM AND SIDE DEFLECTORS L2000mm SLOT 30mm BLACK

L [mm]	2000
A [mm]	30
A1 [mm]	110
COUPLING Ø150	4

Specification items

SPECIFICATION
Concealed aluminum linear diffuser with damper, insulated plenum, and side deflectors.
Concealed aluminum linear diffuser for supply and insulated plenum.
Available with 20 or 30 mm slot in white or black.
Galvanized sheet metal plenum lined with closed-cell polyethylene and equipped with additional provisions with pre-punched knockouts to be removed as needed, both for supplementary ducting and VMC Ø 75/90 ducts.
Inlet collars are included in the package and can be installed on the relevant side as required.
Manually adjustable sliding balancing damper.
Inside the profiles, patented fastening and joining elements are housed, which allow the anchoring of adjustable PVC deflectors.
Double opposed deflector with adjustable airfoil profile.
Continuity kit, available separately.
PWD301608 L= 2000mm for linear diffuser 30 mm SLOT black color
Brand Tecnosystemi S.p.A.
