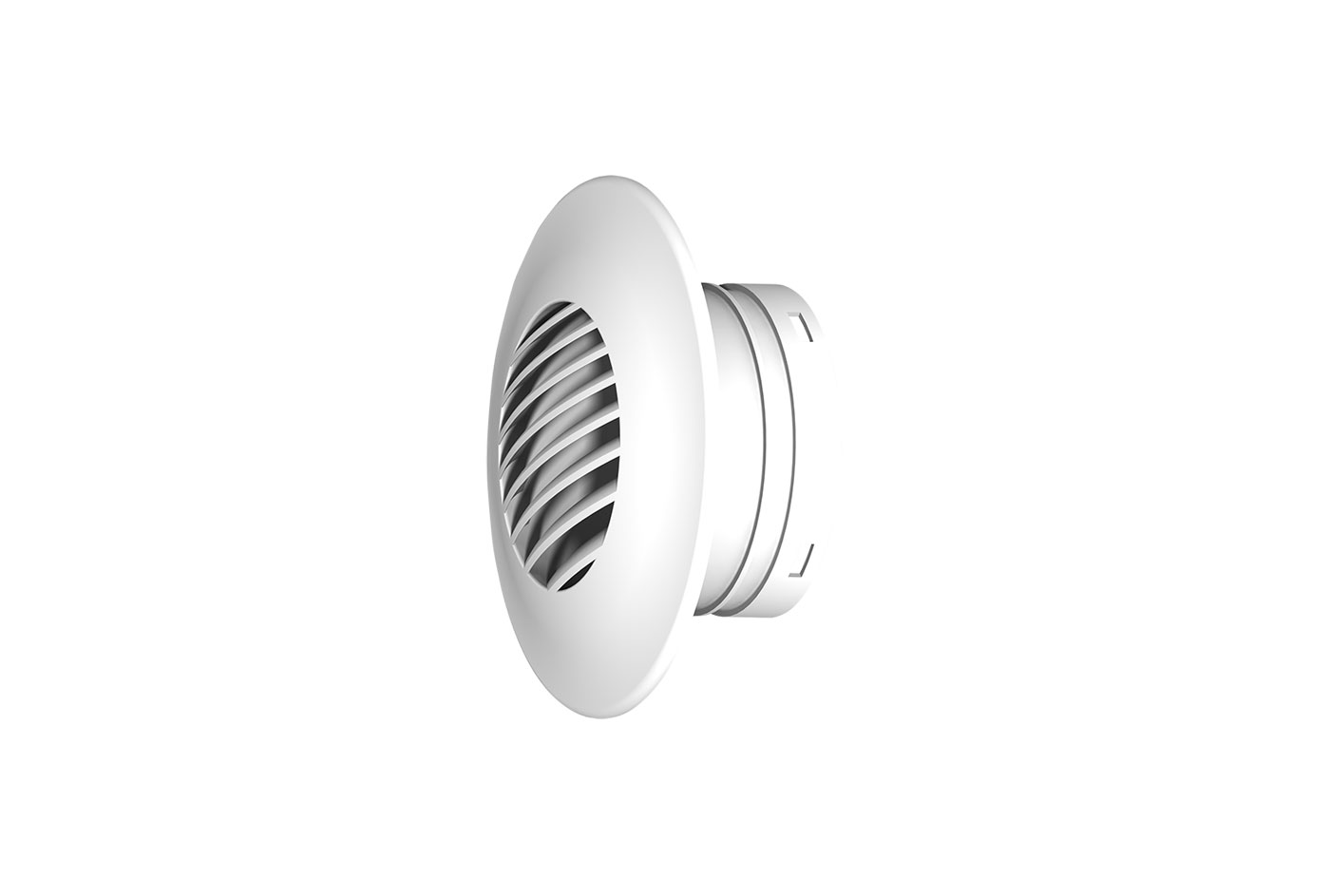

LUCINA Intake grille

Apply.co
Air treatment - MVHR

Air intake grille for MVHR.
The grille is made in polypropylene PP colour white RAL 9016.
360° swivel blades

TECHNICAL SPECIFICATIONS:

• Made in polypropylene
• External dimensions Ø185 mm
• Inlet size Ø115 mm
• Neck depth 60 mm
• Max intake capacity 50 m³/h
• 360° adjustable slats
• Reaction to fire class according to EN13501-1: F
• Operating temperature -25/+80°C

Models
