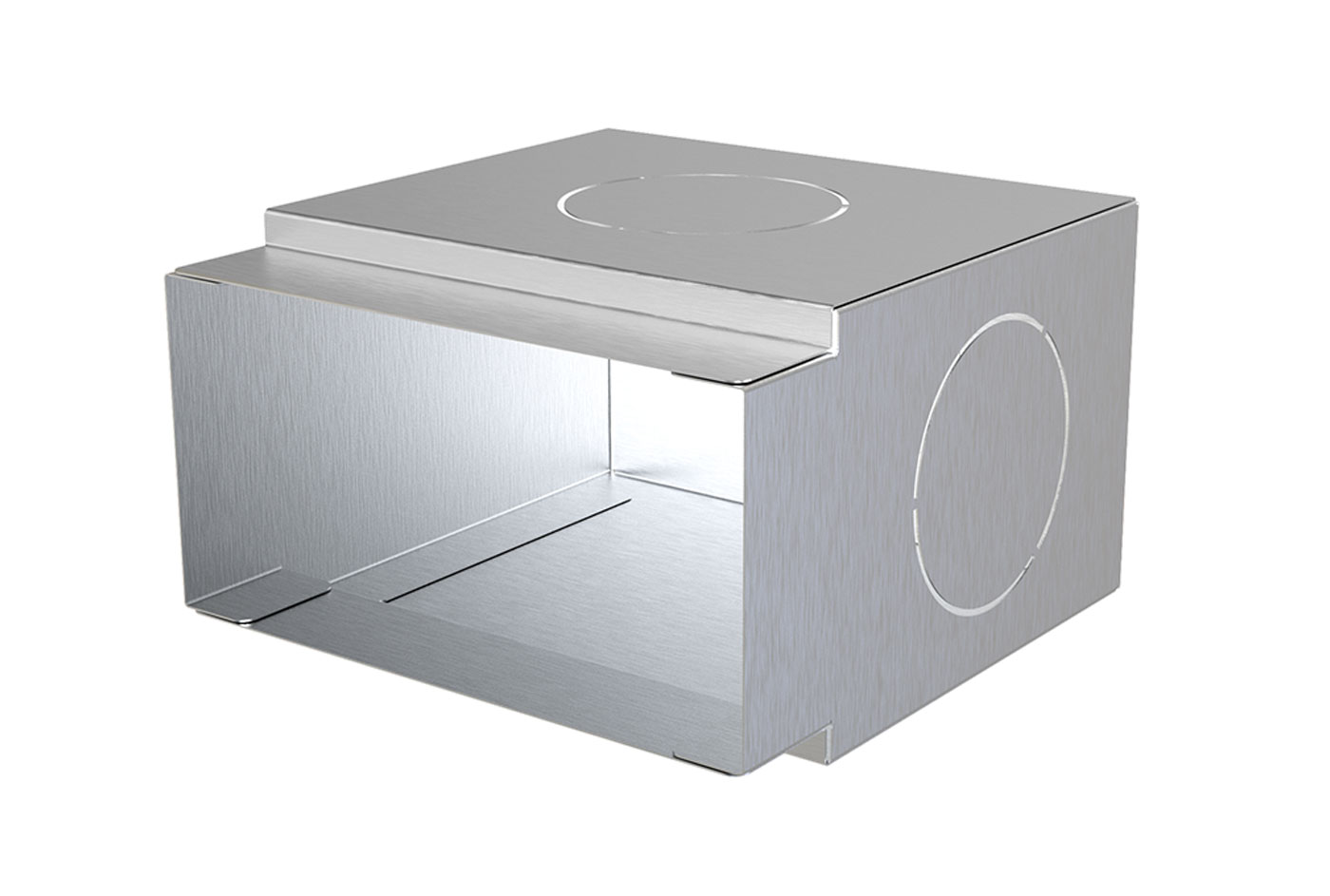

Immagine IMG_ACD600085.jpg
View documentation

Metal sheet plenum for Athena and Iris grilles plasterboard installation

  • Apply.co
  • Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of anodised aluminium
• Air delivery and intake
• Grille with concealed frame and pull-out central zone
• Installation on frame support by means of screws
• G2 Filter
• Plenum for wall installation in plasterboard in electro-galvanised metal sheet prepared for Ø75 and Ø92 collars (separate)

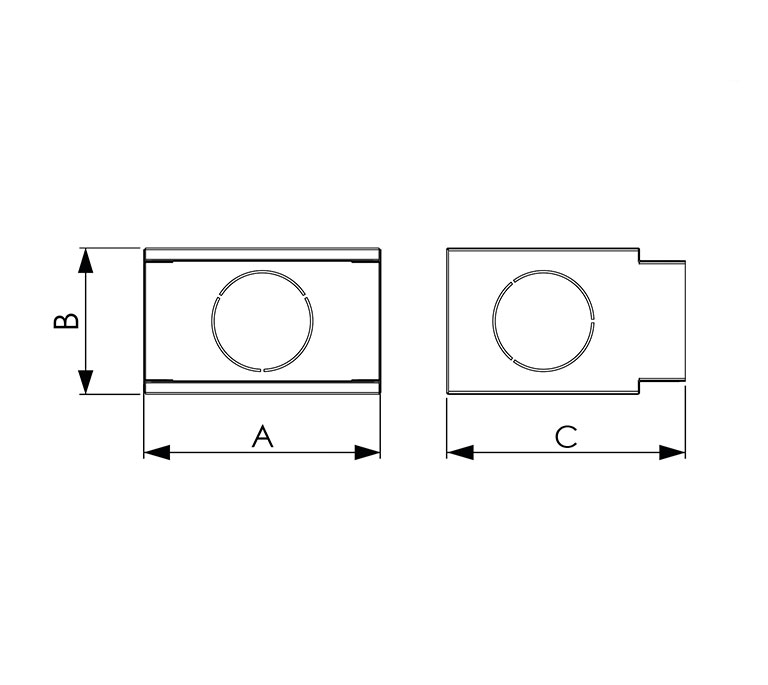

Models

Available Models (2)

ACD600085

PLÉNUM FOR ATHENA AND IRIS GRILLES PLASTERBOARD INSTALLATION 200x100

A [mm] 210
B [mm] 130
C [mm] 210

ACD600086

PLÉNUM FOR ATHENA AND IRIS GRILLES PLASTERBOARD INSTALLATION 300x100

A [mm] 310
B [mm] 130
C [mm] 210

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
