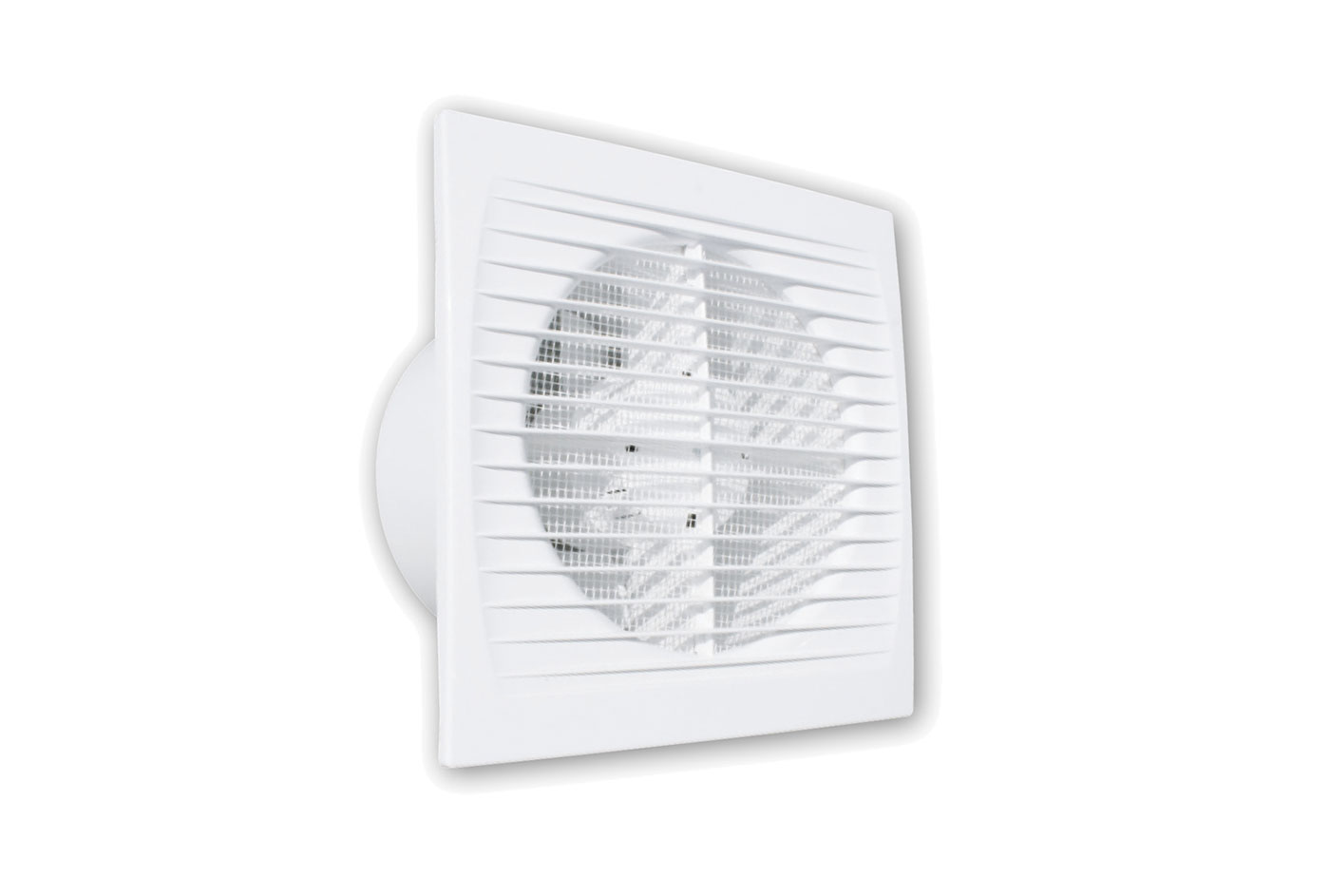

Immagine IMG_11104000.jpg

View documentation

OPEN Electric extractor

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Ideal for ventilation of small- to medium-sized rooms
• Ultra-thin front panel
• Made of UV-resistant ABS
• 7-blade fan
• Easy fastening with flat-head screws
• OPEN version that can be operated via a switch
• OPEN T version with adjustable timer option from 2 to 30 minutes
• OPEN TH version with adjustable timer option from 2 to 30 minutes and adjustable humidity sensor in the range of 60 to 90%
• Equipped with anti-insect mesh

Models

Available Models (9)

11104000

"OPEN" ELECTRIC EXTRACTOR, Ø100

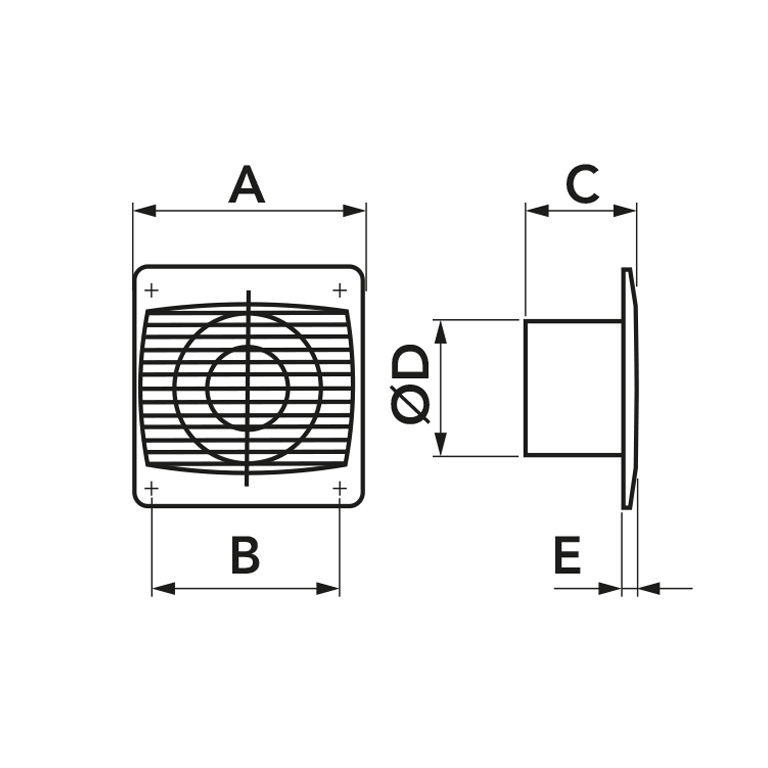

MODEL	OPEN Ø 100
A [mm]	150
B [mm]	120
C [mm]	108
Ø D [mm]	100
E [mm]	12

11104001

"OPEN" ELECTRIC EXTRACTOR, Ø125

MODEL	OPEN Ø 125
A [mm]	176
B [mm]	140
C [mm]	114
Ø D [mm]	125
E [mm]	13

11104002

"OPEN" ELECTRIC EXTRACTOR, Ø150

MODEL	OPEN Ø 150
A [mm]	205
B [mm]	165
C [mm]	132
Ø D [mm]	150
E [mm]	14

11104004

"OPEN T" ELECTRIC EXTRACTOR, Ø100

MODEL	OPEN T Ø 100
A [mm]	150
B [mm]	120
C [mm]	108
Ø D [mm]	100
E [mm]	12

11104005

"OPEN T" ELECTRIC EXTRACTOR, Ø125

MODEL	OPEN T Ø 125
A [mm]	176
B [mm]	140
C [mm]	114
Ø D [mm]	125
E [mm]	13

11104006

"OPEN T" ELECTRIC EXTRACTOR, Ø150

MODEL	OPEN T Ø 150
A [mm]	205
B [mm]	165
C [mm]	132
Ø D [mm]	150
E [mm]	14

11104008

"OPEN TH" ELECTRIC EXTRACTOR, Ø100

MODEL	OPEN TH Ø 100
A [mm]	150
B [mm]	120
C [mm]	108
Ø D [mm]	100
E [mm]	12

11104009

"OPEN TH" ELECTRIC EXTRACTOR, Ø125

MODEL	OPEN TH Ø 125
A [mm]	176
B [mm]	140
C [mm]	114
Ø D [mm]	125
E [mm]	13

11104010

"OPEN TH" ELECTRIC EXTRACTOR, Ø150

MODEL	OPEN TH Ø 150
A [mm]	205
B [mm]	165
C [mm]	132
Ø D [mm]	150
E [mm]	14
