OPTIMA TP FULL COVER Duct with protective film

Smart Clima
Air conditioning
Heat pumps

The series of OPTIMA FULL COVER ducts is designed with the aim of optimising the internal spaces to facilitate and speed up the installation of the refrigeration lines, the electrical cable and the condensate drain with the possibility of inserting the mini pump Easy Flow 7 – 11 – 15 – 20 lt inside the duct (only with the series TB 75 – T 75).

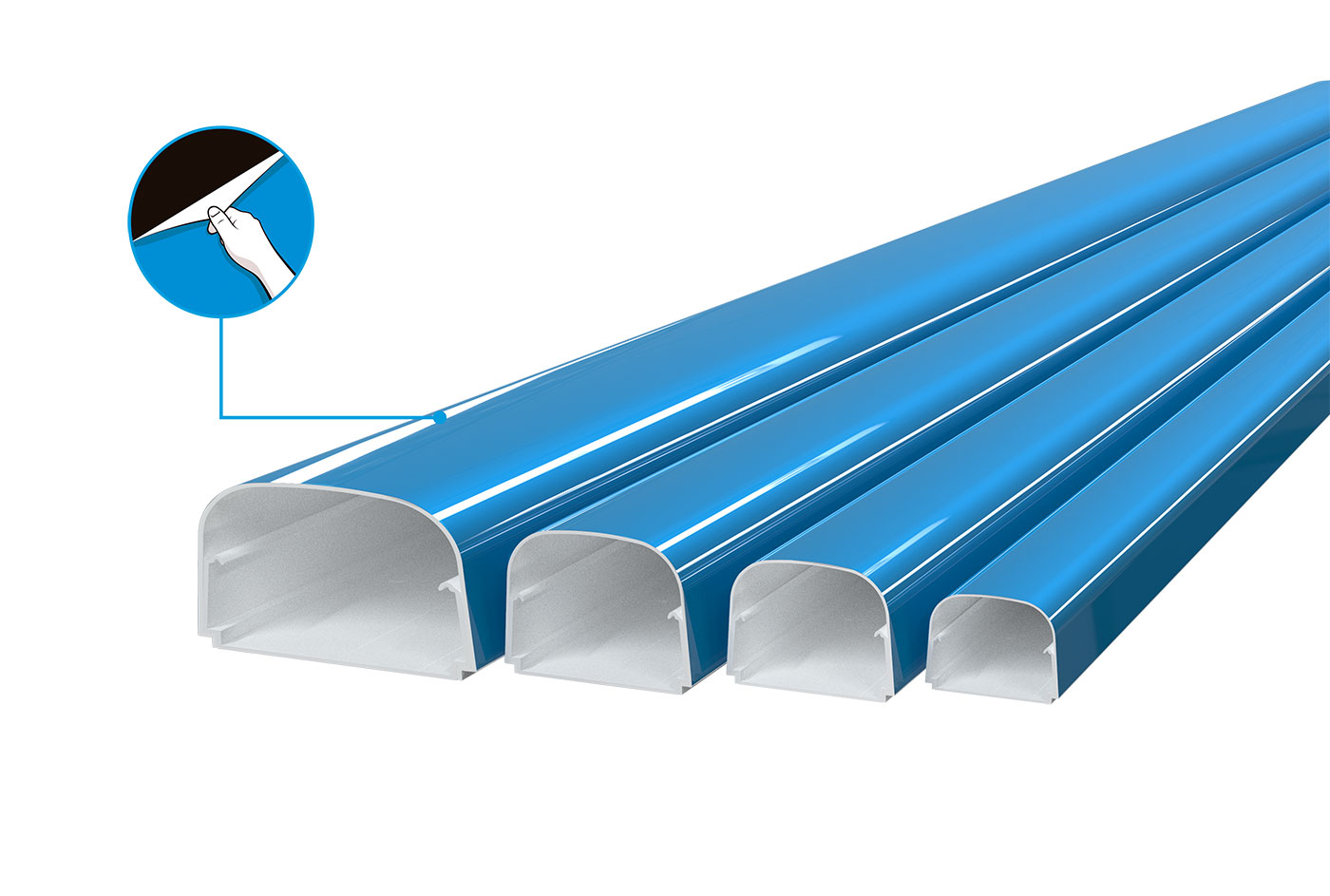

On the lid, fully enveloping and with a flush wall closure, a practical protective film is applied, to be removed once the work is completed.
The removable film protects the duct during the laying phase and once the operation is completed, it will be removed, guaranteeing the cleanliness of the duct itself.

Certifications

TECHNICAL SPECIFICATIONS:

• Rigid shockproof PVC, anti-UVA, white
• Sharp-edged bottom
• Pre-punched slots for wall mounting
• Prepared for insertion of the mini pumps Easy Flow, Easy One, Aqua Split (only model TP 75-OPT-FC)
• Wall-mounted flush closure
• Rounded cover
• Cover with transparent blue protective film in low density polyethylene
• Bar length 2 m
• Paintable with light-colored paints
• Operating temperature -20°C / +60°C

Models
