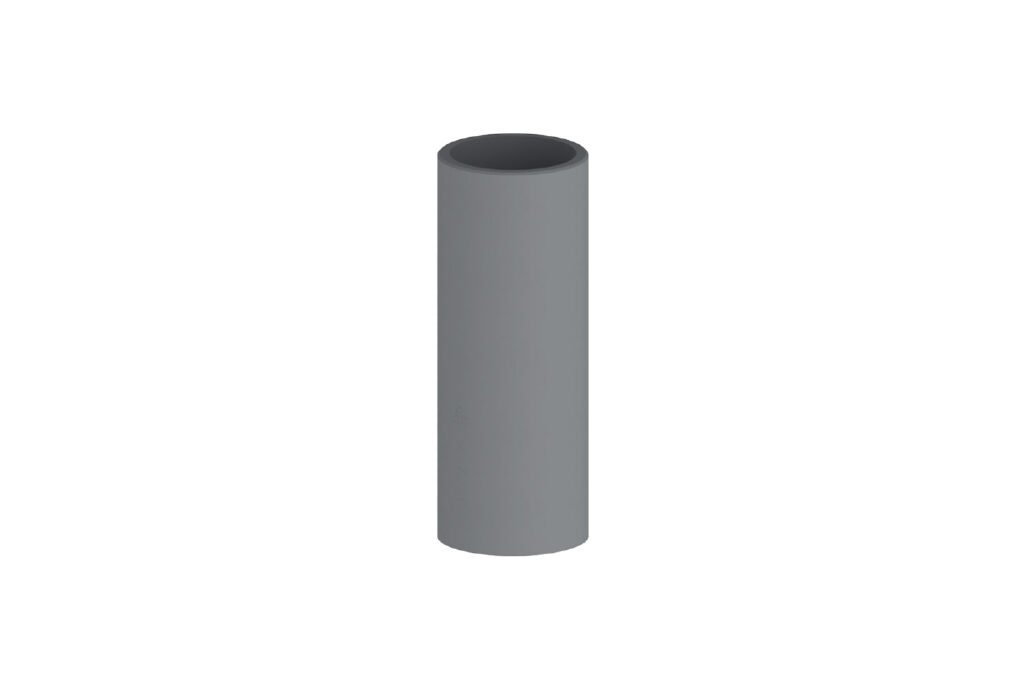

Pipe in EPS for MVHR Ø125 and Ø160 L 1000 mm

Apply.co
Air treatment - MVHR

TECHNICAL SPECIFICATIONS MOD. Ø 125

• Grey colour EPS insulated pipe
• Wall thickness: 15.5mm
• Weight: 0,41 kg
• Dimensions: 156 x 156 x 1002 mm
• internal Ø: 125 mm
• Temperature range -25 / +80 (C°)
• Maximum air flow: 275 m³/h
• Thermal resistance: 0.032 m²K/W

TECHNICAL SPECIFICATIONS MOD. Ø 160

• Grey colour EPS insulated pipe
• Wall thickness: 15.5mm
• Weight: 0,45 kg
• Dimensions: 191 x 191 x 1002 mm
• internal Ø: 160 mm
• Temperature range -25 / +80 (C°)
• Maximum air flow: 425 m³/h
• Thermal resistance: 0.032 m²K/W
