PROAIR PACK CAB SILVER 3 With "Eolo" / "Eolo Mini" plenum

Galaxy
Temperature regulation and control systems

The pre-assembled systems PROAIR PACK CAB EOLO and PROAIR CAB EOLO MINI are designed to facilitate and speed up the installation of a ducted system. It will be sufficient to indicate, when ordering.
Simply indicate, when ordering, the model of the plenum or alternatively communicate the size of the plenum and specify the code of the chosen PROAIR PACK system.
The system is supplied complete with “Polaris” control unit, chronothermostats and mechanical pass kit to be installed on the plenum (complete with fixing ring and counterweight).
The plenums have a double connection on the entire range: Eolo ø 150/200mm, Eolo Mini ø 125/150mm.
In order to ensure ease and speed of installation, the systems are assembled, configured and tested 100% by qualified personnel
Attention! Check with the manufacturer of the indoor ducted unit whether or not it is necessary to use an appropriate interface for the control of the same (mandatory if the communication protocol is not used).
Wired programmable chrono-thermostats included in the Pack:
• 3 “Stealth 3X” timed thermostats white

Caratteristiche tecniche

The PROAIR PACK CAB SILVER 3 system consists of:

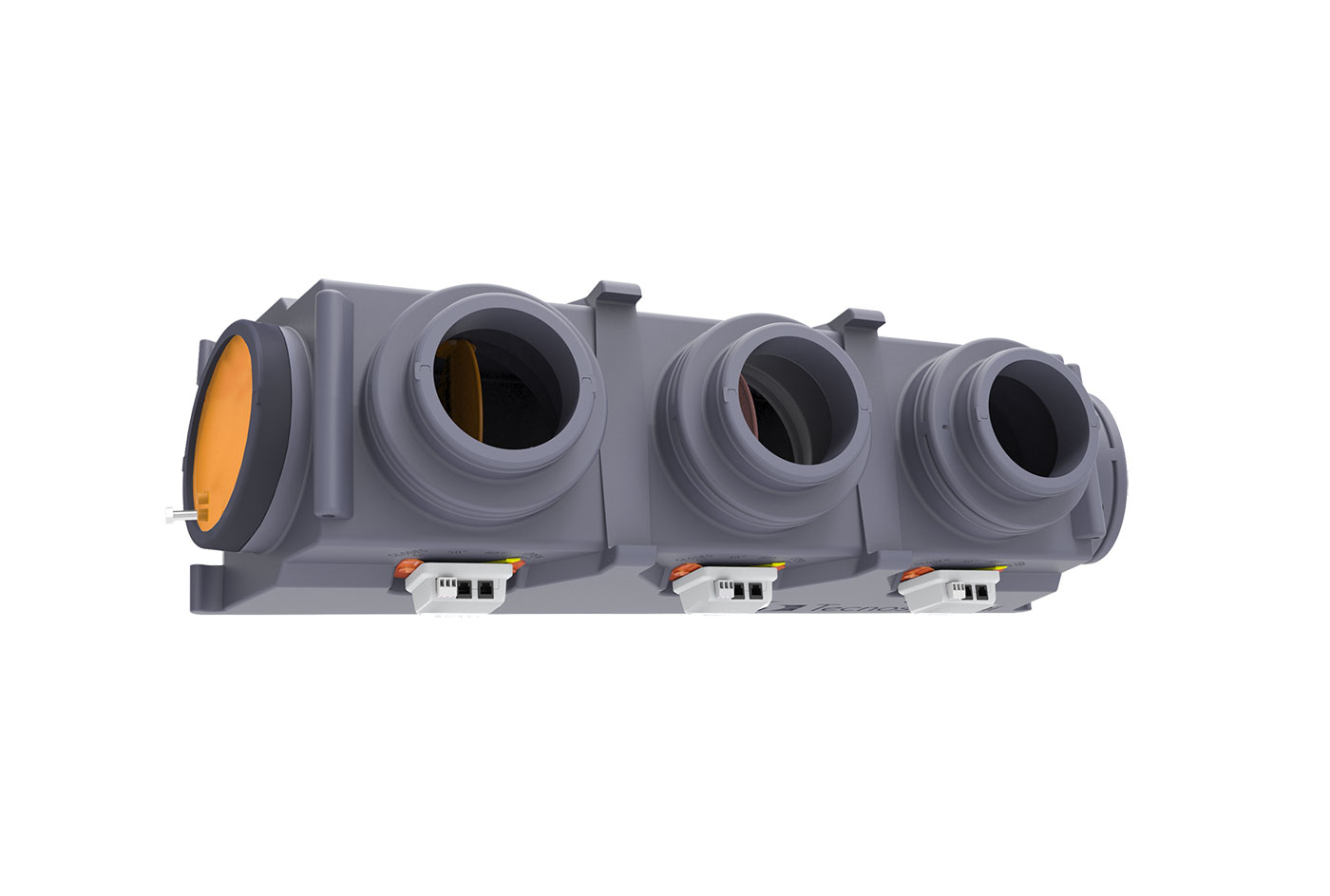

• 1 sintered polystyrene delivery plenum for ducted units (specify plenum code when ordering)
• N has 1 “Polaris” control unit with preloaded protocols, app, Alexa and Google Home
• 3 motorised dampers pre-wired to system
• 3 “Stealth 3X” backlit timed thermostats (white built-in wired)
• 1 mechanical bypass kit to be fastened to plenum (includes fastening ring nut and counterweight)
• 1 50 m cable reel, 4-wire for timed thermostat connection
Customisable on request

Models
