PROAIR PACK RF AMBRA 4 With "Eolo" / "Eolo Mini" plenum

Galaxy
Temperature regulation and control systems

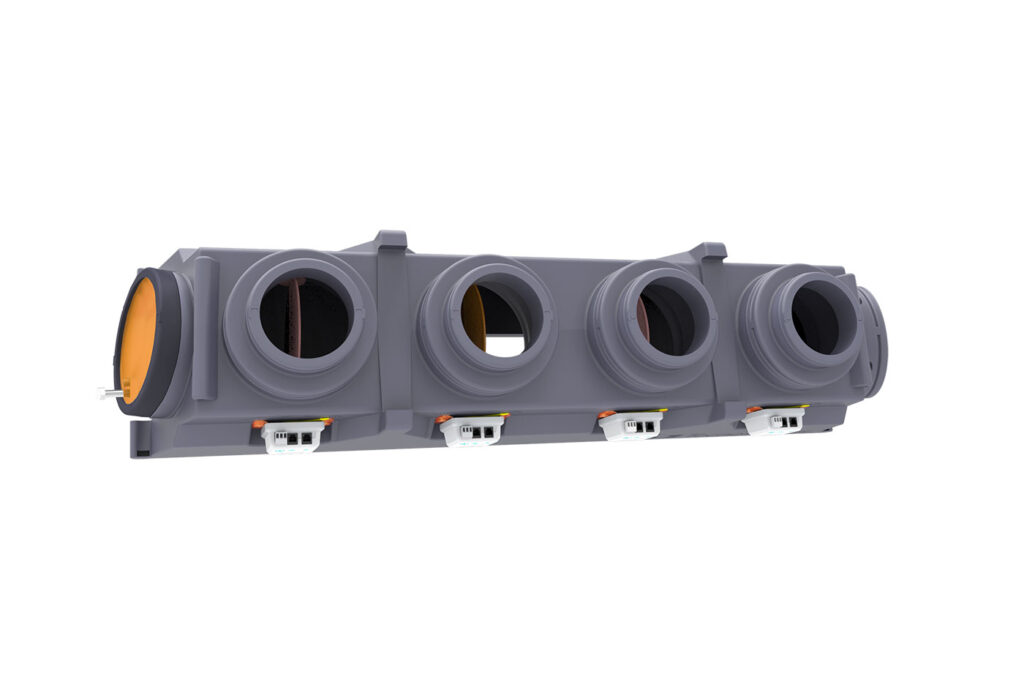

The pre-assembled systems PROAIR PACK RF-EOLO and PROAIR RF-EOLO MINI are designed to facilitate and speed up the installation of a ducted system.
Simply indicate, when ordering, the model of the plenum.
The system is supplied complete with “Polaris” control unit, chronothermostats and mechanical pass kit to be installed on the plenum (complete with fixing ring and counterweight).
The plenums have a double connection on the entire range: Eolo Mini ø 125/150 mm and Eolo ø 150/200 mm.
In order to ensure ease and speed of installation, the systems are assembled, configured and tested 100% by qualified personnel.
Attention! Check with the manufacturer of the indoor ducted unit whether or not it is necessary to use an appropriate interface for the control of the same (mandatory if the communication protocol is not used). There must always be an inspection hatch to access the control unit and the dampers.

Caratteristiche tecniche

The PROAIR PACK RF AMBRA 4 system consists of:
• 1 sintered polystyrene delivery plenum for ducted units (specify plenum code when ordering)
• N has 1 “Polaris” control unit with preloaded protocols, app, Alexa and Google Home
• 4 motorised dampers pre-wired to system
• 4 DISCOVERY 3X chronothermostats (white, wall-mounted with batteries), MINI DISCOVERY 3X or MINI LED ASTRA chronothermostats
• 1 mechanical bypass kit to be fastened to plenum (includes fastening ring nut and counterweight)
Customisable on request

Models

Available Models (8)

GAD400365

PROAIR PACK RF AMBRA 4 - WITH PLENUM EOLO MINI IN POLYSTYRENE - WITH 4 CHRONOTERMOSTATS DISCOVERY 3X BACKLIT - WITH CONTROL UNIT POLARIS 5X - Ø125/150 mm

GAD400366

PROAIR PACK RF AMBRA 4 - WITH PLENUM EOLO IN POLYSTYRENE - WITH 4 CHRONOTERMOSTATS DISCOVERY 3X BACKLIT - WITH CONTROL UNIT POLARIS 5X - Ø150/200 mm

GAD400367

PLÉNUM EOLO MINI IN POLYSTYRENE - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 CHRONOTERMOSTATS MINI DISCOVERY 3X - WITH CONTROL UNIT POLARIS 5X - Ø125/150 mm

GAD400368

PLÉNUM EOLO IN POLYSTYRENE - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 CHRONOTERMOSTATS MINI DISCOVERY 3X - WITH CONTROL UNIT POLARIS 5X - Ø150/200 mm

GAD400507

PROAIR PACK RF AMBRA 4 - PLENUM IN POLYSTYRENE EOLO MINI - 4 THERMOSTATS MINI LED - WITHTROL UNIT POLARIS 5X - 125/150 mm

GAD400508

PROAIR PACK RF AMBRA 4 - PLENUM IN POLYSTYRENE EOLO - 4 THERMOSTATS MINI LED - WITHTROL UNIT POLARIS 5X - 150/200 mm

GAD400412

PROAIR PACK RF AMBRA 4 - WITH PLENUM EOLO MINI IN POLYSTYRENE - WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 PROBES AMBIENTE LEM 3X RF - WITH CONTROL UNIT POLARIS 5X - Ø125/150 mm

GAD400413

PROAIR PACK RF AMBRA 4 - WITH PLENUM EOLO IN POLYSTYRENE WITH 1 CHRONOTERMOSTAT DISCOVERY 3X BACKLIT + 3 PROBES AMBIENTE LEM 3X RF - WITH CONTROL UNIT POLARIS 5X - Ø150/200 mm
