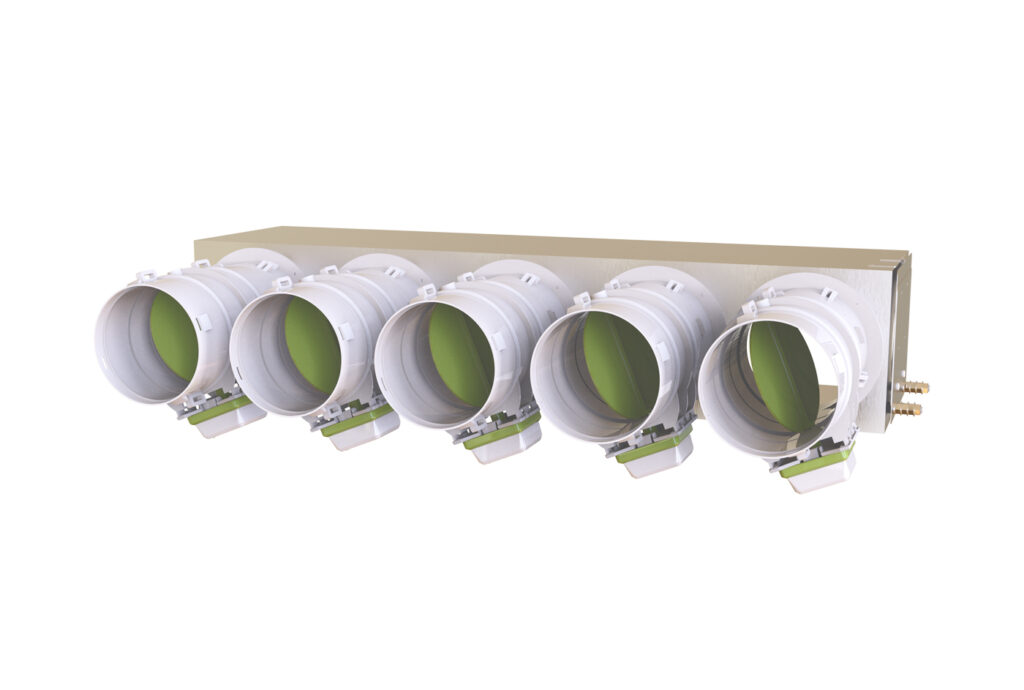

PROAIR PACK RF PINK 5L With plenum in insulated metal sheet

Galaxy
Temperature regulation and control systems

The pre-assembled systems PROAIR PACK RF-L are designed to facilitate and speed up the installation of a ducted system.
Simply indicate, when ordering, the model of the plenum or alternatively communicate the size of the plenum and specify the code of the chosen PROAIR PACK system.
The system is supplied complete with Polaris” control unit, chronothermostats and thermostats and a mechanical by-pass kit to be installed on the plenum (complete with fixing ring and counterweight).
The system is supplied complete with programmable thermostats and dampers (Ø 150 or Ø 200) fixed on the insulated plenum.
In order to ensure ease and speed of installation, the PROAIR PACK RF-L system is fully assembled, configured and tested 100% by qualified personnel
Attention! Check with the manufacturer of the indoor ducted unit whether or not it is necessary to use an appropriate interface for the control of the same (mandatory if the communication protocol is not used). There must always be an inspection hatch to access the control unit and the dampers.

Caratteristiche tecniche

Programmable thermostat combination:
• 5 DISCOVERY 3X timed thermostats
• 1 DISCOVERY 3X timed thermostat + 4 MINI DISCOVERY 3X timed thermostats
• 5 MINI LED thermostats
• 1 DISCOVERY 3X timed thermostat + 4 LEM 3X RF room probe

Caratteristiche tecniche

The PROAIR PACK RF PINK 5L system consists of:
• 1 insulated delivery plenum for ducted units (specify plenum code when ordering)
• N has 1 “Polaris” control unit with preloaded protocols, app, Alexa and Google Home
• 5 motorised dampers pre-wired to system
• 5 DISCOVERY 3X chronothermostats (white, wall-mounted with batteries), MINI DISCOVERY 3X or MINI LED ASTRA chronothermostats
• 1 mechanical bypass kit to be fastened to plenum (includes fastening ring nut and counterweight)
Customisable on request
