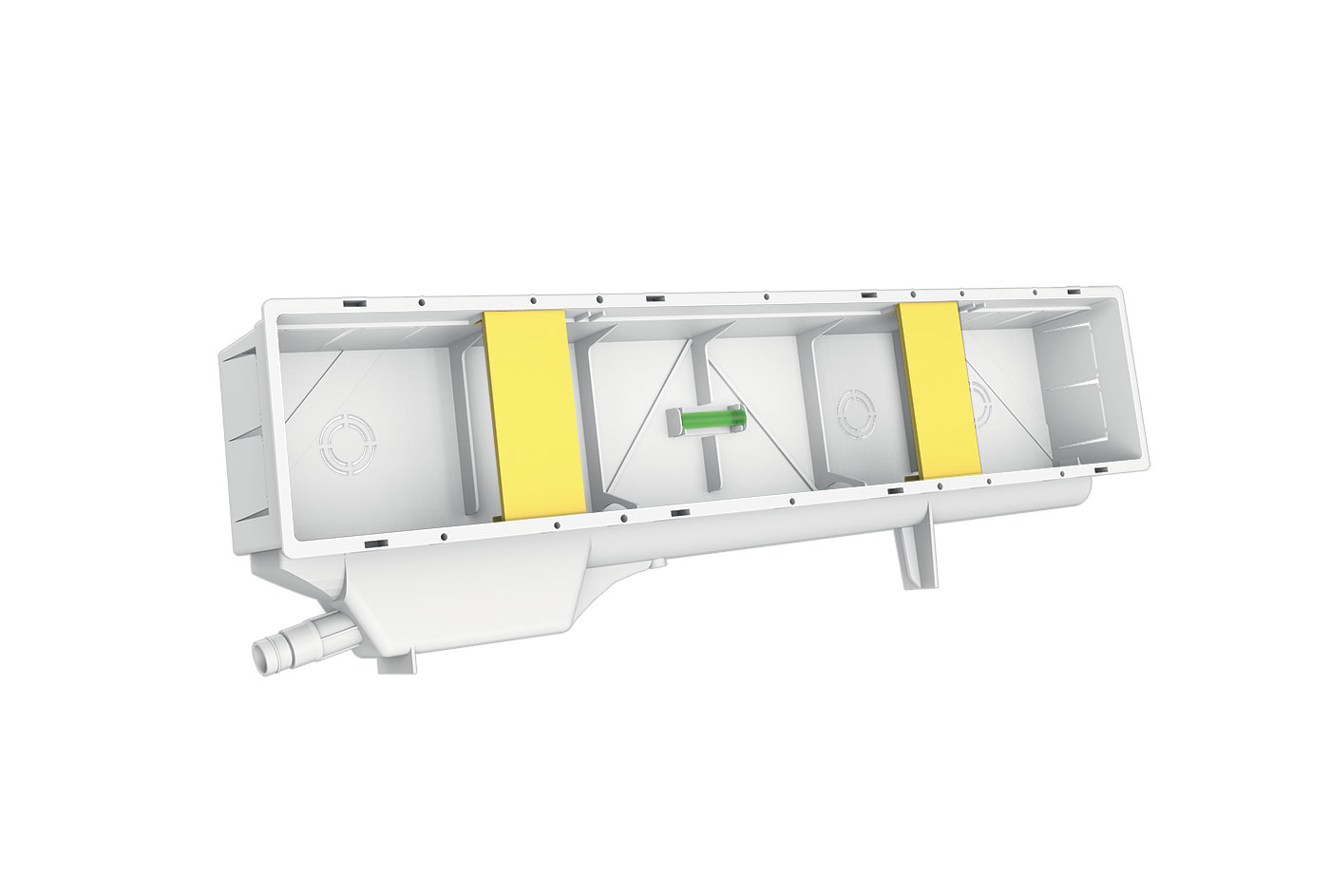

PROFESSIONAL ELITE Built-in installation box with siphon

Smart Clima
Air conditioning

Made of shockproof polystyrene, it is equipped with 4 inlets for refrigeration lines.
It is equipped with two adjustable plates, useful for fixing the split unit template.
The conveyor positioned at the back, is equipped with a grille in addition to its particular funnel shape that prevents water from stagnating, is equipped with an innovative inspectionable siphon, which guarantees protection from the reflux of bad smells.
To facilitate the installation, the preparation is provided with support feet and with a built-in levelling device.

TECHNICAL SPECIFICATIONS:

• Made of impact-resistant polystyrene
• Right/left reversible tilted rear conveyor with multiple side coupling Ø 16 – Ø 20
• Protective grille preventing the passage of mortar, debris, or paint residues
• Adjustable template fastening plates
• Includes spirit level
• Height-adjustable support feet
• Built-in siphon with airtight cover, ensures protection against the backflow of bad odors
• Anti-condensation cavity
• Anti-plaster cardboard
• Interlocking cover or with screws

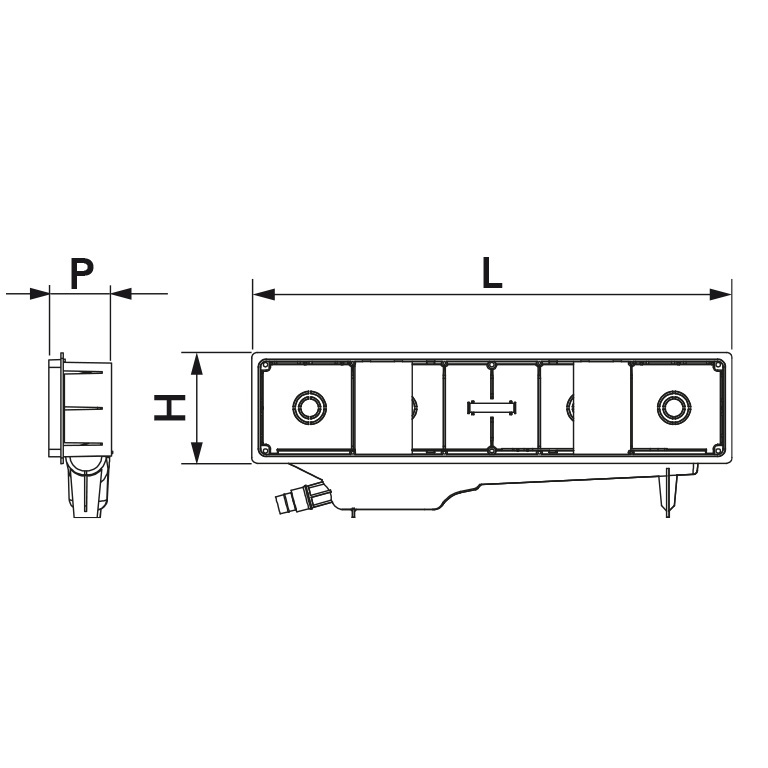

Models
