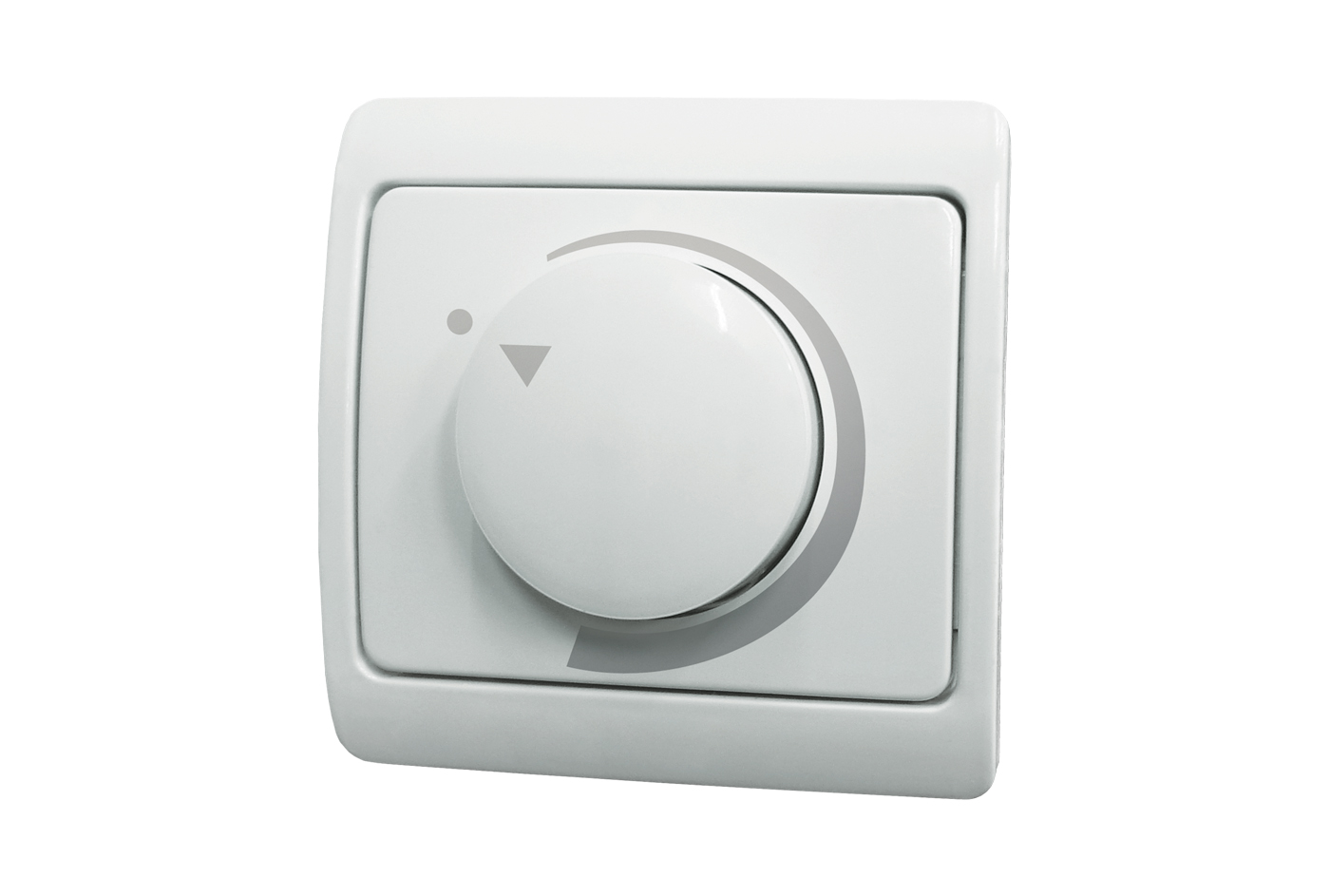

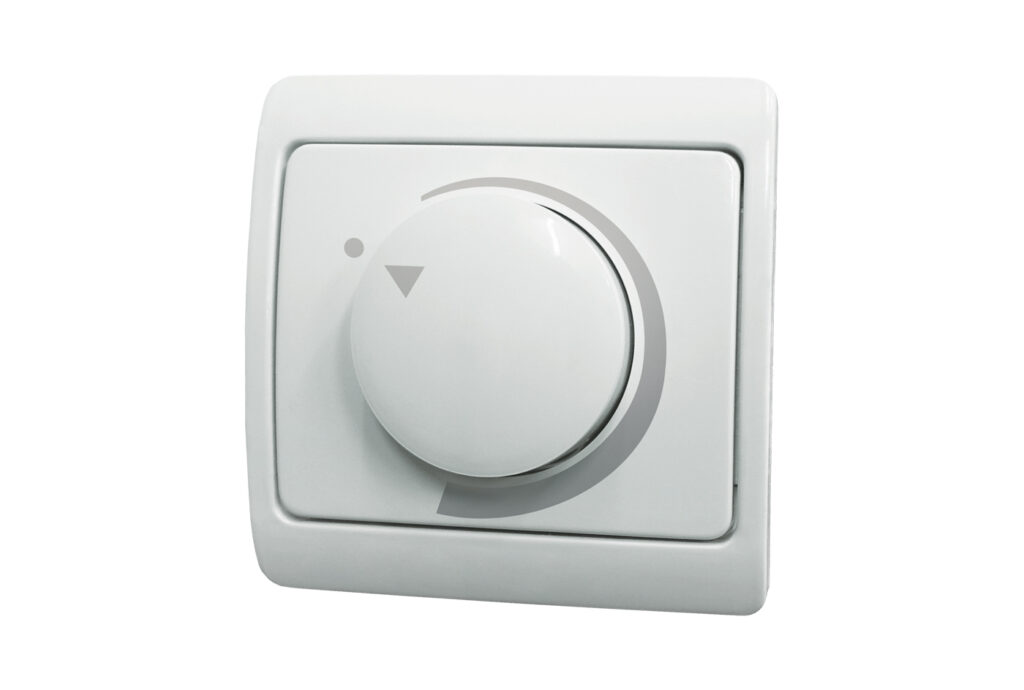

Regulator for in-line fan for circular duct

Apply.co
Air treatment - MVHR

It is used to adjust the rotation speed of the fan in line for the circular duct.
In addition to adjusting the speed from the minimum to the maximum fan, the device also has the on/off function.
Speed controllers help save energy and reduce noise if it is not necessary to operate the fans at maximum speed.

TECHNICAL SPECIFICATIONS:

• Power supply: 230 V – 50 Hz
• Maximum current: 1.8 A
• Maximum load connectable: 400 VA
• Dimensions 78*78*63 mm
• Weight: 250 g
• Installation protection rating (only from front panel): IP40
The required temperature for normal operation must be between 0°C and +35°C with a relative humidity not exceeding 80%.
