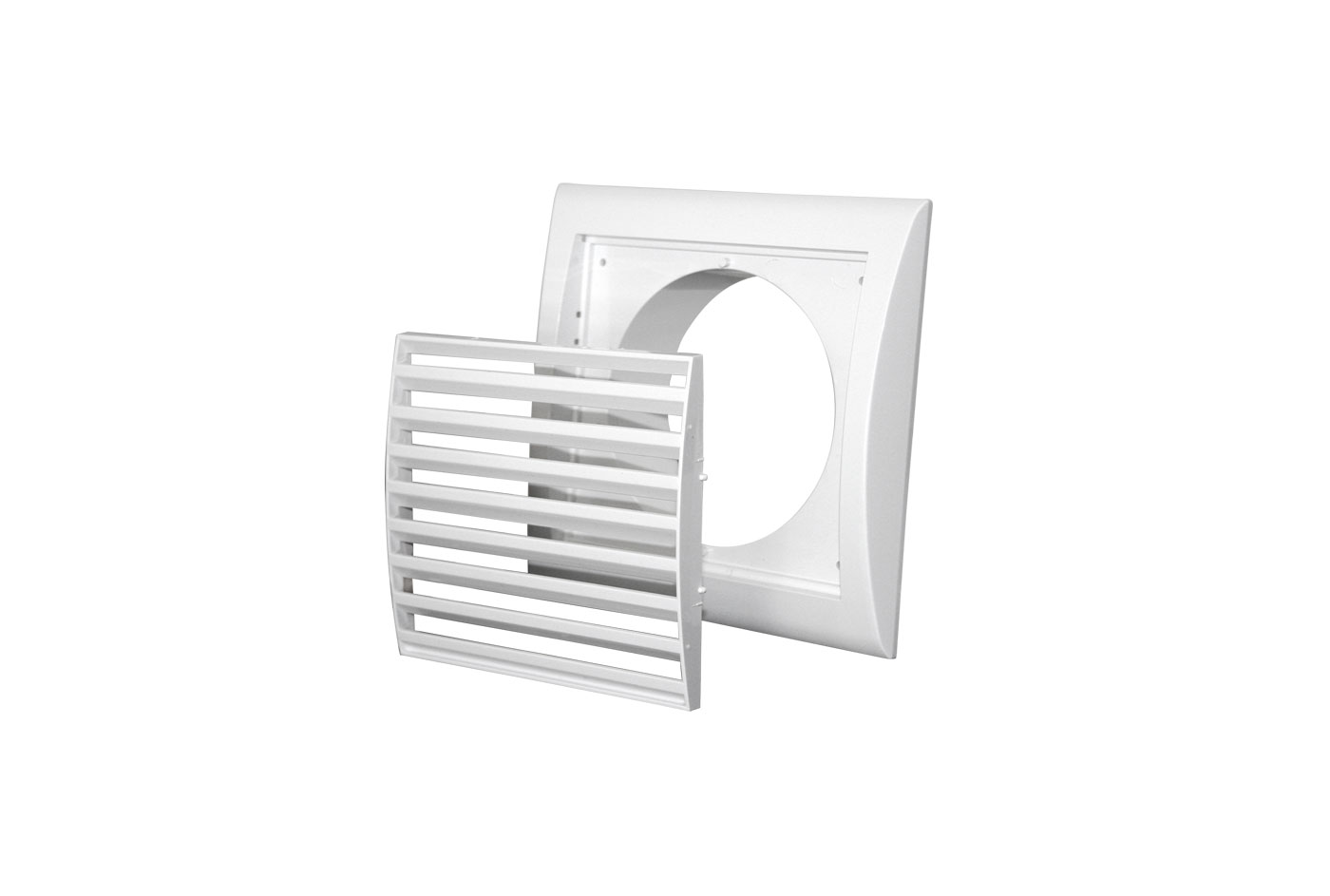

Removable rectangular grille with round flange in white ABS

Project Wind
Air diffusion

TECHNICAL SPECIFICATIONS:

• Made of ABS
• Ideal for both intake and delivery of air
• Wall- or ceiling-mounted
• Operating temperature -40°C to +40°C
• Back circular coupler

Models

Available Models (3)

11104270

REMOVABLE GRILLE IN WHITE ABS 150 x 150 CONNECTOR Ø 100

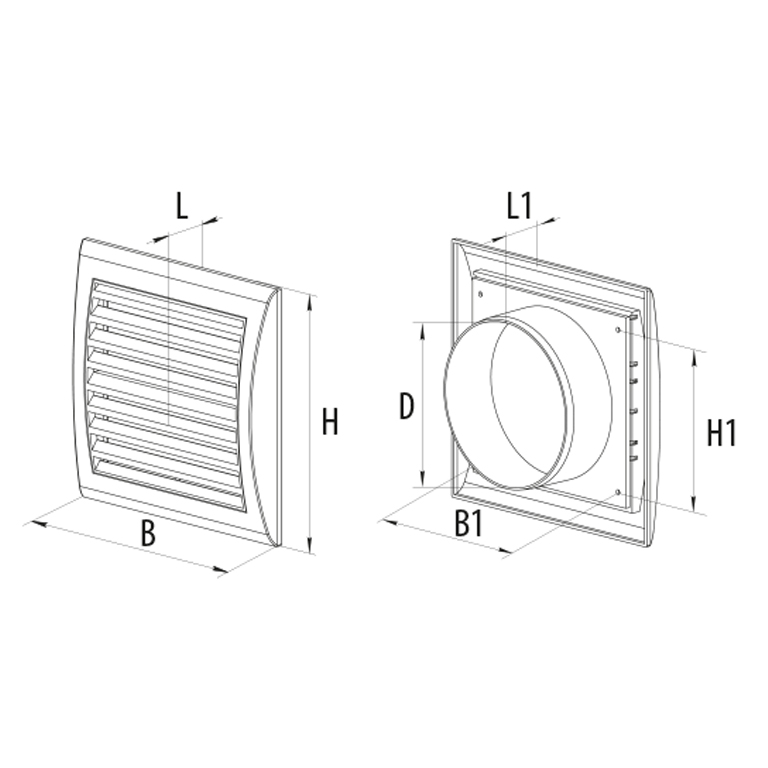

B [mm]	156
H [mm]	151
H1 [mm]	95
B1 [mm]	110
L [mm]	18
L1 [mm]	35
Ø D [mm]	100
AIR PASSAGE [cm²]	47

11104280

REMOVABLE GRILLE IN WHITE ABS 190 x 190 CONNECTOR Ø 125

B [mm]	193
H [mm]	188
H1 [mm]	135
B1 [mm]	151
L [mm]	18
L1 [mm]	35
Ø D [mm]	125
AIR PASSAGE [cm²]	81

11104290

REMOVABLE GRILLE IN WHITE ABS 190 x 190 CONNECTOR Ø 150

B [mm]	193
H [mm]	188
H1 [mm]	135
B1 [mm]	151
L [mm]	18
L1 [mm]	35
Ø D [mm]	150
AIR PASSAGE [cm²]	81
