Immagine IMG_30360010.jpg
View documentation

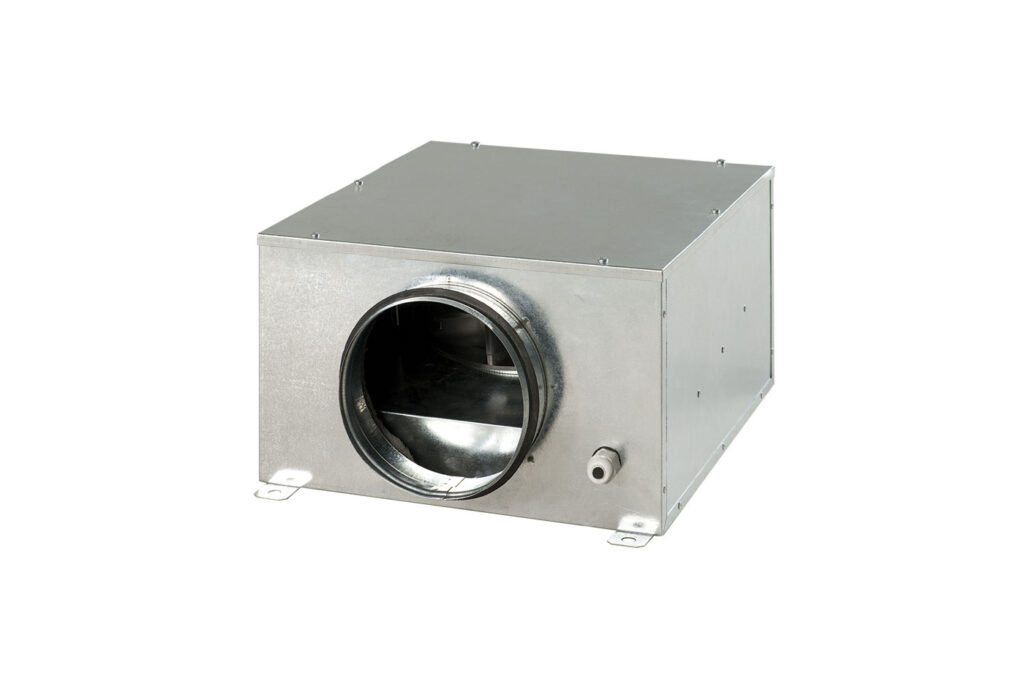

Simple flow ventilation box for MVHR system

  • Apply.co
  • Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Ideal for residential and commercial ventilation (public premises, bars, offices, etc.)
• For vertical and horizontal installation, wall / ceiling and floor
• Quiet and compact

Models

Available Models (6)

30360010

SIMPLE-FLOW VENT CASING FORMVHR SYSTEMS - MOD. 125

Ø D [mm] 124
B [mm] 322
B1 [mm] 280
H [mm] 192
L [mm] 447
L1 [mm] 380
L2 [mm] 350
WEIGHT [kg] 5,4

30360020

SIMPLE-FLOW VENT CASING FORMVHR SYSTEMS - MOD. 150

Ø D [mm] 149
B [mm] 352
B1 [mm] 310
H [mm] 212
L [mm] 477
L1 [mm] 410
L2 [mm] 380
WEIGHT [kg] 6,4

30360030

SIMPLE-FLOW VENT CASING FORMVHR SYSTEMS - MOD. 200

Ø D [mm] 199
B [mm] 432
B1 [mm] 368
H [mm] 287
L [mm] 588
L1 [mm] 506
L2 [mm] 480
WEIGHT [kg] 10,0

30360040

SIMPLE-FLOW VENT CASING FOR V.M.C. SYSTEMS - MOD. 200 PLUS

Ø D [mm] 199
B [mm] 432
B1 [mm] 368
H [mm] 287
L [mm] 588
L1 [mm] 506
L2 [mm] 480
WEIGHT [kg] 12,0

30360050

SIMPLE-FLOW VENT CASING FORMVHR SYSTEMS - MOD. 250

Ø D [mm] 249
B [mm] 432
B1 [mm] 368
H [mm] 287
L [mm] 588
L1 [mm] 506
L2 [mm] 480
WEIGHT [kg] 12,5

30360060

SIMPLE-FLOW VENT CASING FORMVHR SYSTEMS - MOD. 315

Ø D [mm] 314
B [mm] 502
B1 [mm] 438
H [mm] 397
L [mm] 588
L1 [mm] 506
L2 [mm] 480
WEIGHT [kg] 12,5

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_30360010.jpg

  • Technical Data Sheet

    it en fr de

  • User Manual

    it en
