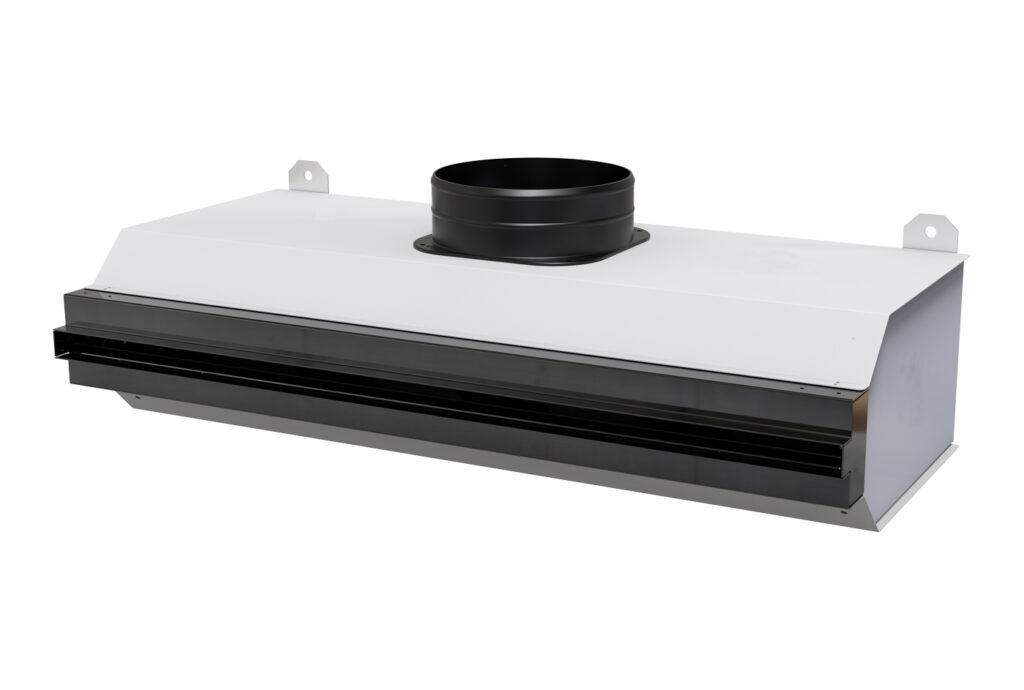

Single slit retractable linear diffuser with deflector and damper complete with insulated plenum
Project Wind- Air diffusion
This linear retractable diffuser combines functionality and design, harmoniously integrating into the environment.
The powder coated galvanized sheet ensures effective and long-lasting protection of the product.
Thanks to the sliding deflectors, the air direction can be flexibly adjusted, allowing optimal customization of climate comfort.
The presence of a closing damper adds an additional level of control, making the speaker versatile and suitable for different air conditioning needs.
TECHNICAL SPECIFICATIONS:
• Polyethylene coated galvanized sheet plenum with closed cells (sp.3mm)
• Diffuser in galvanized metal sheet, painted in the visible parts
• Sliding damper included
• Ideal for ceiling installations
• Suitable for air delivery and intake
• Air inlet clamps pre-assembled as per table
• Provision of standard MVHR conducted connections on the Plenum
• False ceiling mounting brackets included in delivery
• Compatible with PWC500027 continuity kit
• Noise level between 29 and 34 dB[A]
Models
Available Models (20)
PWD301360
LINEAR RETRACTING DIFFUSER 1 SLOT WITH DEFLECTOR AND DAMPER COMPLETE WITH INSULATED PLENUM L600x20mm WHITE
| DIMENSIONS A [mm] | 20 |
|---|---|
| DIMENSIONS L [mm] | 600 |
| NUMBER OF ATTACKS | 1 |
| Q [m³/h] | 165 |
Tailor-made solutions
Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.
Download
