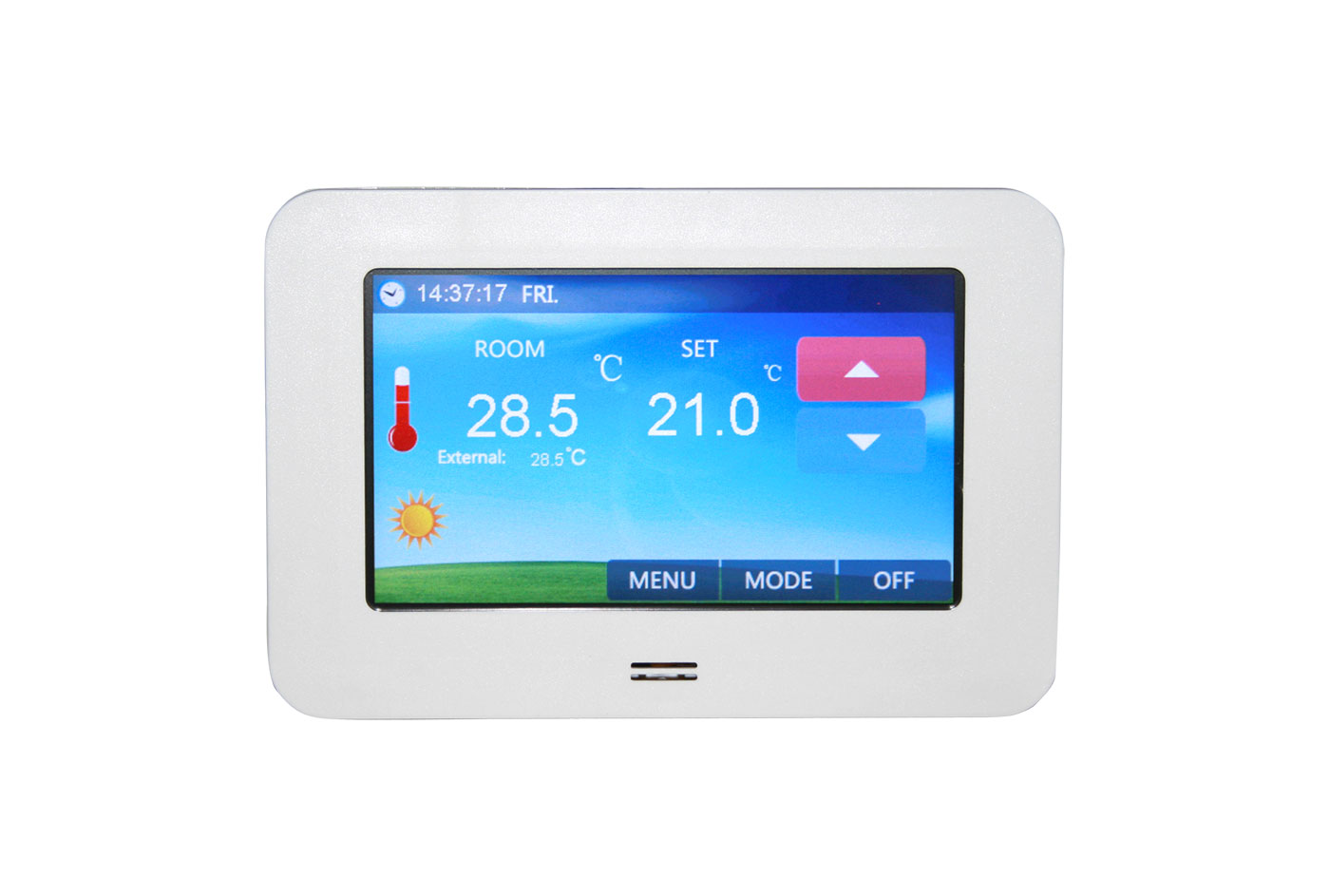

SMART-TOUCH PLUS Programmable chrono-thermostat for room with touch screen

Showgas

The programmable room thermostat with touch screen is easy to use and has clear graphics.
It allows use of the external probe and management of the boiler, a zone unit or the switching on and off of a fan coil through the 230 V – 50 Hz 16A / 3600 W output contact.
Using the menu and the various operating modes, it is possible to choose to use it manually or according to the program, to achieve the best comfort in any weather condition as required.
Light in colour, it is wall-mounted and nicely integrates into all environments.

TECHNICAL SPECIFICATIONS:

• Dimensions W 130 x H 87 x D 19 mm
• White frame
• 4.3 ”dual-intensity colour touchscreen display
• Installation in traditional built-in mounted electrical boxes (type 503)
• Power supply 230V – 50Hz
• Cable with probe for external temperature measurement supplied NTC L = 3000 mm
• Output contact 230 V – 50 Hz 16a/3600 W to activate a load
• Daily /weekly programming
• Day and time display
• Set point temperature range from +5°C to +35°C
• Set point temperature range from +5°C to +35°C
• Accuracy: ± 0.5°C
• Mode settings: Comfort, Economy, Party, Holiday, Programme.
