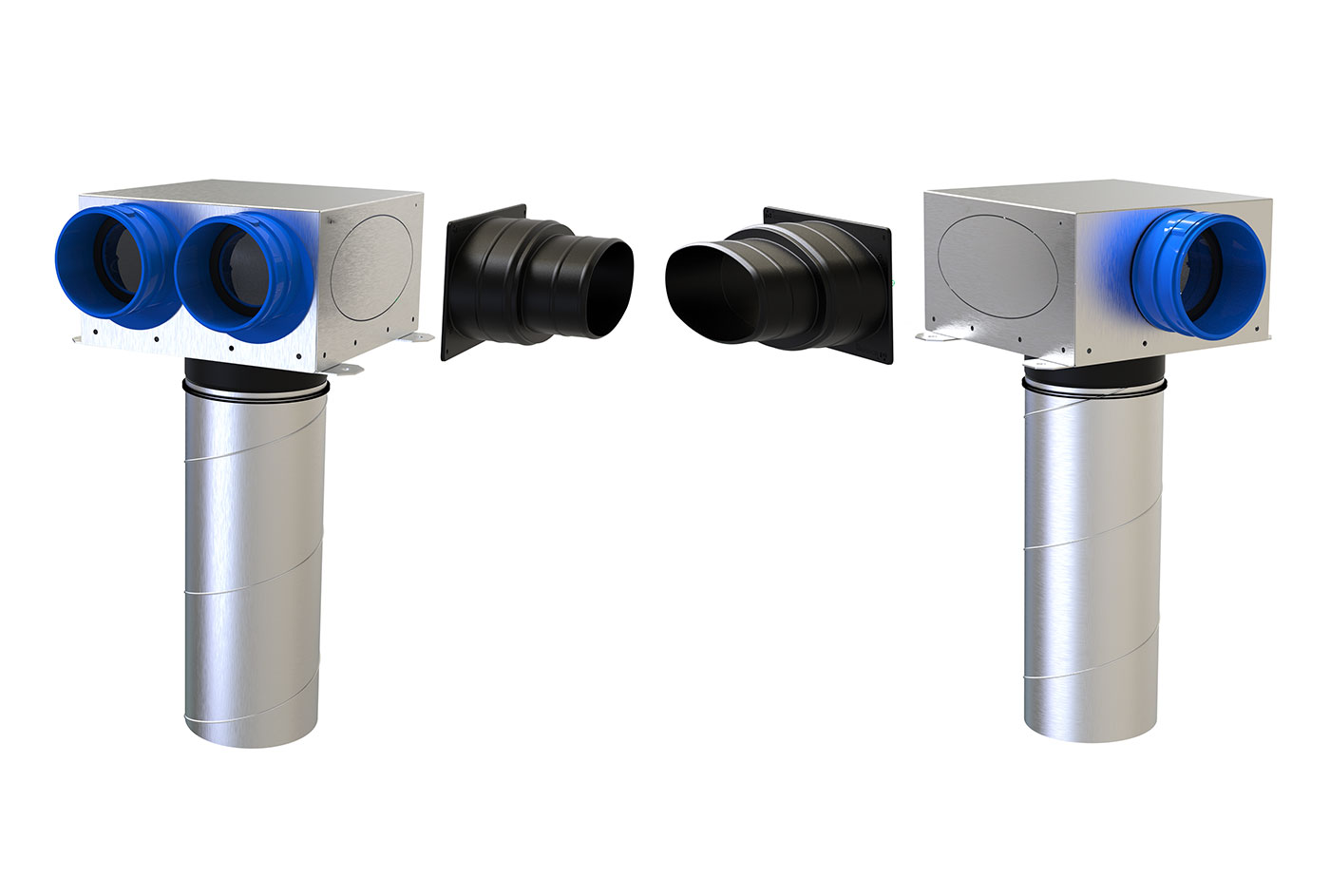

Immagine IMG_ACD600083.jpg
View documentation

Through ceiling plenum

  • Apply.co
  • Air treatment - MVHR

TECHNICAL SPECIFICATIONS:

• Made of electro-galvanised metal sheet
• Fastening brackets supplied
• Air intake collar Ø 125 / 150 supplied (not installed)
• Air output collar for MVHR duct
• External insulation in 3 mm thick polyethylene

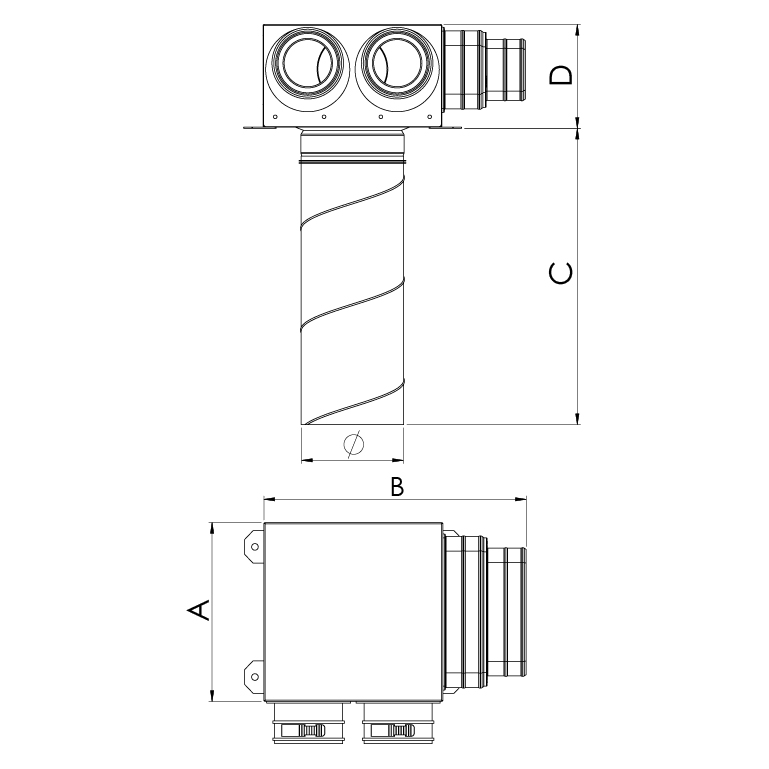

Models

Available Models (2)

ACD600083

PLÉNUM PREPARED FOR 1 OVAL ENTRANCE Ø125/150 + 1 ENTRANCE Ø92

A [mm] 220
B [mm] 325
C [mm] 330
D [mm] 130
Ø [mm] 125-150
OUTLET Ø [mm] No. 1 Ø 92

ACD600084

PLÉNUM PREPARED FOR 1 OVAL ENTRANCE Ø125/150 + 2 ENTRANCE Ø75

A [mm] 220
B [mm] 325
C [mm] 330
D [mm] 130
Ø [mm] 125-150
OUTLET Ø [mm] No. 2 Ø 72

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_ACD600083.jpg

  • Technical Data Sheet

    it en fr de
