ZEFIRO BOX White polystyrene plenum

Project Wind
Air diffusion

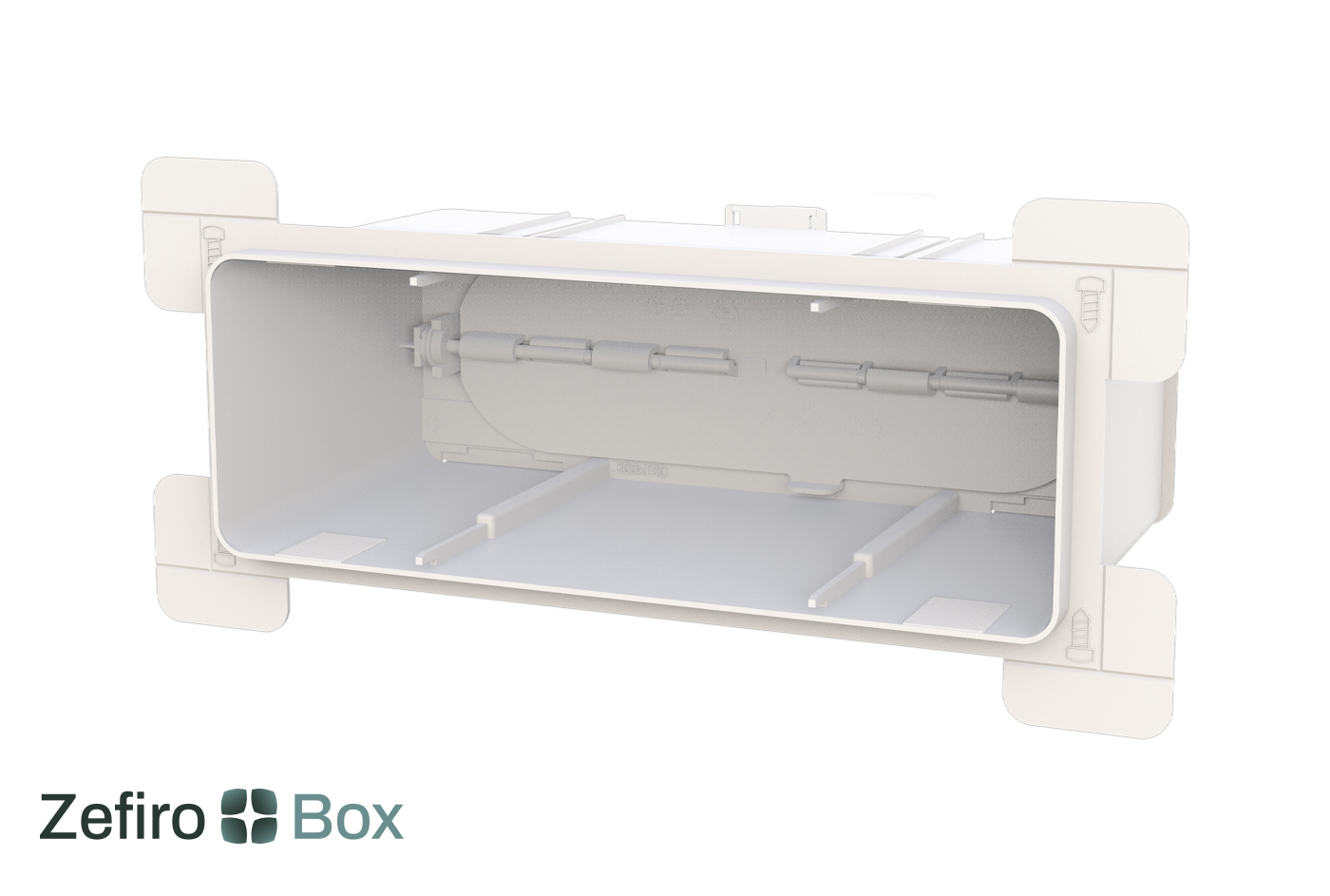

PS plastic plenum (polystyrene) with an adjustable oval rear connection, allowing the connection of flexible ducts of various diameters.
Butterfly balancing damper that allows airflow adjustment in the room.
On the four front corners, fins are arranged for fixing the plenum with screws on drywall or for resting on masonry.
Plastic clips allow the fastening of flexible tubes onto the provided attachment.
Accessorio: kit staffe telescopiche per fissaggio posteriore.

TECHNICAL SPECIFICATIONS:

• Made of PS (polystyrene) anti-condensation plastic
• Adjustable butterfly calibration damper
• Side clips for tube locking
• Telescopic rear collar for hoses of various diameters
• On the four outer sides, there are fins for fixing the plenum to plasterboard with screws or for resting it on brick walls.
• Included bubble level, except for models 200×100 and 300×100
• Fixing on plasterboard with self-threading screws on the 4 side flaps
• Side clips for tube locking
• Hook between the grille and plenum with polystyrene clips
• Fixing on both plasterboard and brick

Models

Available Models (11)

PWD402430

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 200x100

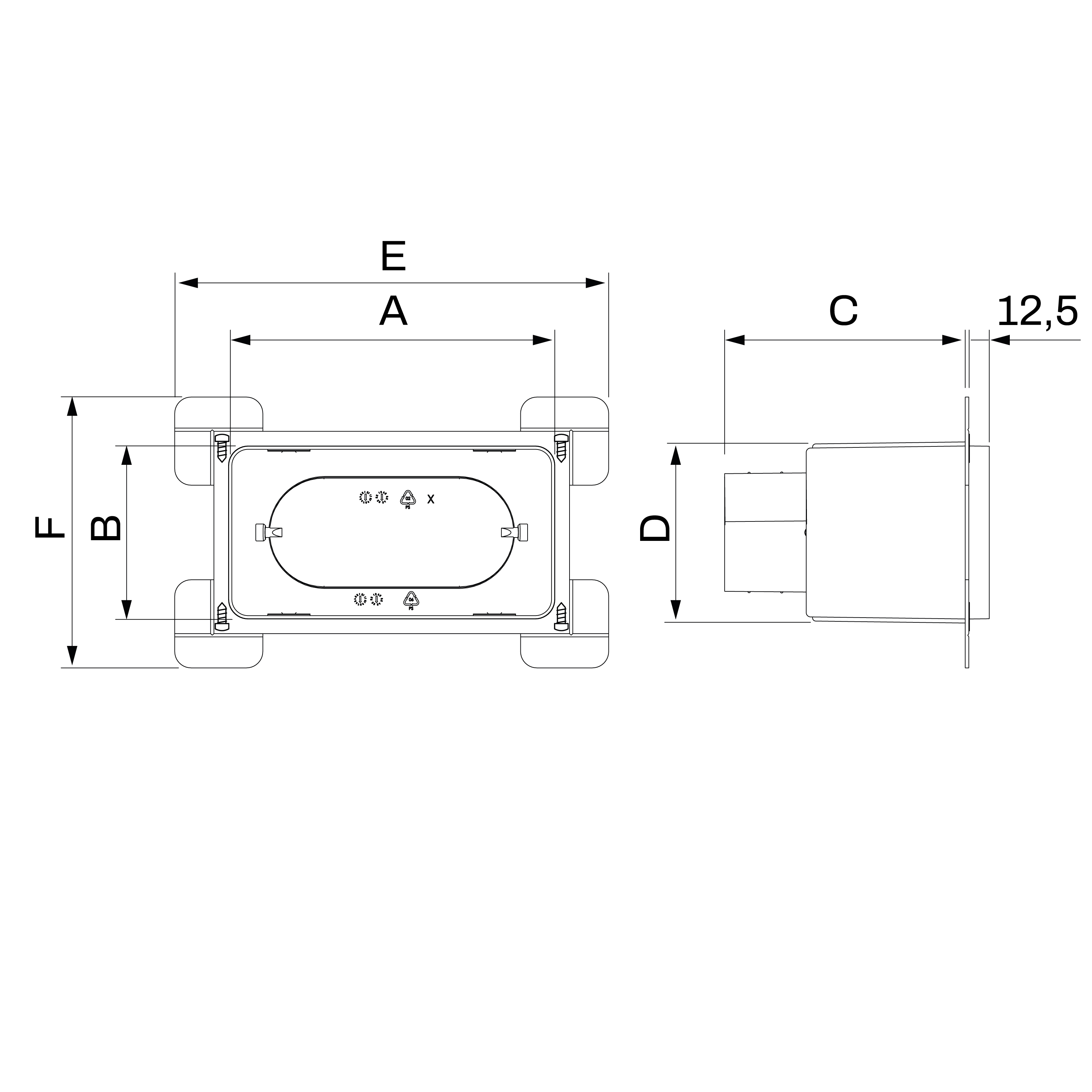

A [mm]	200
B [mm]	100
C [mm]	150
D [mm]	110
E [mm]	270
F [mm]	170
Ø PLENUM NECK	125

Specification items

SPECIFICATIONS
ZEFIRO BOX
white polystyrene plenum
PWD402430
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows balancing of air flows in the environment. On the 4 front corners, fins are provided for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts to the pre-arranged hook.
Spirit level included (excluding 200×100 and 300×100 mm models).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for 200×100 grille
BPAP
white anti-condensation ABS plastic supply / return grille
PWD100015
Supply or return grille made of white anti-UVA ABS plastic, complete with a frame molded in a single body.
The grille is equipped with a double row of adjustable fins with a 20 mm pitch, connected in groups by an integrated linkage that allows simultaneous movement of the fins for air flow regulation.
The grille can be coupled to the ABS plastic plenum model “ZEFIRO BOX” by clip fixing, ensuring quick, precise, and stable mounting.
Size: 200 x 100

PWD402431

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 300x100

A [mm]	300
B [mm]	100
C [mm]	190
D [mm]	120
E [mm]	370
F [mm]	170
Ø PLENUM NECK	150 - 160 - 180 - 200

Specification items

SPECIFICATIONS
ZEFIRO BOX
white polystyrene plenum
PWD402431
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows balancing of air flows in the environment. On the 4 front corners, fins are provided for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts to a pre-arranged attachment point.
Spirit level included (excluding 200×100 and 300×100 mm models).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for 300×100 diffuser

BPAP
white anti-condensation ABS plastic supply / return diffuser
PWD100016
Supply or return diffuser made of white anti-UVA ABS plastic, complete with a frame molded in a single body.
The diffuser is equipped with a double row of adjustable fins with a 20 mm pitch, connected in groups by an integrated linkage that allows simultaneous movement of the fins for air flow regulation.
The diffuser can be coupled to the “ZEFIRO BOX” model ABS plastic plenum by means of clip fixing, ensuring quick, precise, and stable assembly.
Size: 300 x 100

PWD402433

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 300x150

A [mm]	300
B [mm]	150
C [mm]	190
D [mm]	160
E [mm]	370
F [mm]	215
Ø PLENUM NECK	150 - 160 - 180 - 200

Specification items

SPECIFICATIONS
ZEFIRO BOX
white polystyrene plenum
PWD402433
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows the balancing of air flows in the environment. On the 4 front corners, there are fins for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts to the dedicated attachment point.
Spirit level included (excluding models 200×100 and 300×100 mm).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for 300×150 grille
BPAP
white anti-condensation ABS plastic supply / return grille
PWD100014
Supply or return grille made of white anti-UVA ABS plastic, complete with a frame molded in a single body.
The grille is equipped with a double row of adjustable fins with a 20 mm pitch, connected in groups by an integrated linkage that allows simultaneous movement of the fins for air flow regulation.
The grille can be coupled to the “ZEFIRO BOX” model ABS plastic plenum by clip fixing, ensuring quick, precise, and stable mounting.
Size: 300 x 150

PWD402573

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 300x200

A [mm]	300
B [mm]	200
C [mm]	190
D [mm]	210
E [mm]	370
F [mm]	265
Ø PLENUM NECK	150 - 160 - 180 - 200

PWD402432

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 400x100

A [mm]	400
B [mm]	100
C [mm]	190
D [mm]	120
E [mm]	470
F [mm]	170
Ø PLENUM NECK	150 - 160 - 180 - 200

Specification items

SPECIFICATIONS
ZEFIRO BOX
white polystyrene plenum
PWD402432
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows balancing of air flows in the environment. On the 4 front corners, fins are provided for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts to the pre-set attachment point.
Spirit level included (excluding 200×100 and 300×100 mm models).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for 400×100 grille
BPAP
white anti-condensation ABS plastic supply / return grille
PWD100034
Supply or return grille made of white anti-UVA ABS plastic, complete with a frame molded in a single body.
The grille is equipped with a double row of adjustable fins with a 20 mm pitch, connected in groups by an integrated linkage that allows simultaneous movement of the fins for air flow regulation.
The grille can be coupled to the “ZEFIRO BOX” model ABS plastic plenum by means of clip fixing, ensuring quick, precise, and stable assembly.
Size: 400 x 100

PWD402434

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 400x150

A [mm]	400
B [mm]	150
C [mm]	190
D [mm]	160
E [mm]	470
F [mm]	215
Ø PLENUM NECK	150 - 160 - 180 - 200

Specification items

SPECIFICATIONS
ZEFIRO BOX
white polystyrene plenum
PWD402434
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows balancing of air flows in the environment. On the 4 front corners, there are tabs for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts to a pre-arranged attachment point.
Spirit level included (excluding 200×100 and 300×100 mm models).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for 400×150 grille

BPAP
white anti-condensation ABS plastic supply / return grille
PWD100032
Supply or return grille made of white anti-UVA ABS plastic, complete with a molded frame in a single body.
The grille is equipped with a double row of adjustable blades with a 20 mm pitch, connected in groups by an integrated linkage that allows simultaneous movement of the blades for air flow regulation.
The grille can be coupled to the ABS plastic plenum model “ZEFIRO BOX” by clip fixing, ensuring quick, precise, and stable assembly.
Size: 400 x 150

PWD402572

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 400x200

A [mm]	400
B [mm]	200
C [mm]	190
D [mm]	210
E [mm]	470
F [mm]	265
Ø PLENUM NECK	150 - 160 - 180 - 200

PWD402571

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 500x100

A [mm]	500
B [mm]	100
C [mm]	190
D [mm]	120
E [mm]	570
F [mm]	170
Ø PLENUM NECK	150 - 160 - 180 - 200

PWD402440

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 500x150

A [mm]	500
B [mm]	150
C [mm]	190
D [mm]	160
E [mm]	570
F [mm]	215
Ø PLENUM NECK	150 - 160 - 180 - 200

Specification items

SPECIFICATIONS
ZEFIRO BOX
white polystyrene plenum
PWD402440
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows balancing of air flows in the environment. On the 4 front corners, there are fins for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts to a dedicated attachment point.
Spirit level included (excluding 200×100 and 300×100 mm models).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for 500×150 grille
BPAP
white anti-condensation ABS plastic supply / return grille
PWD100024
Supply or return grille made of white anti-UVA ABS plastic, complete with a frame molded in a single body.
The grille is equipped with a double row of adjustable blades with a 20 mm pitch, connected in groups by an integrated linkage that allows simultaneous movement of the blades for air flow regulation.
The grille can be coupled to the “ZEFIRO BOX” model ABS plastic plenum by means of clip fixing, ensuring quick, precise, and stable assembly.
Size: 500 x 150

PWD402441

PLENUM IN PS WITH REAR TELESCOPIC COLLAR FOR GRILLE 500x200

A [mm]	500
B [mm]	200
C [mm]	190
D [mm]	210
E [mm]	570
F [mm]	265
Ø PLENUM NECK	150 - 160 - 180 - 200

Specification items

SPECIFICATIONS
ZEFIRO BOX
plenum in white polystyrene
PWD402441
PS (polystyrene) plastic plenum equipped with an adjustable oval rear connection that allows the connection of flexible ducts of various diameters. Butterfly balancing damper that allows balancing of air flows in the environment. Mounting tabs are located on the 4 front corners for fixing the plenum with screws on plasterboard or for resting on masonry. Plastic clips allow the fixing of flexible ducts on a dedicated attachment point.
Spirit level included (excluding models 200×100 and 300×100 mm).
Accessory: telescopic bracket kit for rear fixing.
PS plenum with telescopic rear collar for grille 500×200
BPAP
white anti-condensation ABS plastic supply / return grille
PWD100025
Supply or return grille made of white anti-UVA ABS plastic, complete with a frame molded in a single body.
The grille is equipped with a double row of adjustable fins with a 20 mm pitch, connected in groups by means of an integrated linkage mechanism that allows simultaneous movement of the fins for air flow regulation.
The grille can be coupled to the “ZEFIRO BOX” model ABS plastic plenum using clips for fixing, ensuring quick, precise, and stable mounting.
Size: 500 x 200
