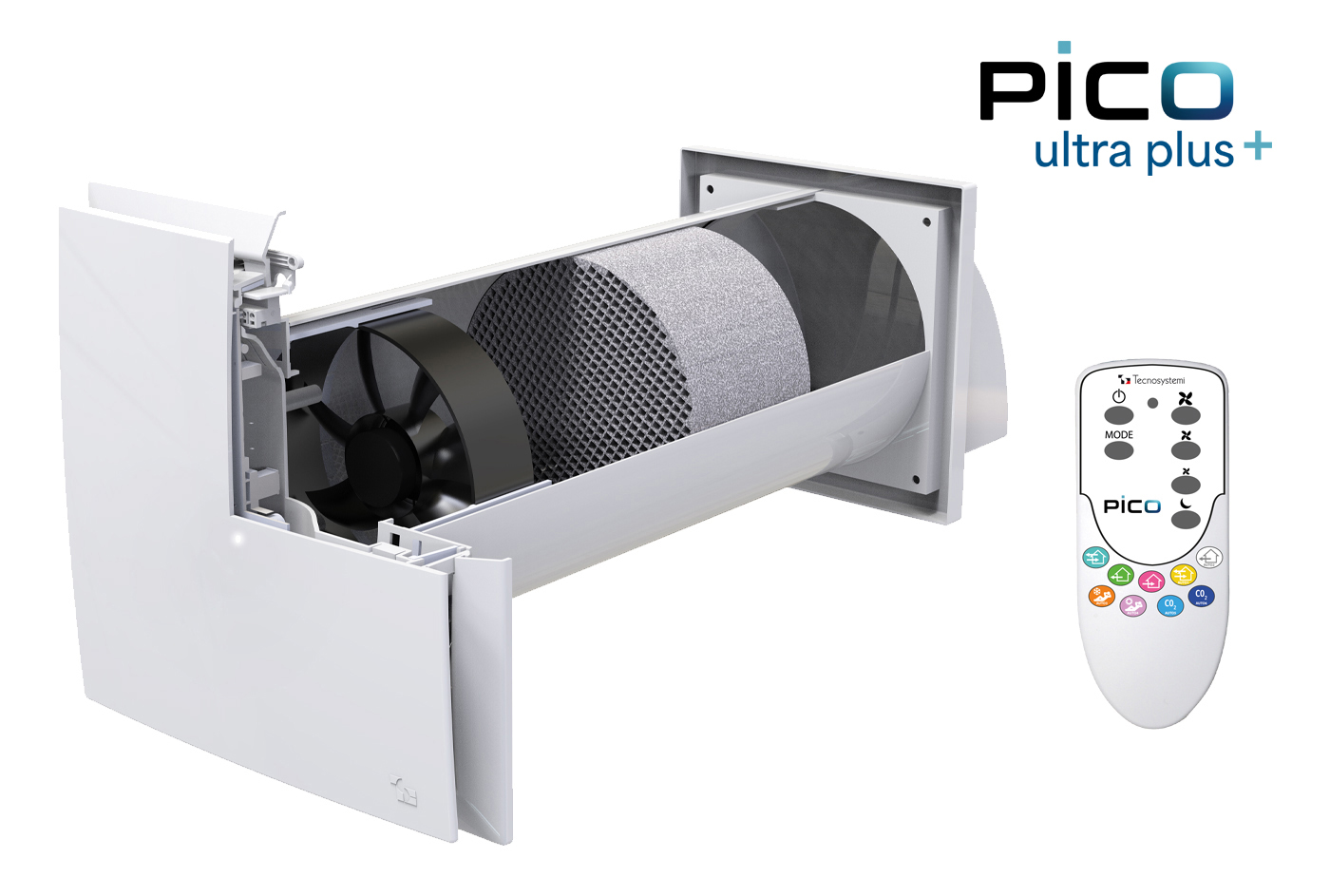

PICO ULTRA PLUS + Wall-mounted spot ventilation unit with heat recovery and timer programming

Apply.co
Air treatment - MVHR

PICO ULTRA PLUS+ is an innovative system designed to improve thermal comfort and air quality in residential environments.
PICO ULTRA PLUS+ is able to operate in both directions, which means it can be used to ventilate and recover the heat of the environment according to requirements. This allows a comfortable microclimate to be maintained in all seasons.
Energy Saving: This system is designed to maximize energy saving, thus reducing the costs associated with heating and cooling of indoor spaces. Thanks to its efficient operation, it contributes to reducing environmental impact.
Ventilazione Ottimizzata: PICO ULTRA PLUS+ garantisce una ventilazione efficace e un adeguato rinnovo d’aria all’interno dei locali, migliorando la qualità dell’aria e contribuendo al benessere degli occupanti.
High Efficiency: The vacuum extractor integrated in PICO ULTRA PLUS offers a high performance, with the extraction capacity that can reach up to 90%. This is made possible by the presence of a ceramic honeycomb heat exchanger, which maximizes thermal efficiency.
Easy Installation and Maintenance: PICO ULTRA PLUS is designed for easy installation and requires simple maintenance. This simplifies the management of the system, reducing maintenance costs over time.

Energy Class

TECHNICAL SPECIFICATIONS:

• Wall-mounted installation only, minimum wall thickness: 270 mm
• Front wall thickness 35 mm
• Available with flow rates from 30 to 60 m³/h
• Energy Class A
• Wi-fi control mode 2.4 GHz via APP: local or remote connection
• Integration Voice assistants and Google Home
• Comfort – CO₂ Threshold – Heat Recovery – Extraction – Supply – Humidity Threshold – Natural Recirculation – Free Cooling – Free Heating – Night Mode – Hourly and Weekly Programming
• Air quality indicators
• MASTER function / SLAVE: Possibility to connect in cascade via WIFI up to 4 slaves
• Slaves configurable in synchronous or asynchronous mode.
• Humidity threshold can be set to 3 different values: 40 – 50 – 60%
• Heat exchanger made of high-efficiency ceramic
• Built-in grade G2 filters
• Fan with low energy consumption, suitable for continuous operation
• Front RGB LED for settings display
• 4 speeds — min, medium, max and night mode — preset from the remote control and adjustable via the app
• Power supply 230 V – 50/60 Hz
• Electrical insulation Class II
• IP rating: IP22, IPX4 on the external side
• Mounting Hole Sections Ø103 – Ø128 – Ø153
• Automatic closing damper
• Ambient operating temperature: -10°C / +40°C (-10T40)
• Remote control included
