Immagine IMG_ACC100010.png
View documentation

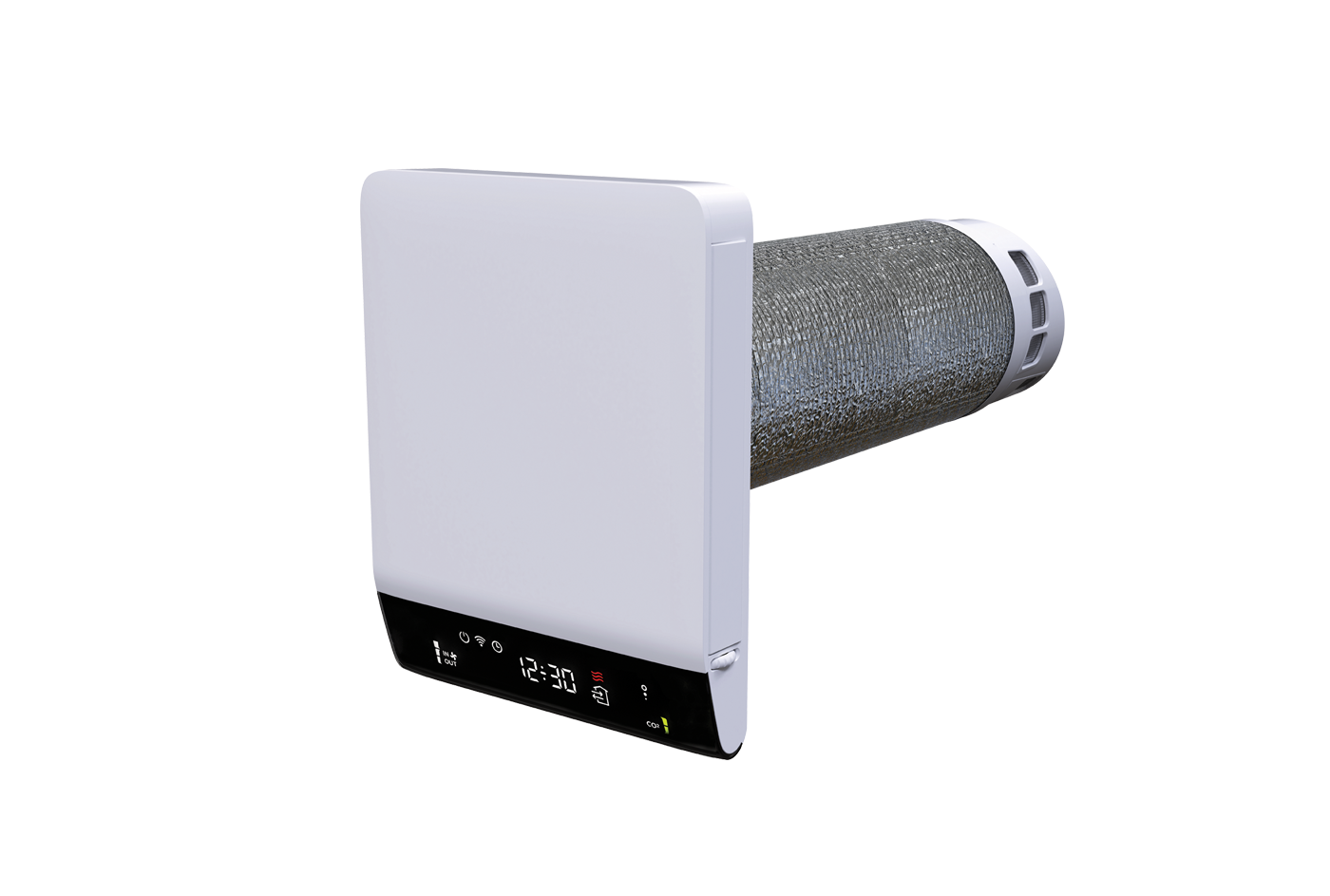

TS-DUAL FLOW Wall-mounted ventilation unit with double-flow heat exchanger

  • Apply.co
  • Air treatment - MVHR

The TS-Dual Flow heat recovery unit is a modern solution that combines balanced ventilation with heat recovery, an integrated electric heater, temperature and air quality sensors, and an easy-to-use interface.
Thanks to its compact design and multifunctionality, the device provides an effective way to improve indoor air quality while simultaneously reducing energy consumption.
The use of high-quality refined copper ensures significant thermal conductivity, tightness, and antiseptic properties.
The patented technology and know-how represented by the corrugated fins significantly increase the contact surface to maximize efficiency.
The automated production line of the heat recovery unit ensures stable quality.
The heat recovery unit is designed with low air resistance, reducing the electrical consumption of the fans and the noise level.

Energy Class

TECHNICAL SPECIFICATIONS:

• Simultaneously renews and extracts air through a single hole in the external wall
• High-efficiency copper heat exchanger with automatic frost protection system
• Electric heater
• EC fans individually adjustable to ensure balanced ventilation
• G3 filters for supply and exhaust air
• 4 temperature sensors
• Moisture sensor
• Remote control included
• Wall-mounted installation only, minimum wall thickness: 400 mm

Models

Available Models (1)

ACC100010

RECUPERATORE DI CALORE PUNTUALE TS-DUAL FLOW Ø200

Model ACC100010
A [mm]  307
B [mm]  245
C [mm]  45
Ød [mm]  206
L [mm]  550
L1 [mm]  650
Weight [kg] 5,5

Tailor-made solutions

Didn’t find the product model that suits your needs?
Contact us to find a solution tailored to you.

Download

Documentation

Immagine IMG_ACC100010.png
  • Technical Data Sheet

    it en fr de
  • Manuale installazione

    it en fr de
